Volvo FM7 Construction machine

Seller's description

The Volvo FM7 OB Van is a fully autonomous 9 camera mobile production unit engineered for live sports, entertainment, and remote broadcast operations. Built around a Grass Valley Kula 36-input 2ME switcher, Grass Valley K2 Summit 3G replay system, 9 Grass Valley camera chains, and a Riedel C44 matrix intercom, this truck delivers complete signal processing, multi-channel recording, and low-latency communication.
Certified Pre-owned Equipment and Engagements
Expertise and Guarantee : inspected and certified by our technical lab | 3-month warranty
Trade-In and Financing : sell your existing equipment fleet (cameras, lenses, tripods) to fund this investment
Detailed Kit Contents :
Audio
1x Yamaha LS9 32ch mixer
1x Junger V08 + desk unit mixer
1x BEL 7000 series delay processor
1x Sirus MP2324 audio processor
1x TC Electronic M Stereo audio metering
1x Vonyx 2 ch media player
1x Tascam SD20 4ch recorder
2x Genelec 8010 speakers
2x Vulcano speaker
1x Vulcano sub
1x Milenium dimode stereo audio DI
1x Lenovo Thinkcenter PC
1x Yamaha ip control software
1x Spot on software
1x Sony pro HD 55 inch SDI monitor
1x Philips HD monitor
2x Blackmagic 4ch / 8ch digital audio embedder
1x Riedel performer 2ch panel intercom
1x Riedel performer 2ch beltpack intercom
1x BTS CP328 router panel
1x Elgato streamdeck pc control
1x S et W Router panel router control
Production
1x GV Kula 19inch panel vision mixer
1x Riedel performer 4ch panel intercom
5x Riedel performer 2ch beltpack intercom
1x BTS CP328 router panel
4x Sony pro HD 55 inch SDI monitor
2x Sony HD 24 inch monitor
2x Pc Lenovo monitor
1x Beetronic touch for Kula monitor
2x Fostex 6301 speakers
1x GV Dyno replay controller
1x RT, OBS, UNO CG
Shading / ENG
9x GV OCP 400 camera control
1x GV MCP 450 camera master control
1x Leader LV5750 scope
1x Sony pro HD 55 inch SDI monitor
1x Beetronic HD 24 inch monitor
1x Lenovo pc monitor monitor
1x GV CP300 router panel
1x Riedel performer 4ch panel intercom
Rack
8x GV LDK-4502 triax ccu
1x HP CG computer pc
1x Blackmagic webpresenter usb streaming
1x Aja Colorbox HDR/SDR color processor
1x GV Icontrol main server server
1x Kula frame 36in/18out 2me vision mixer
1x GV Concerto 64x64 + controller router
1x GV T2 recorder/player
1x Blackmagic Hyperdeck 4K pro recorder/player
1x Blackmagic Teranex 2D 2K video converter
1x GV K2 Summit 3G repaly server
1x Ambient ACC-501 master clock
1x Riedel C44 frame intercom
1x Avitech 4 split sdi multiviewer
3x Aja Kipro recorder/player
1x Blackmagic Sync generator SPG
1x Extron 1 to 16 SPG distribution distributie
1x GV Denseté 3 frame gleuware
1x XVP-3901 (Cards GV Denseté 3 frame)
2x KMV-3901 (Cards GV Denseté 3 frame)
1x SPG-1801 (Cards GV Denseté 3 frame)
5x HDA-1801 (Cards GV Denseté 3 frame)
2x LGK-3901 (Cards GV Denseté 3 frame)
1x Viltrox SDI HD 9inch monitor
3x 24x patch panel patch SDI
1x 24x xlr patch audio
1x 2x24 jack patch audio
1x Blackmagic 4ch / 8ch digital audio deembedder
1x 24 port Linksys network router netwerk
1x 4G router netwerk
1x 8ch fiber audio converter audio interface
1x 4ch fiber audio converter audio interface
2x 1ch fiber sdi converter video
Extra support / camera
8x LDK 8000 camera
1x LDX C80 camera
2x Manfrotto 15kg tripod
2x Sachtler pomp 20kg tripod
1x Heavy duty for boxlens tripod
3x Fujinon 20xSD lens
1x Fujinon 22xSD lens
3x Canon 18xSD lens
3x Canon WA 13xSD lens
1x Fujinon BOX 20xSD lens
1x Fiber audio, sdi, ethernet box stagebox
1x 4ch talent in ear system in ears
4x Wireless Sennheiser microphone
4x Panasonic camera microphone microphone
1x 6m track dolly
6x 100m triax drum triax
2x 150m triax drum triax
5x 90m triax drum triax
2x Sony BCR ptz+ controller ptz
2x Panasonic HD field 19inch monitor
1x 100m sdi drum sdi
4x 100m drum ethernet
1x 50m drum ethernet
2x 50m drum sdi
1x 25m drum sdi
1x 2ch RTS BTR-800 intercom
1x Proaim hothead 10kg hothead
1x 150m 8 core drum fiber
4x Blackmagic cross converter converters
1x GV large lens adapter lens adapter
6x GV Ruige camera monitor viewfinder
2x GV 5302 viewfinder viewfinder
6x Sony VCT-14 tripod plate
Note : This listing highlights the core infrastructure and main production accessories. The vehicle is supplied complete with all peripheral accessories and is fully ready for immediate operational deployment. Additional minor peripheral units, cables, and adapters not explicitly listed above are included.
Volvo FM7 OB Van Key Highlights
High-density switching : grass valley kula 2me switcher frame delivering 36 sdi inputs and 18 outputs
9-camera shading : complete vision engineering desk featuring 9 ocp 400 panels and mcp 450 master control
Integrated replay : gv k2 summit 3g replay server with dyno controller for immediate slow-motion acquisition
Isolated audio cabin : dedicated audio engineering room equipped with 32-channel yamaha ls9 and jünger processing
Matrix communications : riedel c44 matrix frame providing seamless multi-channel talkback across all technical bays
HDR color management : aja colorbox inline processor providing real-time sdr to hdr color mapping and 3d lut application
Technical Specifications
Signal Processing and Codecs
Vision Switching Architecture : Grass Valley Kula 2ME (36 inputs / 18 outputs SDI)
Replay and Ingest System : Grass Valley K2 Summit 3G server with GV Dyno controller
Color Space Processing : AJA ColorBox real-time 3D LUT HDR and SDR converter
Modular Signal Infrastructure : Grass Valley Densité 3 frame with XVP-3901 frame sync, KMV-3901 multiviewer, and LGK-3901 keyer cards
Master Clock and Sync : Ambient ACC-501 master clock with Blackmagic sync generator and Extron 1 to 16 distribution
Recording Formats : Apple ProRes, Avid DNxHD, and uncompressed 10-bit via Blackmagic HyperDeck 4K Pro, GV T2, and AJA KiPro
Inputs and Outputs (I/O)
Main Routing Matrix : Grass Valley Concerto 64x64 SDI video matrix
Audio Console Capacity : 32 physical mic and line inputs via Yamaha LS9 digital mixing console
Camera Base Station Connections : 8x Triax CCU lines via Grass Valley LDK-4502 base stations
Talkback Infrastructure : Riedel C44 frame driving 4-channel and 2-channel panels and beltpacks
Patching Bay : 3x 24x SDI video patch panels, 1x 24x XLR audio patch panel, and 1x 2x24 Jack audio patch panel
Fiber Optic Connectivity : 8-channel fiber audio interface, 4-channel fiber audio interface, and 2x 1-channel SDI fiber converters
Electrical and Physical Specifications
Power Supply Requirements : Unknown
Vehicle Operating Dimensions : 12m length x 3.5m operational width
Chassis Model : Volvo FM7 heavy transport truck
Vehicle Mileage : Unknown
Gross Vehicle Weight : Unknown
Customer Questions
Do you offer trade-in services for my existing equipment?
Absolutely. VIDEO BROKERS buys or trades in your professional equipment (cameras, lenses, tripods) and any other new or used broadcast gear.
How many physical camera chains can be simultaneously operated from the shading station?
The vehicle is fully wired and fitted with 8 Grass Valley LDK-4502 Triax CCUs, 9 OCP 400 paint panels, and 1 MCP 450 master controller to manage 9 active camera chains.
How is the workspace partitioned inside the truck body?
The interior layout includes four distinct operational compartments: Vision Shading/ENG at the rear, a central Production and Directing desk, a dedicated Replay/CG position, and an acoustically isolated Audio Engineering room at the front.
Is the truck equipped for immediate live event broadcasting?
Yes, all core video routing, audio mixing, signal conversion, and matrix intercom systems are fully wired, tested, and supplied ready for immediate field deployment.

Specifications

Category	Miscellaneous construction machines
worked hours
hours under power
state	as-is, where-is
At local norms	---------
status
Last availability date	24/10/2026
Product id	P261024016
Language	Language Строителна машина Volvo FM7 Stavební stroj Volvo FM7 Volvo FM7 Byggemaskine Volvo FM7 Baumaschine Μηχανή κατασκευής Volvo FM7 Volvo FM7 Construction machine Máquina de construcción Volvo FM7 Engin de chantier Volvo FM7 Građevinski stroj Volvo FM7 Volvo FM7 Építőipari gép Macchina da costruzione Volvo FM7 Volvo FM7 Statybinė mašina Volvo FM7 Bouwmachine Maszyna budowlana Volvo FM7 Máquina de construção Volvo FM7 Mașini de construcții Volvo FM7 Volvo FM7 Строительная машина Građevinska mašina Volvo FM7 Volvo FM7 Byggmaskin İnşaat makinesi Volvo FM7

Automatic description (AI-Generated)

Volvo FM7 outside broadcast (OB) van, with a stated vehicle length of 12,000 mm. The vehicle is configured as a mobile production facility for broadcast and live-event work. Its listed equipment includes Grass Valley vision switching, replay, camera shading and routing systems; a Riedel intercom matrix; and audio mixing and processing equipment, including a Yamaha LS9 console and Jünger processing. Additional listed rack equipment includes recording and playback units, signal conversion and processing equipment, multiviewing, sync and clock systems, patch panels, and network and fiber interfaces.

The production and audio work areas are equipped with consoles, control panels, monitors and loudspeakers. The listed camera and field equipment includes Grass Valley camera systems and control units, Fujinon and Canon lenses, tripods, viewfinders, monitors, microphones, intercom equipment, and triax, SDI, Ethernet and fiber cabling. Other listed accessories include a dolly, a hothead, PTZ cameras with a controller, and recording and conversion equipment.

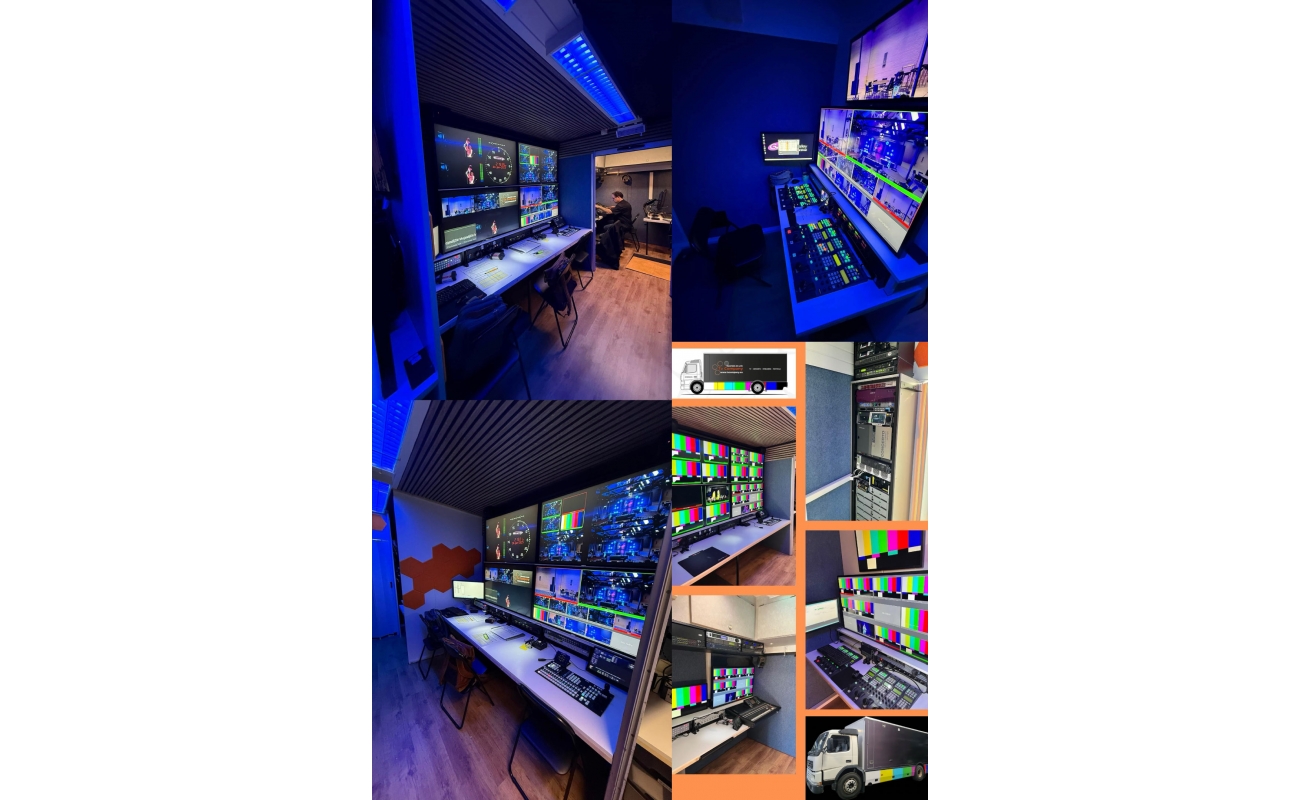

The interior includes a long control-room workstation with numerous illuminated buttons, knobs and control panels. Large displays show multiview video feeds and color test bars. An equipment rack with electronic units is also present. The listing describes separate areas for production, camera shading and audio operations, along with replay and graphics positions.

The equipment inventory and configuration are based on the seller-provided description; individual items and their condition should not be inferred beyond the details stated. No year of manufacture is specified.
