Contact us to receive an offer.
| Manufacturer | VICTOR |
|---|---|
| Model | V TURN-36 |
| Year | 1998 |
| Location | Italy
|
| Category | Lathes - CNC lathes |
| Turning Ø | 320 mm |
| Length between centers | 890 mm |
| Type of CNC | FANUC OT-C |
| Spindle taper | ASA A2-8 |
| Spindle bore | 90 mm |
| Number of tools on turret | 10 |
| Turning speed | 2500 rpm |
| Spindle motor power | 22.37136 kW |
| Tailstock | yes |
| Bar feeder | no |
| Weight | 9000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 24/10/2026 |
| Product id | P230516138 |
| Language |
VICTOR V TURN-36
Soustruh cnc VICTOR V TURN-36
VICTOR V TURN-36
VICTOR V TURN-36 Drehmaschine CNC
VICTOR V TURN-36
VICTOR V TURN-36 cnc lathe
Torno cnc VICTOR V TURN-36
Tour cnc VICTOR V TURN-36
VICTOR V TURN-36
VICTOR V TURN-36
Tornio cnc VICTOR V TURN-36
VICTOR V TURN-36
VICTOR V TURN-36
Tokarka CNC VICTOR V TURN-36
VICTOR V TURN-36
VICTOR V TURN-36
VICTOR V TURN-36 Токарный станок с ЧПУ
VICTOR V TURN-36
VICTOR V TURN-36
Cnc torna VICTOR V TURN-36
|
The Victor V TURN-36 is a CNC lathe manufactured in 1998, designed for precision turning operations. It features a maximum turning diameter of 320 mm and a length between centers of 890 mm, making it suitable for medium-sized workpieces. The spindle bore measures 90 mm, allowing for bar stock machining. The machine is equipped with a robust spindle motor delivering approximately 22.37 kW of power and can reach spindle speeds up to 2500 rpm, enabling efficient and versatile machining processes.

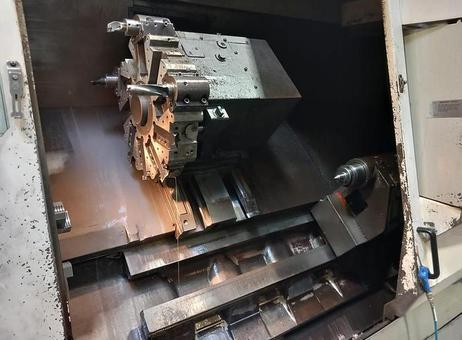

This lathe includes a 10-position tool turret capable of holding multiple cutting tools, facilitating complex and multi-step operations without manual tool changes. The machine's X and Z axis strokes are 30 to 275 mm and 855 mm respectively, providing ample travel for various machining tasks.

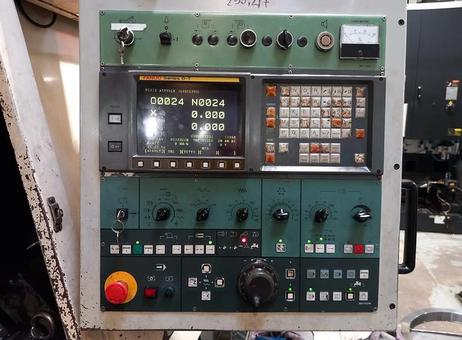

The CNC control system is a FANUC OT-C, known for its reliability and user-friendly interface. The control panel is mounted on the machine door and features a display screen with operational data, multiple buttons, knobs, a key switch, status indicators, and an emergency stop button for enhanced safety.

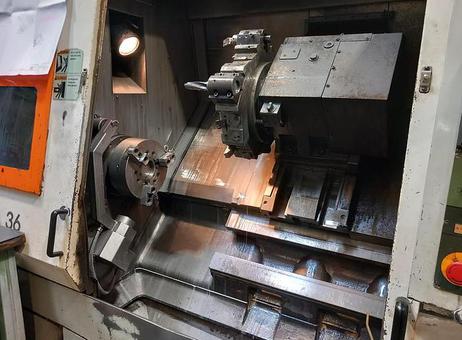

The lathe has an enclosed work area with interior lighting to illuminate the machining zone, ensuring better visibility during operation. A chuck is mounted inside for securely holding workpieces, and a tailstock or steady rest is available to support longer workpieces during machining.

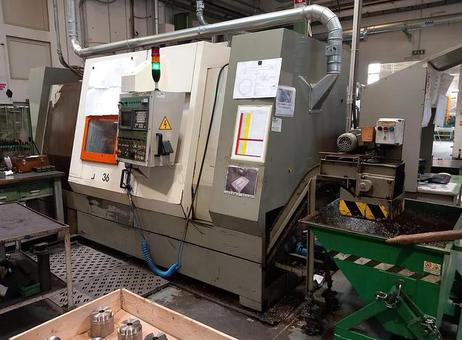

Additional features include a chip conveyor system attached to the right side of the machine with a green chip bin below, which helps manage metal shavings and maintain cleanliness. Ventilation or exhaust pipes are connected to the top for air or coolant management. The machine weighs approximately 9000 kg and shows signs of use with some dirt and wear marks but appears structurally intact and well-maintained.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Maximum diameter mm. 650
Turning diameter mm. 320
Center distance mm. 890
Turret 10 positions
Spindle diam.mm. 400
cnc FANUC OT-C
CE marking Yes
Accessories Tailstock, Evaquator, Presetting
Machine weight kg 9000
Stroke X mm. 30 - 275
Z stroke mm. 855
Spindle revolutions rpm. 9 - 2500
Bar passage diam.mm. 90
Engine power hp 30/35
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
