| Manufacturer | Uteco |
|---|---|
| Model | Crystal 808 |
| Year | 2019 |
| Location | Germany
|
The Uteco Crystal 808 is a flexographic printing machine manufactured in 2019, designed for high-quality printing on a variety of flexible packaging materials. It features a maximum printing width of 1500 mm and supports a print repeat length ranging from 400 mm to 850 mm. The machine operates at a maximum speed of 500 meters per minute and is compatible with solvent-based inks.
This model is suitable for printing on several film types, including polypropylene (PP) with thicknesses from 10 µm to 200 µm, biaxially oriented polypropylene (BOPP) from 10 µm to 60 µm, low-density polyethylene (LDPE) from 20 µm to 200 µm, cast polypropylene (CPP) from 20 µm to 70 µm, high-density polyethylene (HDPE) from 15 µm to 150 µm, polyethylene terephthalate (PET) from 12 µm to 50 µm, and oriented polyamide (OPA) from 15 µm to 50 µm.
The machine is equipped with a turret unwinder (TAU-N 1000) and turret rewinder (TAR-N 1000), allowing for efficient material handling. The maximum reel diameters vary depending on the shaft and configuration, with up to 1000 mm on shaft 1 of the unwinder and rewinder. Pneumatic dancing rollers and expansible shafts with inner diameters of 76 mm and 152 mm are incorporated to ensure stable web tension and handling. Additionally, antistatic bars (ACE) are included to reduce static issues during printing.

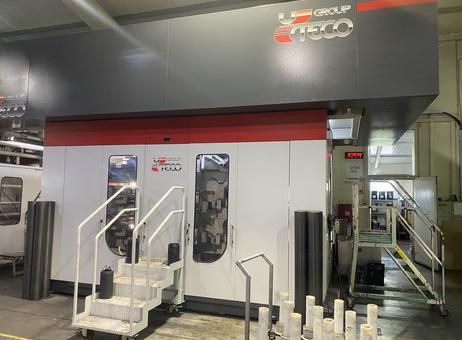

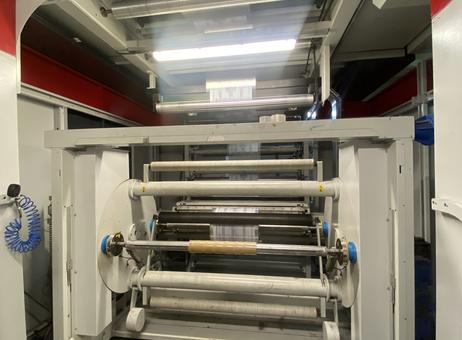

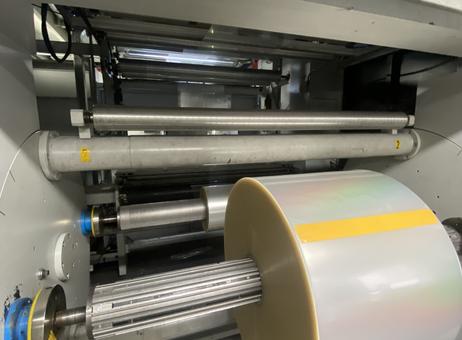

From the images, the machine appears to be a large enclosed flexo printing unit branded with TECO Group on the top and front panels. It has multiple transparent windows on the front doors, providing visibility to internal components, and includes a white metal stair with handrails on wheels for safe access to the interior. Two large cylindrical rolls are positioned vertically on the right side of the machine, and there is a roll of transparent film mounted horizontally inside. Several metal rollers and shafts are visible, indicating the complex internal web handling system. The exterior looks clean and well-maintained without visible damage, though some minor wear and paint chipping are noted near the rollers.
The machine requires a 400V power supply for operation. This Uteco Crystal 808 offers robust capabilities for flexible packaging printing applications, combining versatility in material compatibility with advanced web handling features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max. printing width 1500 mm
Print repeat length (min. – max.) 400 – 850 mm
Machine speed
Type of inks: 500 m/min max
Solvent based inks
Material to be printed
PP 10 um-200 µm
BOPP 10 um-60 µm
LDPE 20 um-200 µm
CPP 20 um-70 µm
HDPE 15 um-150 µm
PET 12 um-50 µm
OPA 15 um-50 µm
Machine power supply 400V
Turret unwinder TAU-N 1000
Max reel diametr shaft 1 - 1000 mm
Max reel diametr shaft 2 - 640 mm ( with max reel on shaft 1)
Max reel diametr with 2 alike reels on shafts 1 and 2 – 810 mm
Pneumatic dancing roller
Turret rewinder TAR-N 1000
Max reel diametr shaft 1 - 1000 mm
Max reel diametr shaft 2 - 510 mm ( with max reel on shaft 1)
Max reel diametr with 2 alike reels on shafts 1 and 2 – 740 mm
Pneumatic expansible shaft , I.D. 76 mm, 152 mm
Antistatic bars ACE
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
