Price on request
View priceContact us to receive an offer.
| Option to cut tubes | no |
| CNC | no |
| CNC type | |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | Not specified |
| At local norms | --------- |
| status | |
| Last availability date | 22/12/2025 |
For sale is a Unimach LC 3015-2 Pro-M metal laser cutting machine, manufactured in 2013. This industrial-grade machine features a large working area of 3000 x 1500 mm, suitable for processing sizable metal sheets. It includes two replaceable portal-type hydraulic tables, each with a working area of 1500 x 3000 mm, designed to support a maximum distributed load of 1000 kg, facilitating efficient handling of heavy materials.
The machine offers high precision with positioning accuracy of ±0.05 mm per meter and repeatability of ±0.005 mm per meter along the X, Y, and Z axes. It provides working displacements of 3000 mm (X axis), 1500 mm (Y axis), and 100 mm (Z axis). Rapid movement speeds reach up to 150 m/min synchronously on the X and Y axes, and 50 m/min on the Z axis, with working acceleration up to 2g.
Equipped with linear guides on all axes and servo drives featuring feedback sensors, the machine ensures smooth and accurate operation. Its welded structure is milled for stability and precision. The laser source is a Ytterbium fiber laser YLR-2000 with a wavelength of 1070 nm and a maximum radiation output power of 2000W, integrated into the main installation.
Additional features include a zoned smoke removal system that adjusts exhaust zones based on cutter position, a water/air cooling system, and a comprehensive automation kit. The laser optical head includes electro-mechanical lens drive, CNC focal length control with automatic focus selection from a material library, and quick cartridge replacement for lenses and protective plates. It supports focal length adjustments from -20 to +20 mm, allowing changes during operation.
The UNIMACH CNC system provides control and monitoring with Ethernet and USB connectivity. Visually, the machine is a large industrial laser cutter with a metal bed and spiked surface for material placement. The main cutting area includes protective covers and handles on the front panel. The machine appears used but in good condition, with some dust around the floor area.
Overall dimensions are approximately 9000 mm in length, 3200 mm in width, and 2600 mm in height. This robust and precise laser cutting system is suitable for various metal fabrication applications requiring high accuracy and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Metal laser cutting machine for sale. Inspection of the city of Krasnoyarsk. The set includes 2 replaceable portal-type hydraulic tables.
Operating range
Laser processing area, mm: 3000x1500;
Maximum distributed load on the table, kg: 1000;
Machine accuracy parameters (with feedback sensors)
Positioning accuracy along the X, Y, Z axes mm/m: ±0.05;
Positioning repeatability along the X, Y, Z axes, mm/m: ±0.005;
Movements and feeds
Working displacement along the X axis, mm: 3000;
Working displacement along the Y axis, mm: 1500;
Working movement along the Z axis, mm: 100;
Speed of rapid movements along the X, Y axes, m/min (synchronously): 150;
Speed of fast movements along the Z axis, m/min: 50;
Working acceleration: up to 2g;
Linear axes
X-axis: linear drive;
Y axis: linear actuator;
Z axis: servo drive, precision rack and pinion with mechanical backlash compensation;
Overall dimensions and weight of the machine (no more)*
Length, mm: 9000; Width, mm: 3200; Height, mm: 2600;
Basic machine equipment and design features

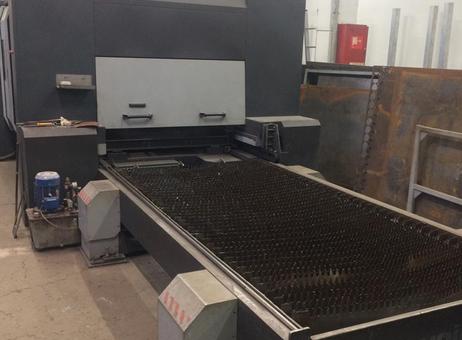

Two replaceable portal-type hydraulic tables with a working area of 1500x3000 mm;
Linear guides of the X, Y, Z axes;
The basic structures of the machine are made entirely welded with subsequent milling;
Servo drives with feedback sensors;

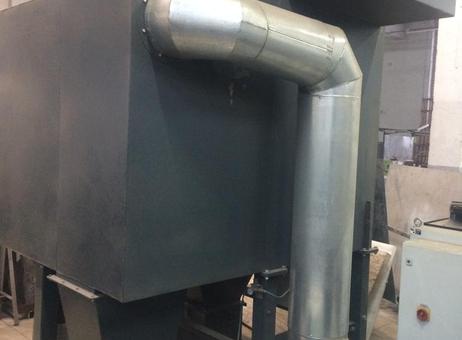

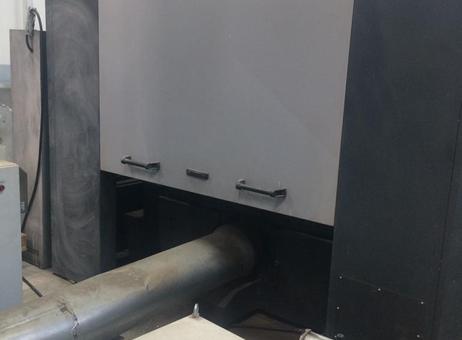

Zoned smoke removal system, control of the exhaust zone in accordance with the position of the cutter;

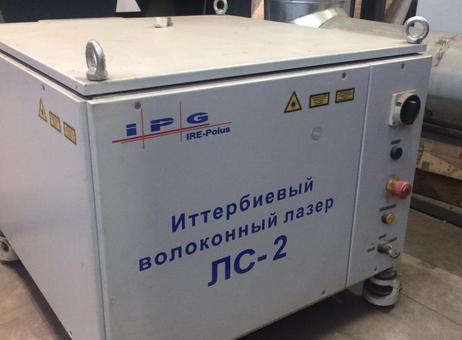

Ytterbium fiber laser YLR-2000, wavelength 1070nm;
Maintenance-free, low-mode;
Maximum radiation output power 2000W;
Integrated into the main installation;
Power and modulation control system

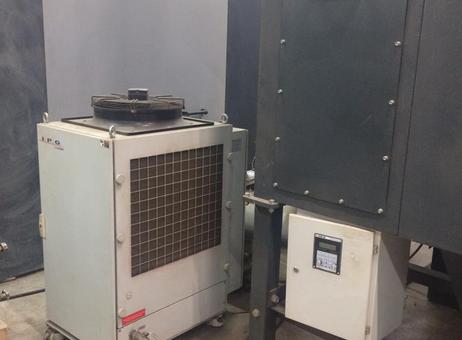

Cooling system water/air Unimach, type: water/air;
Comes with a standard automation kit;
High and low pressure controller;
Installed separately from the machine;
Laser optical head Unimach
Electro-mechanical lens drive;
CNC focal length control;
Automatic focus when selecting material from the library;
Blowing the protective plate;
Water cooling of optics;
Cooling of the cutting zone;
Power blowing of the insertion point when punching material;
Integrated FOCUT tracking system sensor;
Built-in automatic drive of the focusing lens cartridge;
Quick (cartridge) replacement of the focusing lens;
Quick (cartridge) replacement of the protective plate;
Focal length adjustment range: -20…+20 mm;
Changing the focal length “on the fly” (including during burning);
Supports lenses with focal lengths of 150 and 200 mm.

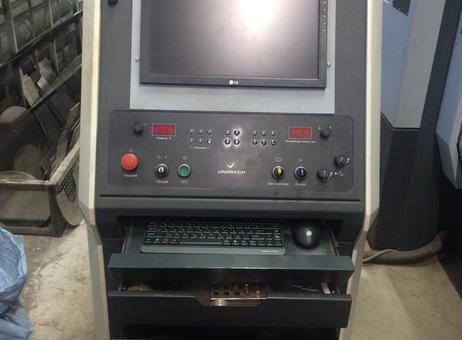

UNIMACH CNC system
Control and monitoring rack with Ethernet and USB output.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Factory – small or medium company |
| Active since | 2023 |
| Offers online | 1 |
| Last activity | Jan. 3, 2025 |
Metal laser cutting machine for sale. Inspection of the city of Krasnoyarsk. The set includes 2 replaceable portal-type hydraulic tables.
Operating range
Laser processing area, mm: 3000x1500;
Maximum distributed load on the table, kg: 1000;
Machine accuracy parameters (with feedback sensors)
Positioning accuracy along the X, Y, Z axes mm/m: ±0.05;
Positioning repeatability along the X, Y, Z axes, mm/m: ±0.005;
Movements and feeds
Working displacement along the X axis, mm: 3000;
Working displacement along the Y axis, mm: 1500;
Working movement along the Z axis, mm: 100;
Speed of rapid movements along the X, Y axes, m/min (synchronously): 150;
Speed of fast movements along the Z axis, m/min: 50;
Working acceleration: up to 2g;
Linear axes
X-axis: linear drive;
Y axis: linear actuator;
Z axis: servo drive, precision rack and pinion with mechanical backlash compensation;
Overall dimensions and weight of the machine (no more)*
Length, mm: 9000; Width, mm: 3200; Height, mm: 2600;
Basic machine equipment and design features
Two replaceable portal-type hydraulic tables with a working area of 1500x3000 mm;
Linear guides of the X, Y, Z axes;
The basic structures of the machine are made entirely welded with subsequent milling;
Servo drives with feedback sensors;
Zoned smoke removal system, control of the exhaust zone in accordance with the position of the cutter;
Ytterbium fiber laser YLR-2000, wavelength 1070nm;
Maintenance-free, low-mode;
Maximum radiation output power 2000W;
Integrated into the main installation;
Power and modulation control system
Cooling system water/air Unimach, type: water/air;
Comes with a standard automation kit;
High and low pressure controller;
Installed separately from the machine;
Laser optical head Unimach
Electro-mechanical lens drive;
CNC focal length control;
Automatic focus when selecting material from the library;
Blowing the protective plate;
Water cooling of optics;
Cooling of the cutting zone;
Power blowing of the insertion point when punching material;
Integrated FOCUT tracking system sensor;
Built-in automatic drive of the focusing lens cartridge;
Quick (cartridge) replacement of the focusing lens;
Quick (cartridge) replacement of the protective plate;
Focal length adjustment range: -20…+20 mm;
Changing the focal length “on the fly” (including during burning);
Supports lenses with focal lengths of 150 and 200 mm.
UNIMACH CNC system
Control and monitoring rack with Ethernet and USB output.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
