| Manufacturer | Unex |
|---|---|
| Model | Hybrid; fully welded plate heat exchanger |
| Year | 2000 |
| Location | Netherlands
|

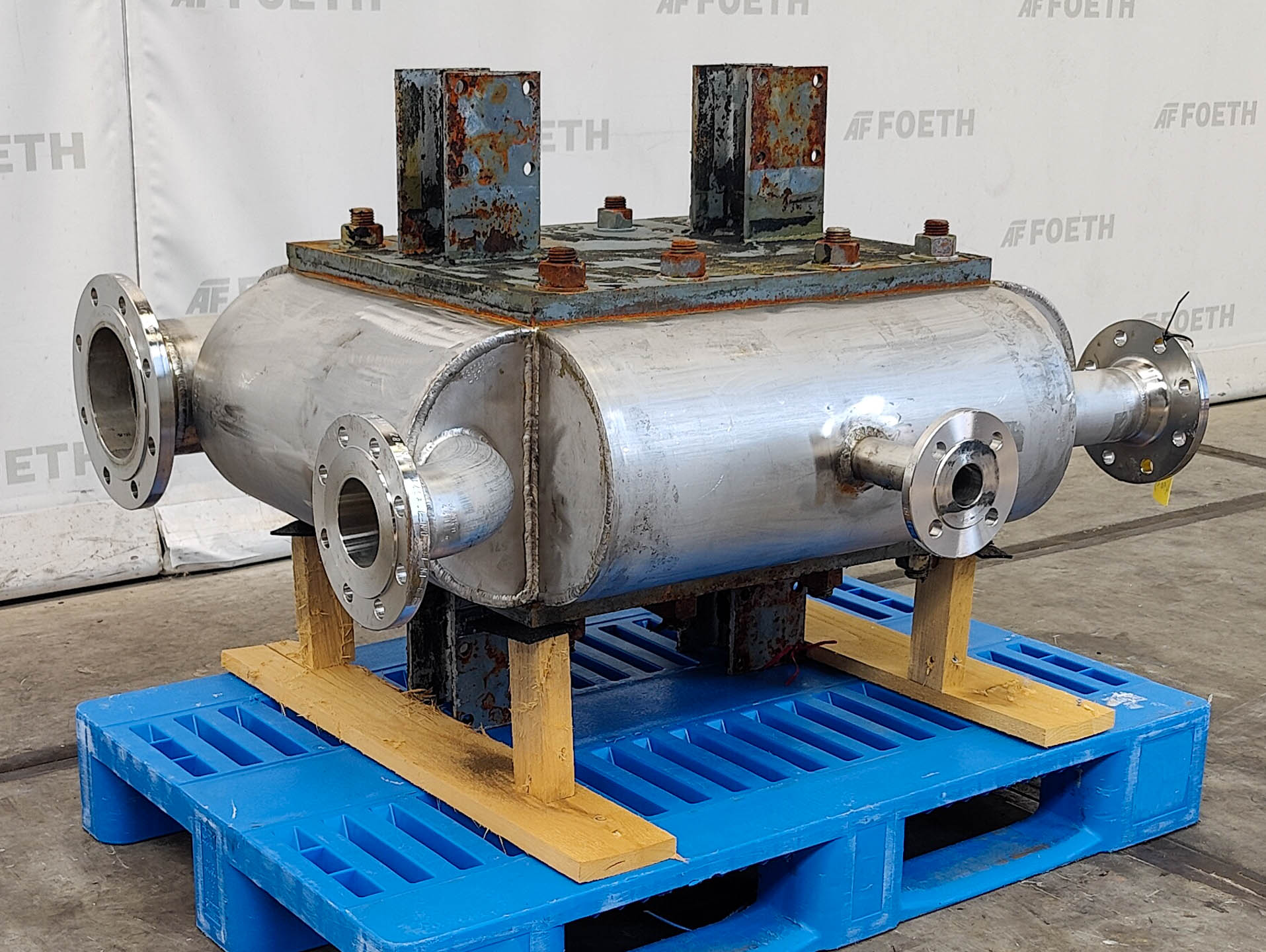

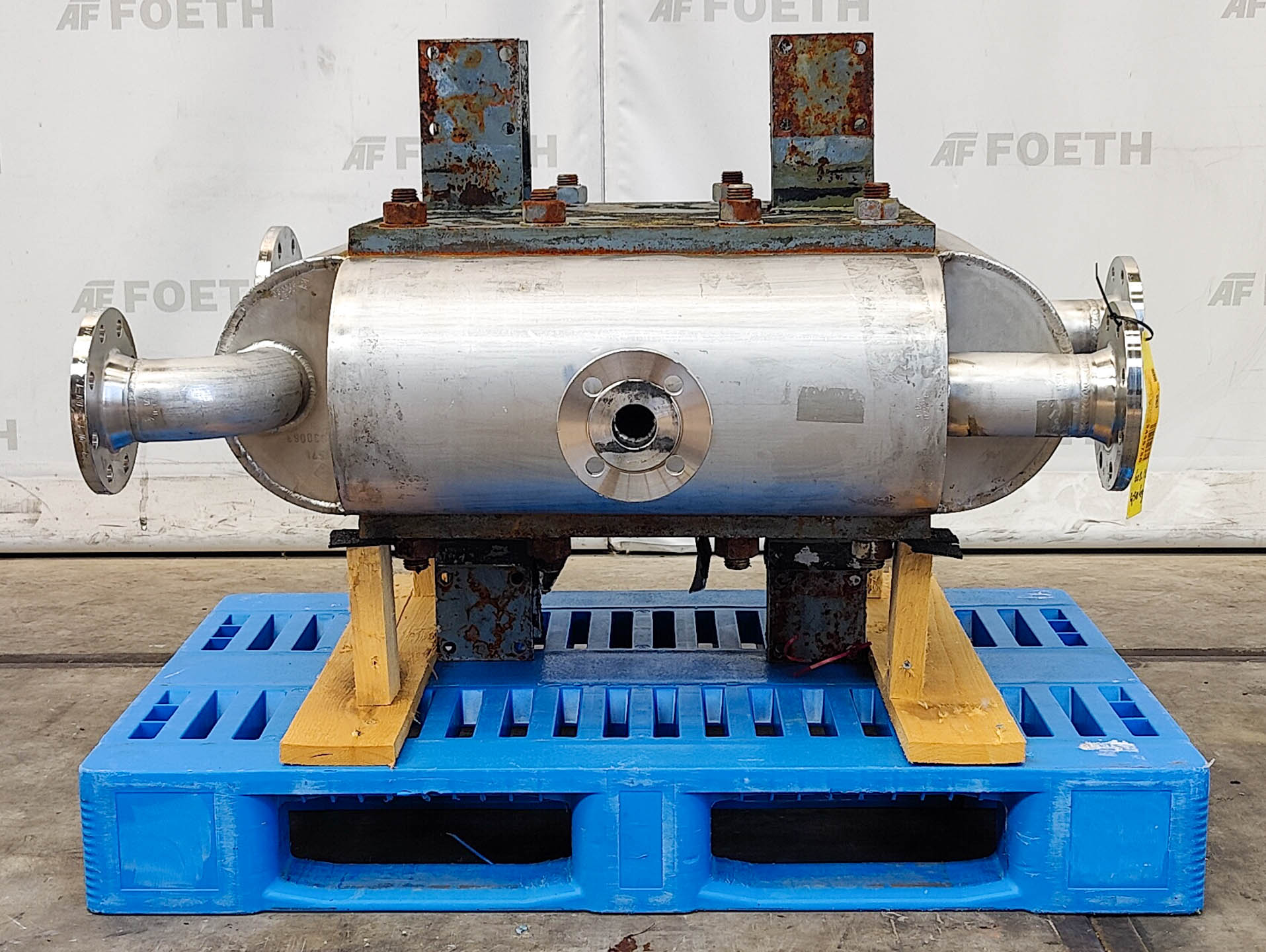

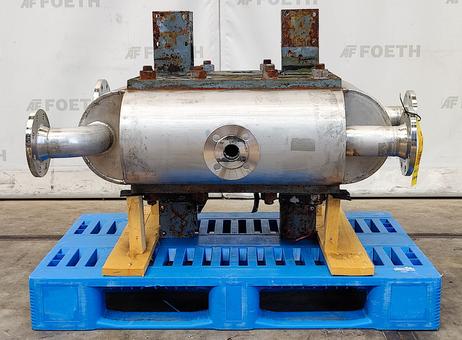

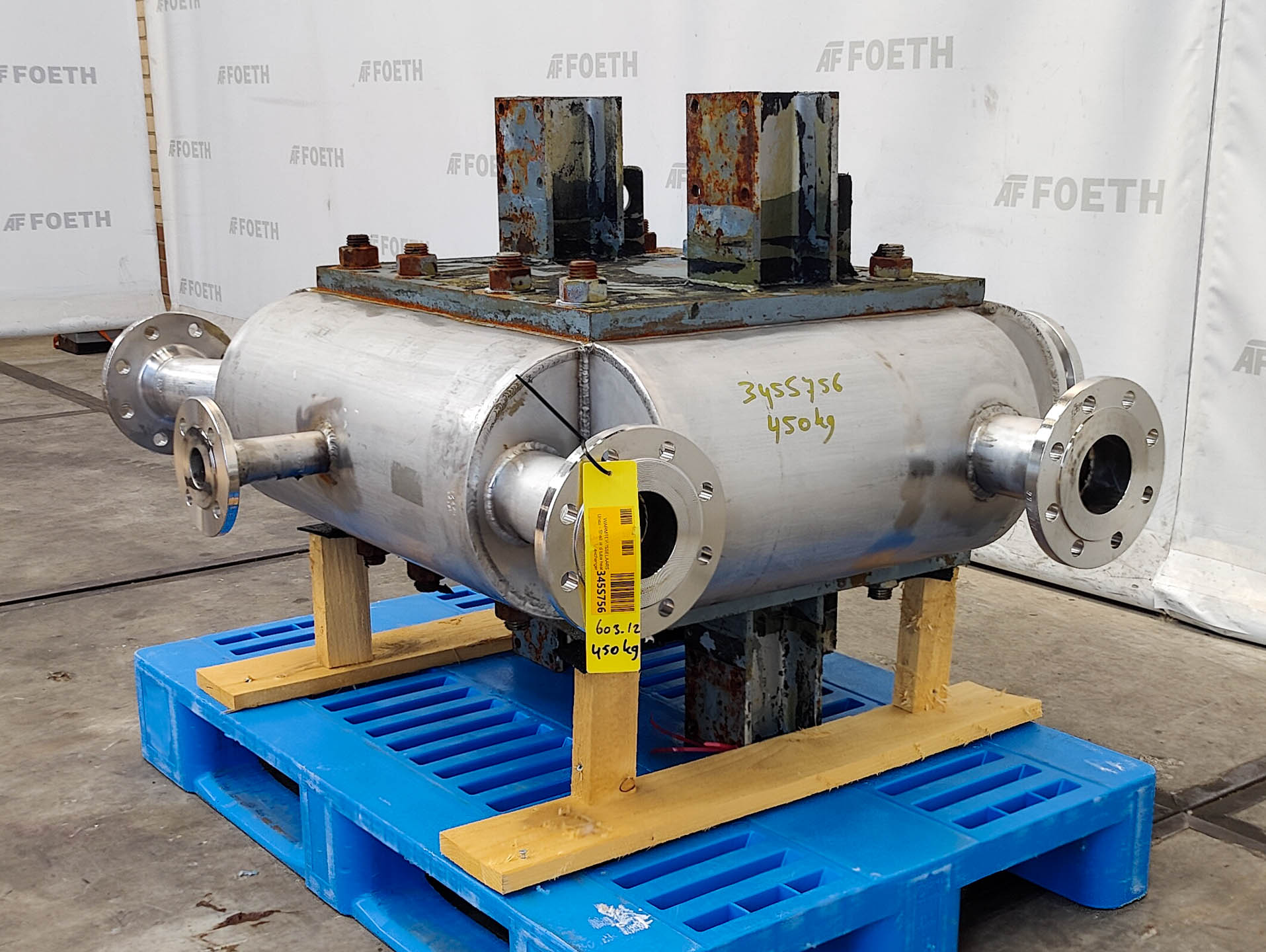

Unex is a hybrid, fully welded plate heat exchanger, also described as suitable for use as a condenser. It is made of stainless steel and is listed for heat-transfer service. The maximum operating temperature specified is 200 °C. The listing also indicates that vacuum operation is possible. No additional operating conditions or performance results are stated here.
The overall dimensions are 1,200 mm long, 1,100 mm wide and 800 mm high. The unit weighs 490 kg. These details may help with assessing handling and space requirements, but no installation or lifting equipment is included in the available information.
The unit is identified as a Unex Hybrid fully welded plate heat exchanger. Its design and stated condenser suitability may be relevant when considering it for an existing process or replacement application. Confirm that the exchanger’s connection arrangement, capacity and operating conditions match the intended installation before purchase; those details are not included in this summary. The available description does not specify the unit’s current condition, inspection history or whether it has been tested, so no claims are made about operational status.
Summary of stated specifications:
- Manufacturer: Unex
- Type: Hybrid, fully welded plate heat exchanger
- Material: Stainless steel
- Maximum temperature: 200 °C
- Vacuum operation: Possible
- Dimensions (L × W × H): 1,200 × 1,100 × 800 mm
- Weight: 490 kg
- Stated application: Suitable for use as a condenser
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 345S784
Location: Barneveld
Make: Unex Heatexchanger GmbH
Type: Hybrid
No.: HB 25228400035
Pressure
Working pressure: 6 Bar
Vacuum possible: ✓
Main Features
Material: Stainless steel
Surface: 12 m2
Size length: 1200 mm
Sizes width: 1100 mm
Specified Features - Plate heat exchanger
Plate heat exchangers: "fully welden plate heat exchanger"
Heating surface: 12 m²
Capacity: 111 Ltr., 57 Ltr. (shell)

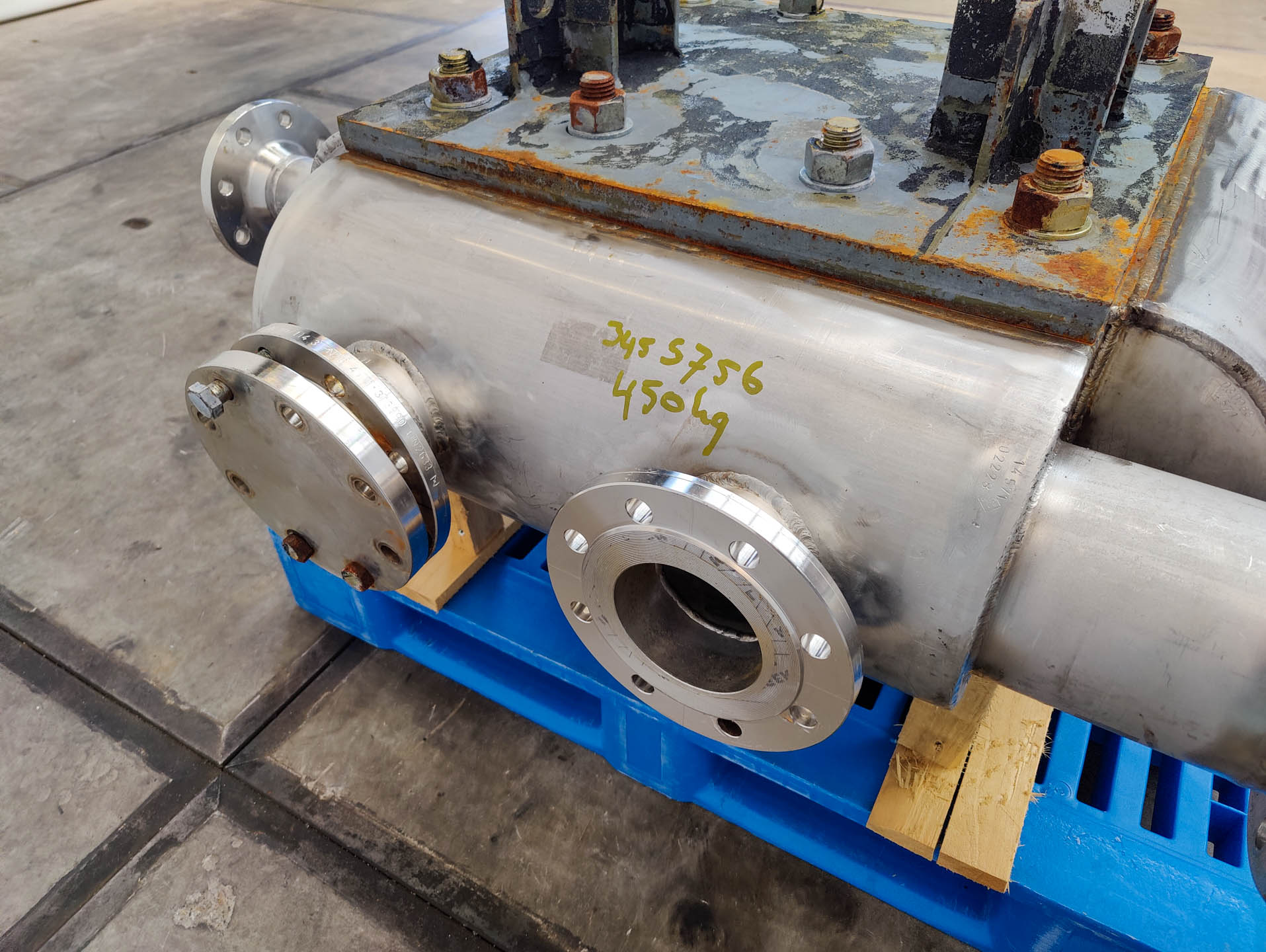

Connections: Product: (2x)DN80, DN40; Plates: DN150, DN80
Max. temperature: -30/200 °C
Material: Stainless steel 1.4571 (316Ti)
General
Year of construction: 2000
Floorspace: 1,2 x 1,1 m
Total height: 0,8 m
Weight: 490 kg
Extra Specifications: suitable for use as a condenser
Material: Stainless steel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
