| Manufacturer | Unex |
|---|---|
| Model | Hybrid; fully welded plate heat exchanger |
| Year | 2000 |
| Location | Netherlands
|

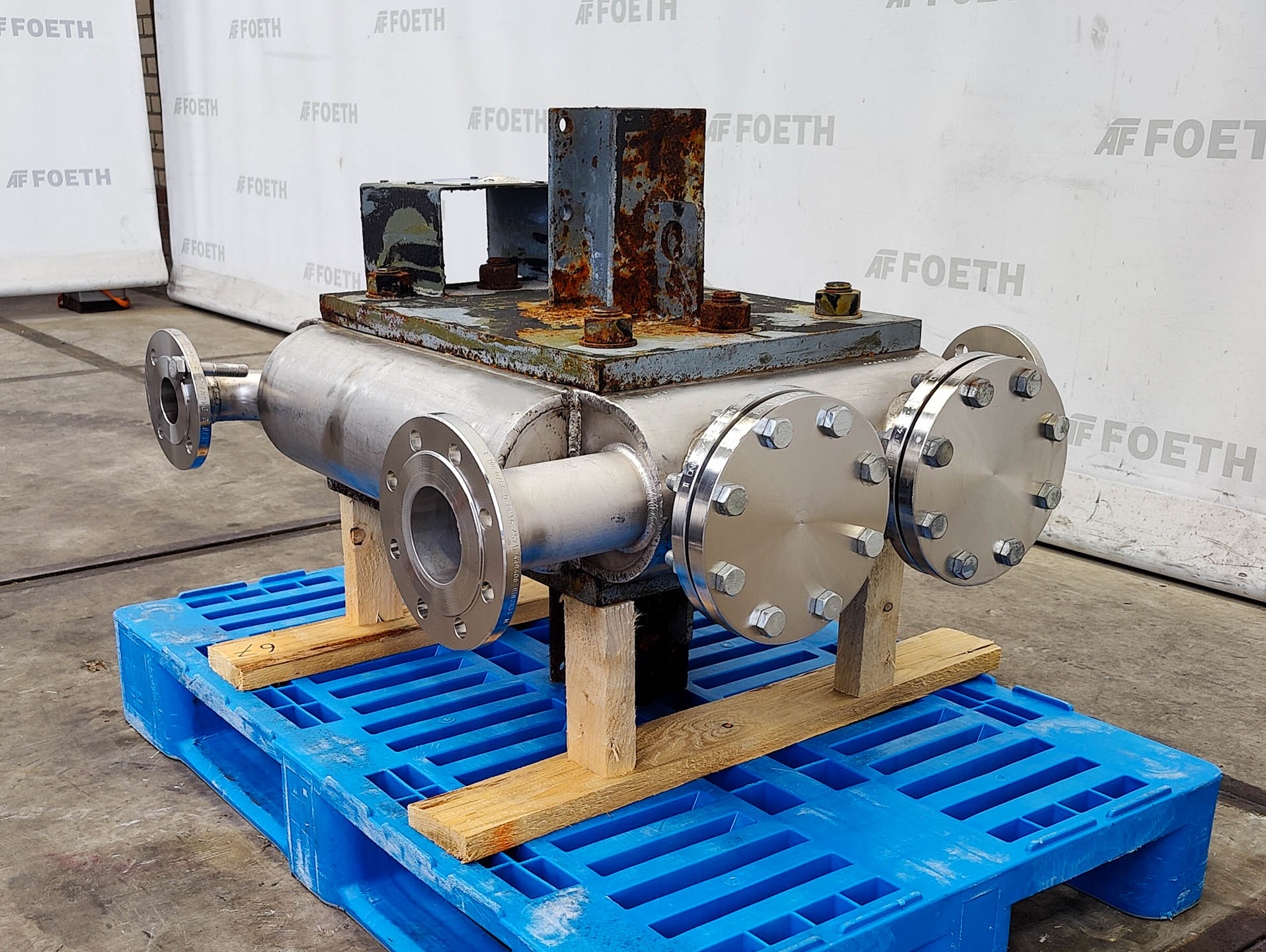

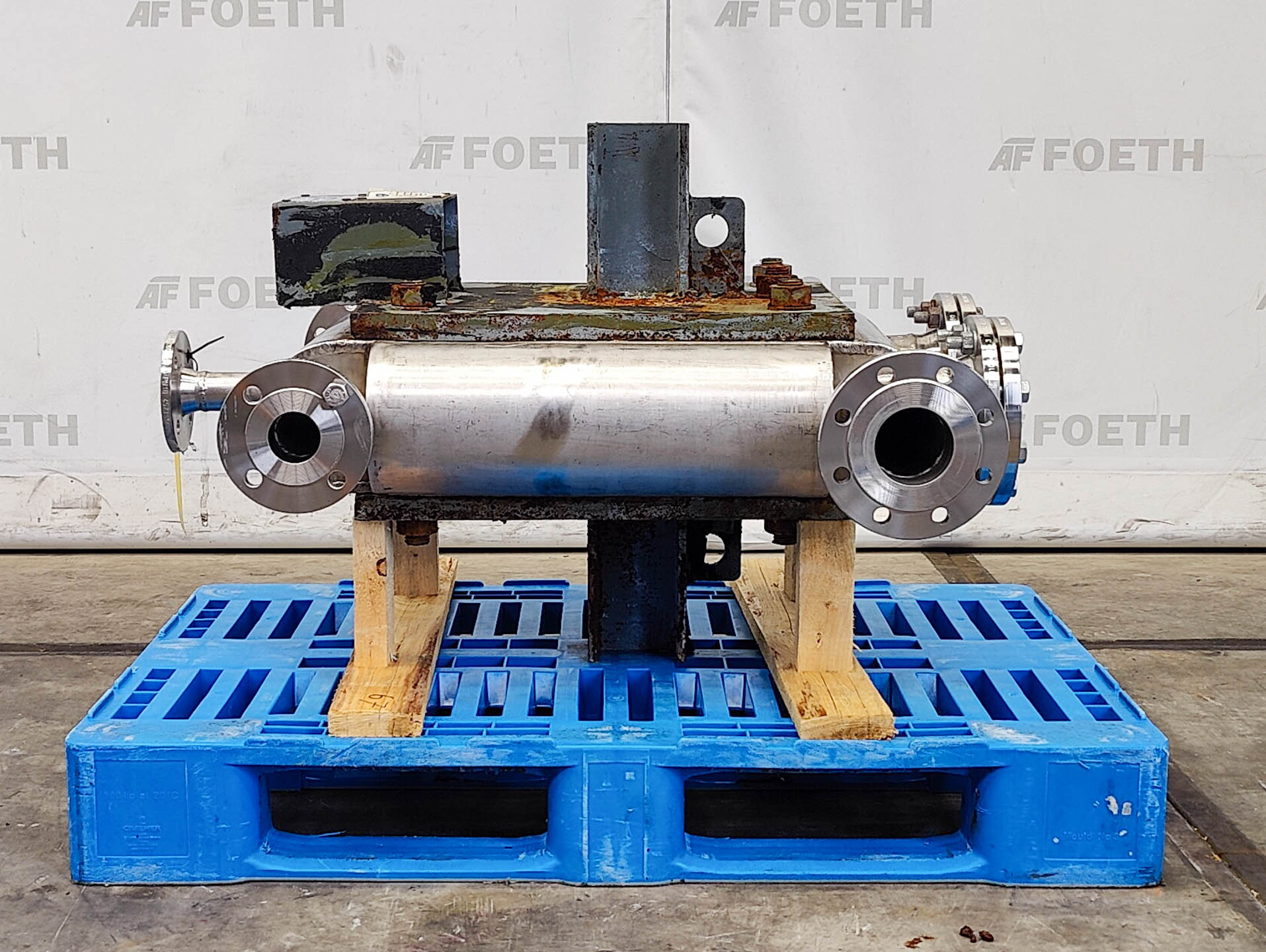

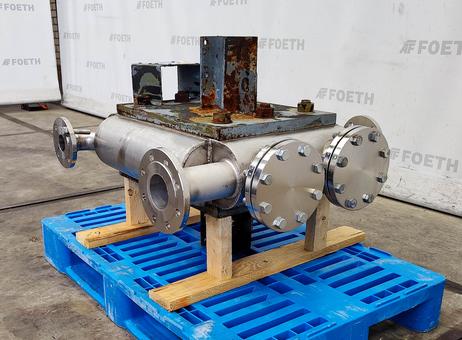

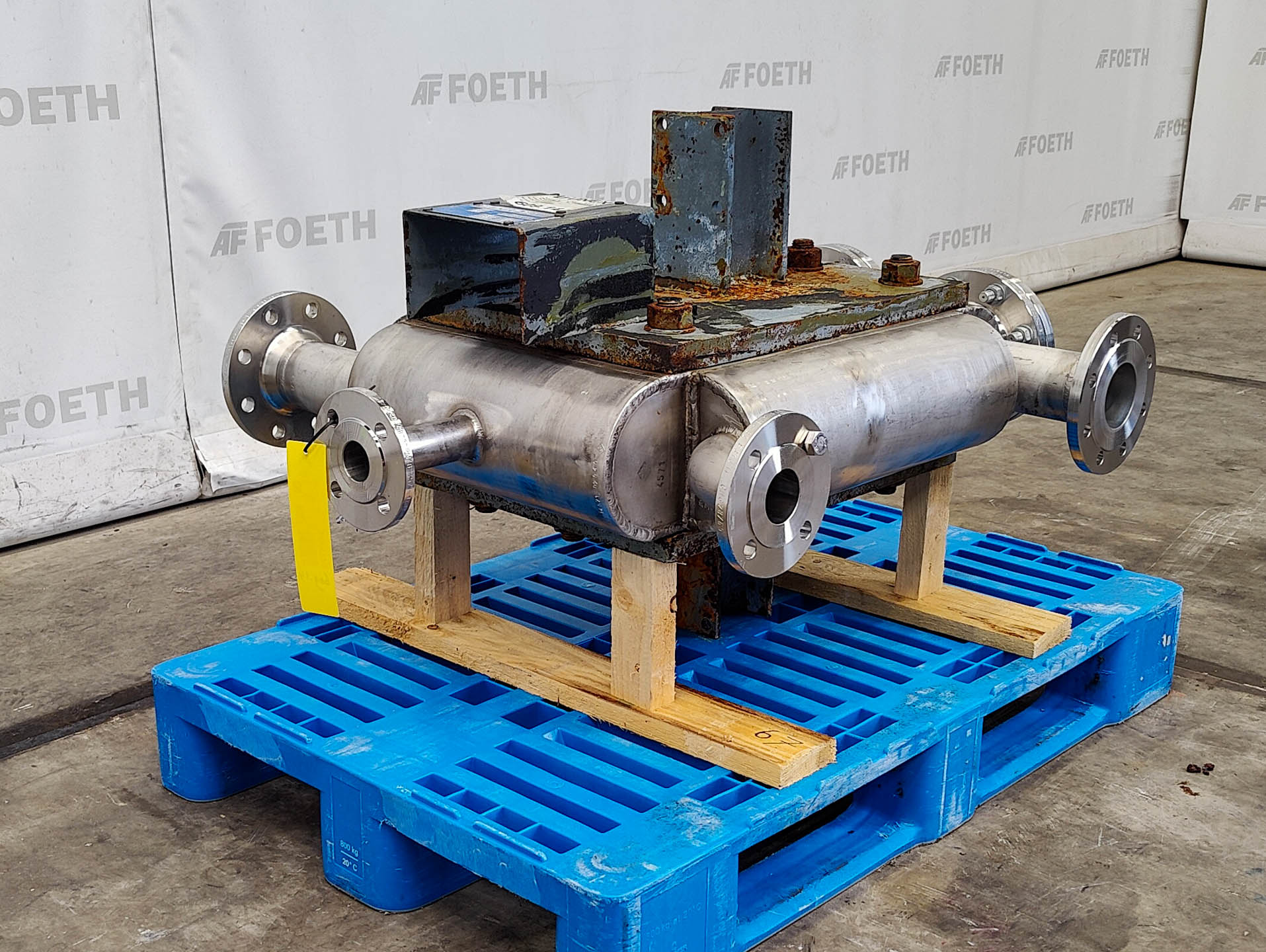

Unex Hybrid fully welded plate heat exchanger, manufactured by Unex Heatexchanger GmbH. The unit is listed as a condenser and is made from stainless steel, specified as grade 1.4571 (316Ti). Its heating surface is 5.7 m², and its stated capacity is 42 litres. The exchanger has one stage and is listed with two DN50 connections and two DN80 connections.
The listed working pressure is 6 bar, and vacuum operation is indicated as possible. The temperature specification is given as -30 to 200°C, with a maximum temperature of 200°C. The treatment type is recorded as “others.”
The stated overall dimensions are 900 mm long, 700 mm wide and 1,000 mm high. The listed weight is 260 kg. The current description gives the year of construction as 2000.
This listing describes a stainless-steel, fully welded plate heat exchanger with a condenser application. The available specifications cover its construction material, surface area, capacity, connection sizes, operating pressure, temperature range, dimensions and weight. No additional accessories or condition details are specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

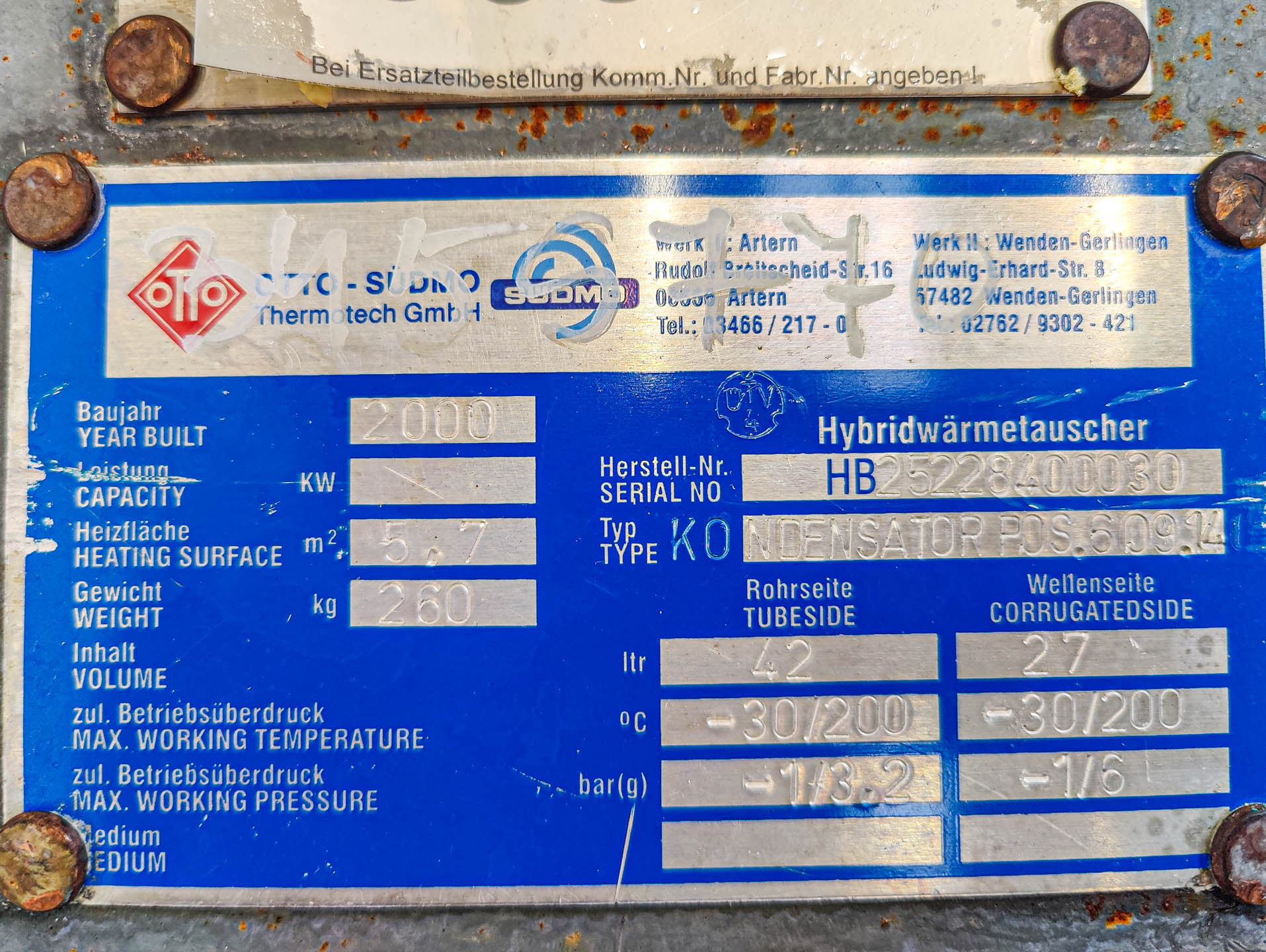

General
SKU: 345S770
Location: Barneveld
Make: Unex Heatexchanger GmbH
Type: Hybrid
No.: HB 25228400030
Pressure
Working pressure: 6 Bar
Vacuum possible: ✓
Main Features
Material: Stainless steel
Surface: 5.7 m2
Specified Features - Plate heat exchanger
Plate heat exchangers: ✓
Number of stages:: 1
Heating surface: 5,7 M2
Capacity: 42 Ltr
Connections: (2x) DN50,(2x) DN80
Max. temperature: -30/200°C.
Material: Stainless steel 1.4571 (316Ti)
General
Year of construction: 2000
Floorspace: 0,9x0,7 M
Total height: 1,0 M
Weight: 260 KG
Extra Specifications: Condenser
Material: Stainless steel
