Contact us to receive an offer.
| Manufacturer | Uhlmann |
|---|---|
| Model | B 1240 |
| Year | 2006 |
| Location | Germany
|
| Category | Blister machines |
| Length x width x height | 47000.0 × 11200.0 × 19000.0 |
| Weight | 1800 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Uhlmann B 1240 |
| Last availability date | 24/10/2026 |
| Product id | P261015057 |
| Language |
Блистер машина Uhlmann B 1240
Blistrovací stroj Uhlmann B 1240
Uhlmann B 1240 Blister maskine
Uhlmann B 1240 Blistermaschine
Μηχάνημα blister Uhlmann B 1240
Uhlmann B 1240 Blister machine
Máquina blister Uhlmann B 1240
Blistéreuse Uhlmann B 1240
Blister stroj Uhlmann B 1240
Uhlmann B 1240 Buborékfólia gép
Blisteratrice Uhlmann B 1240
Uhlmann B 1240 Lizdinės plokštelės mašina
Uhlmann B 1240 Blistermachine
Blistrownica Uhlmann B 1240
Máquina de blister Uhlmann B 1240
Aparat blister Uhlmann B 1240
Uhlmann B 1240 Блистерная машина
Blister mašina Uhlmann B 1240
Uhlmann B 1240 Blistermaskin
Blister ambalaj makinesi Uhlmann B 1240
|

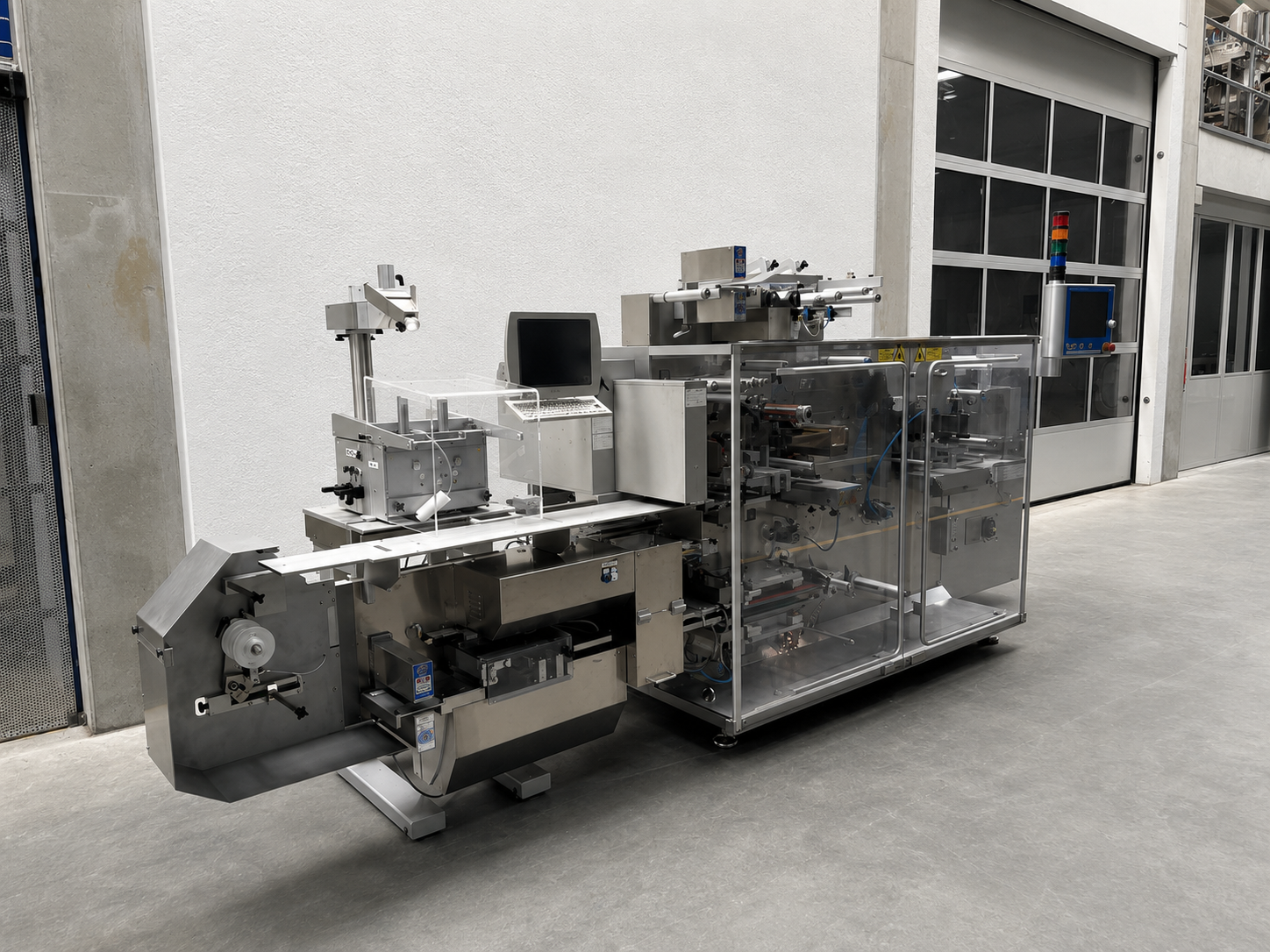

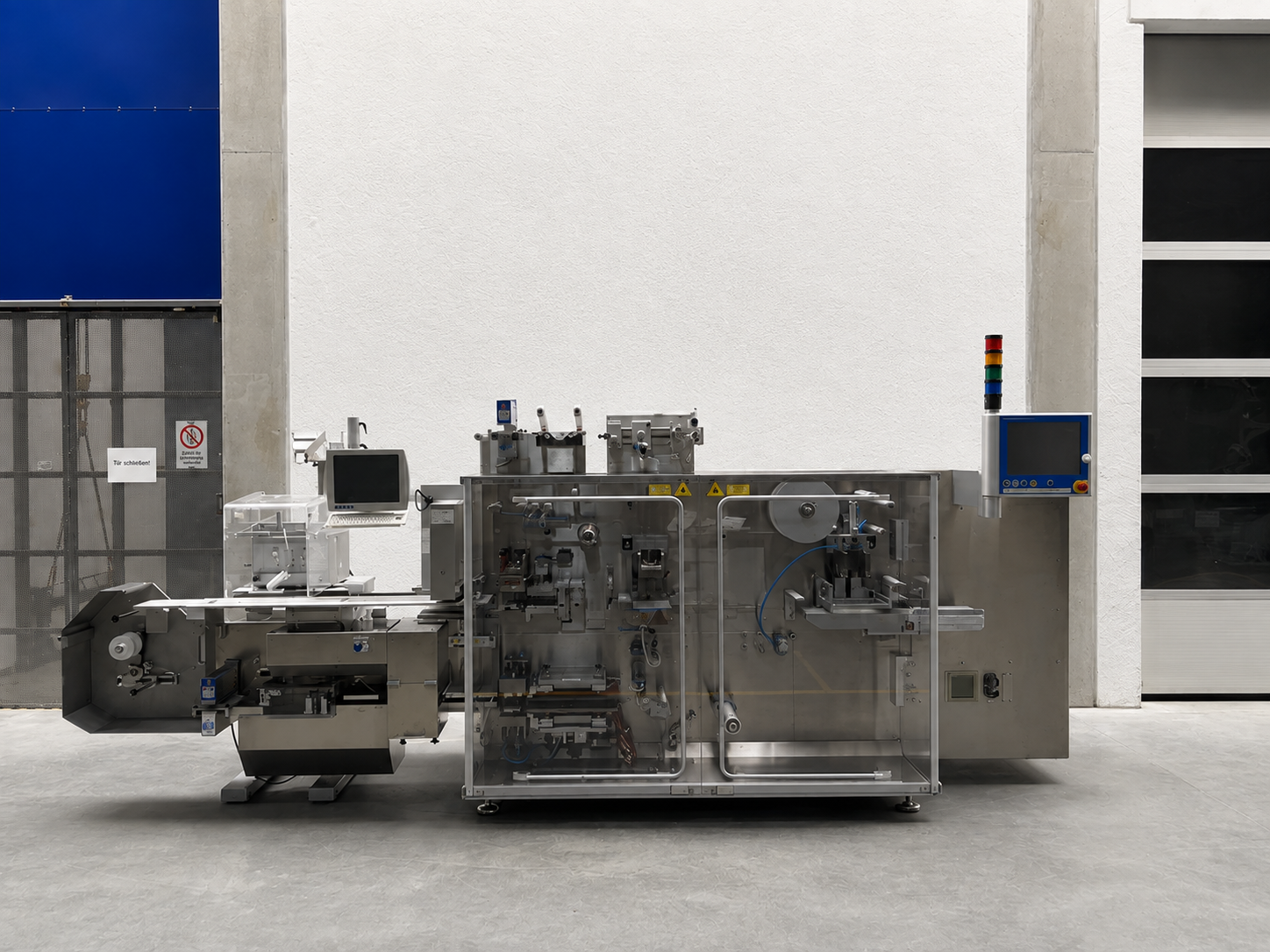

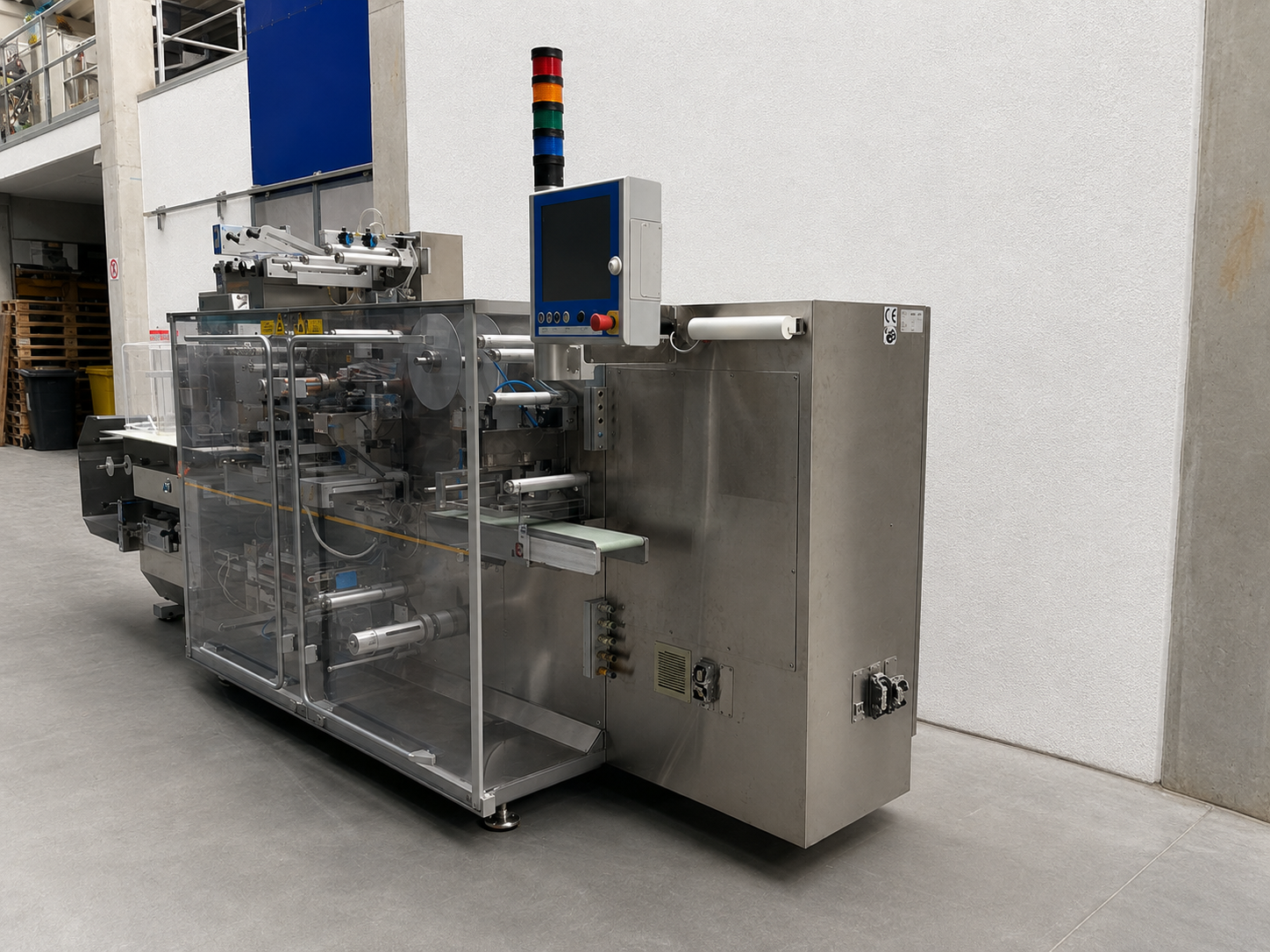

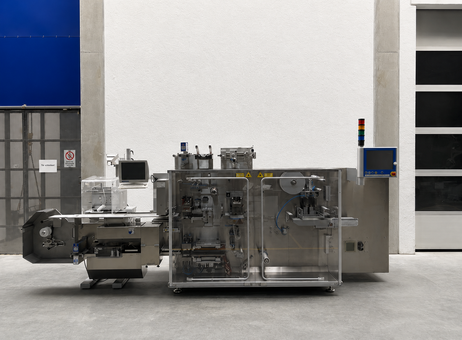

Uhlmann B 1240 Blister Packaging Machine
Manufacturer: Uhlmann
Model: B 1240
Year of manufacture: 2006
Technical condition: As-is, where-is
Operating hours: 5,881
The machine is configured for ALU/ALU operation and prepared for ALU/PVC operation. Its blister format range is 50 × 22 mm to 156 × 115 mm, with a maximum draw depth of 18 mm. Output is specified at 15–50 forming cycles per minute. Transport length is 42–115 mm, and foil width is 100–168 mm.
Forming foil roll diameter is up to 450 mm, with core diameters of 76 mm for PVC and 150 mm for aluminium. Lidding foil roll diameter is up to 240 mm, with a 76 mm core. Both foil systems use mechanical tension. Features include splice detection, foil feed after forming and sealing, print mark control, and lidding foil stretching.
Crack and pore inspection for forming and lidding foils is provided by a Visiotec VisioScan MT-160/200. The PVC forming station uses compressed air and is pre-equipped for pre-stretching punches; the aluminium forming station is mechanical. The PVC heating plate station is not installed and can be supplied at additional cost.

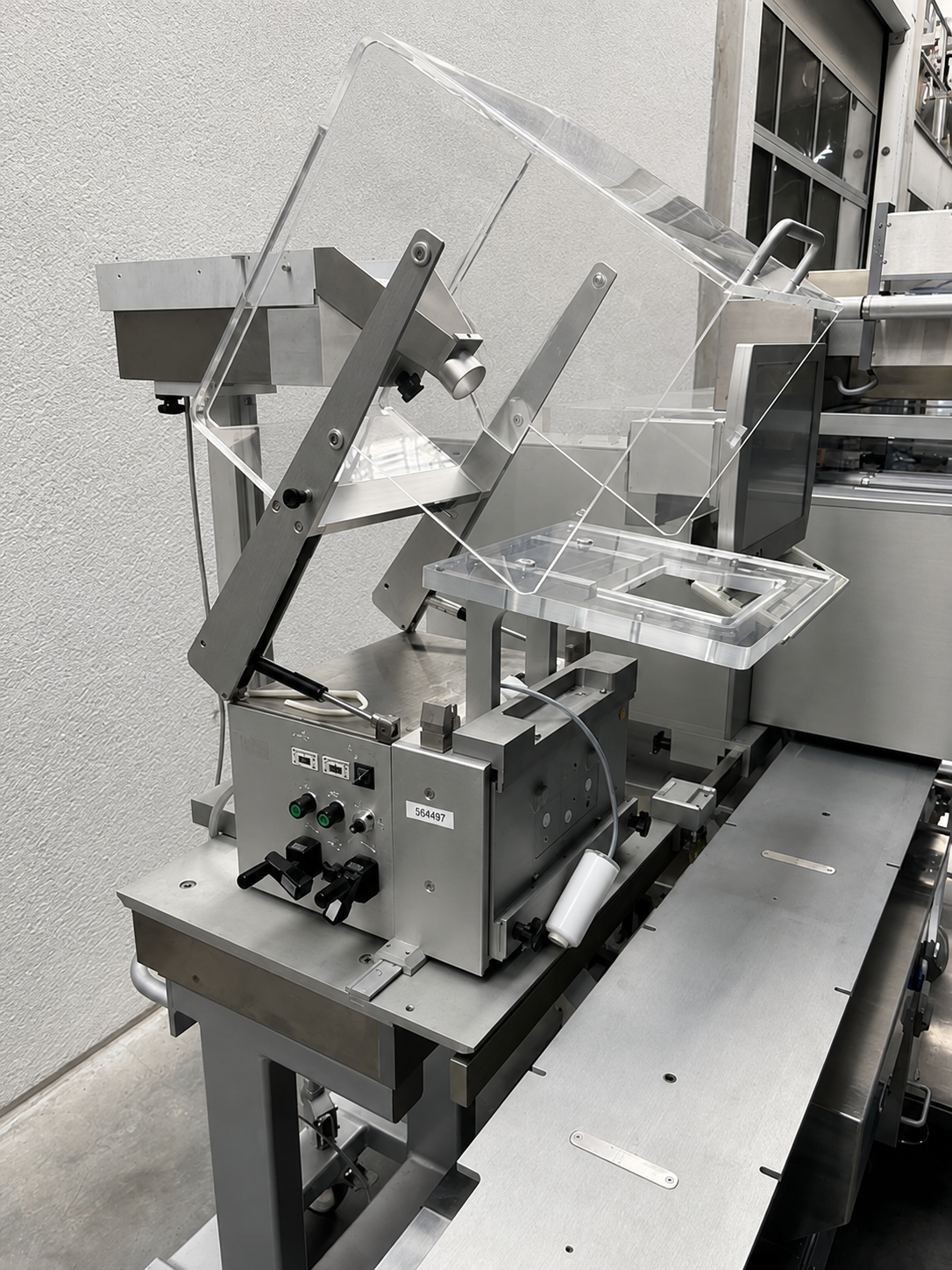

Controls include a Beckhoff IPC PLC, ELAU PacDrive Max 4 servo control, and VisioChrom HR 302A1 filling control. Product feeding is by a Uhlmann SimTab Type 2.1, manufactured in 2000, suitable for tablets and capsules. Reject blister discharge and format sets are not included.
Electrical supply: 400 V / 50 Hz
Weight: 1,800 kg
Dimensions: 4,700 × 1,120 × 1,900 mm
PLC replacement is recommended due to age. Inspection and test run are not included. Technical changes are possible.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Uhlmann B 1240 Blister Packaging Machine
Manufacturer: Uhlmann
Model: B 1240
Year of manufacture: 2006
Technical condition: As-is, where-is
Operating hours: 5,881
Application: ALU/ALU operation; prepared for ALU/PVC operation
Blister format range (W × L): 50 × 22 mm to 156 × 115 mm
Maximum draw depth: 18 mm
Output: 15–50 forming cycles/min
Transport length: 42–115 mm
Foil width: 100–168 mm
Forming foil diameter: Maximum 450 mm
Forming foil core diameter: 76 mm for PVC; 150 mm for aluminium
Forming foil tension: Mechanical

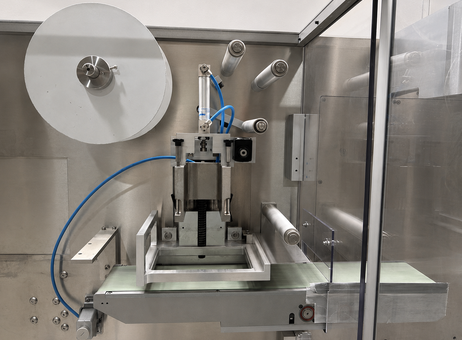

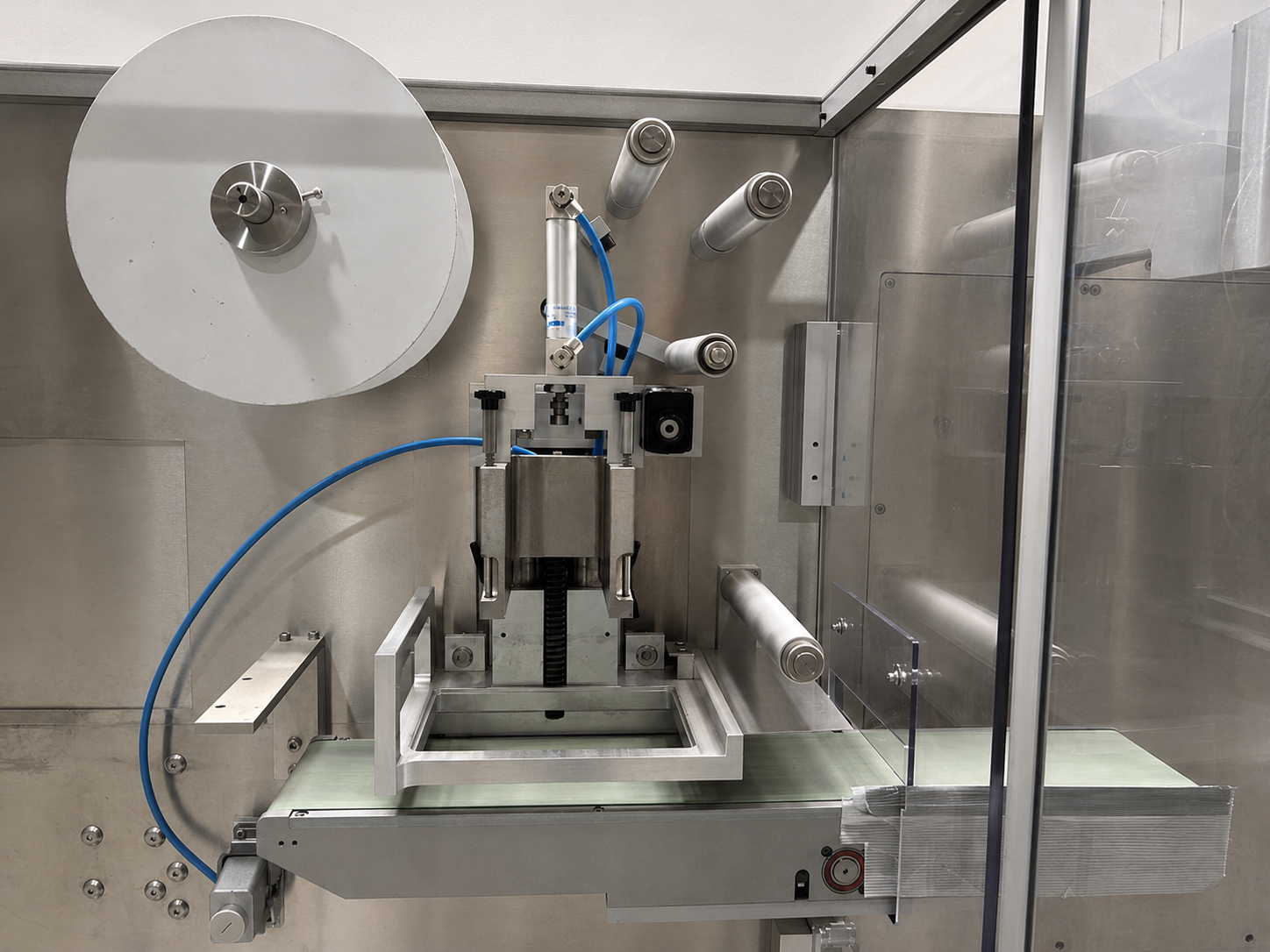

Lidding foil diameter: Maximum 240 mm
Lidding foil core diameter: 76 mm
Lidding foil tension: Mechanical
Foil splice detection: Yes
Foil feed: After forming and after sealing
Print mark control: Yes
Lidding foil stretching: Yes

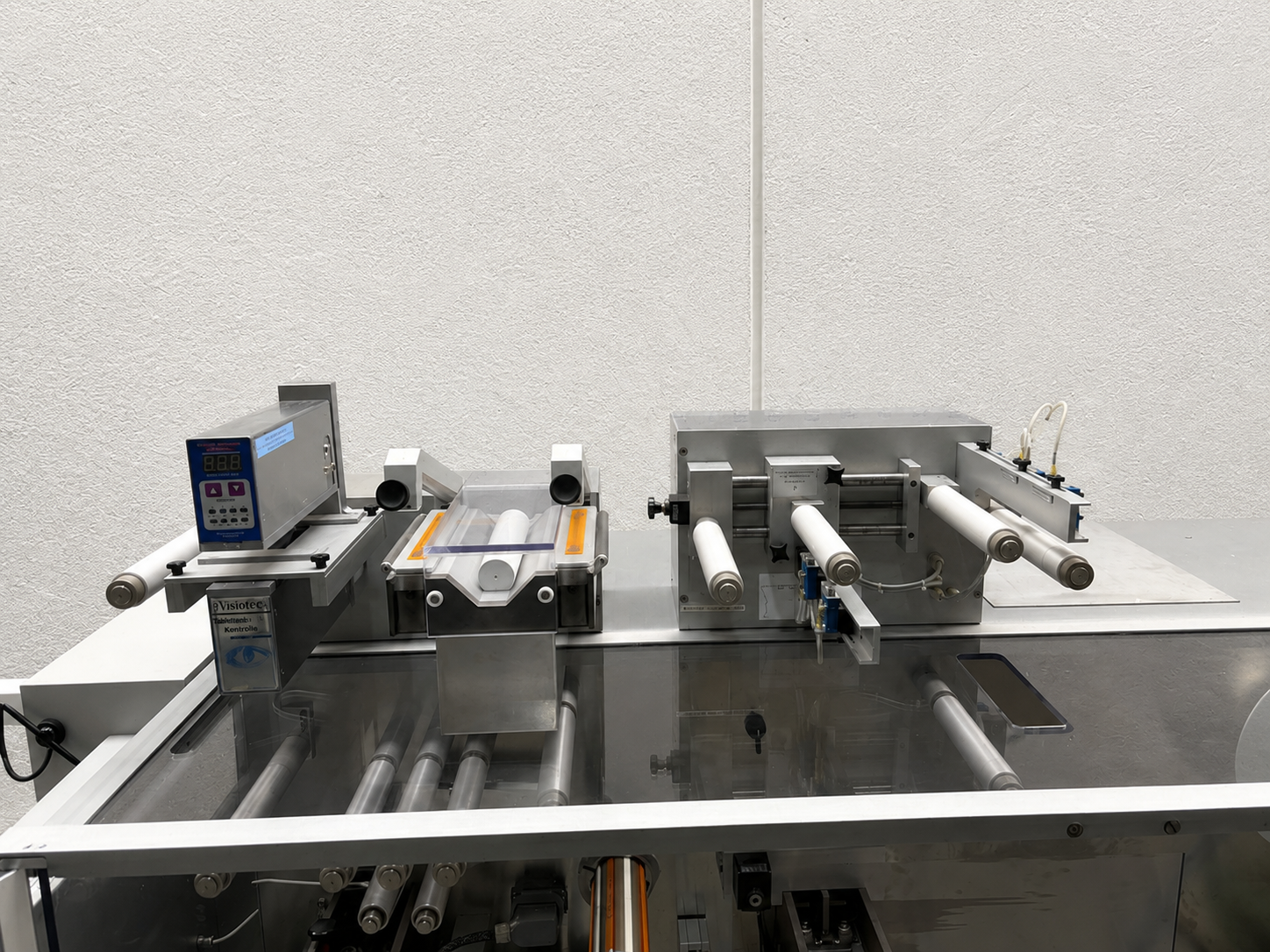

Crack and pore control: Visiotec VisioScan MT-160/200 for forming and lidding foils
PVC forming foil heating plate station: Not installed
PVC forming station: Compressed-air system; pre-equipped for pre-stretching punches
Aluminium forming station: Mechanical

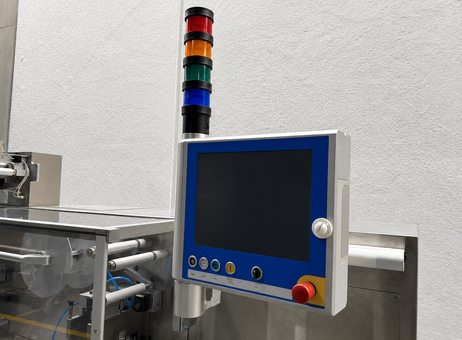

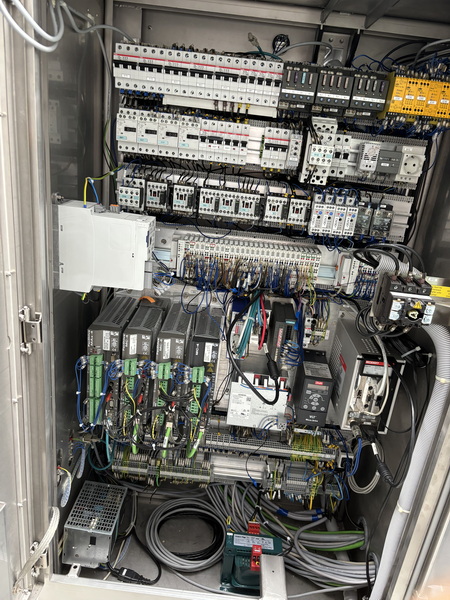

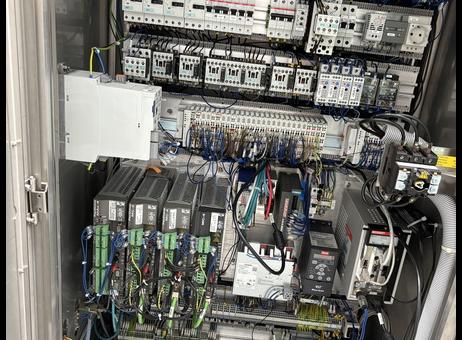

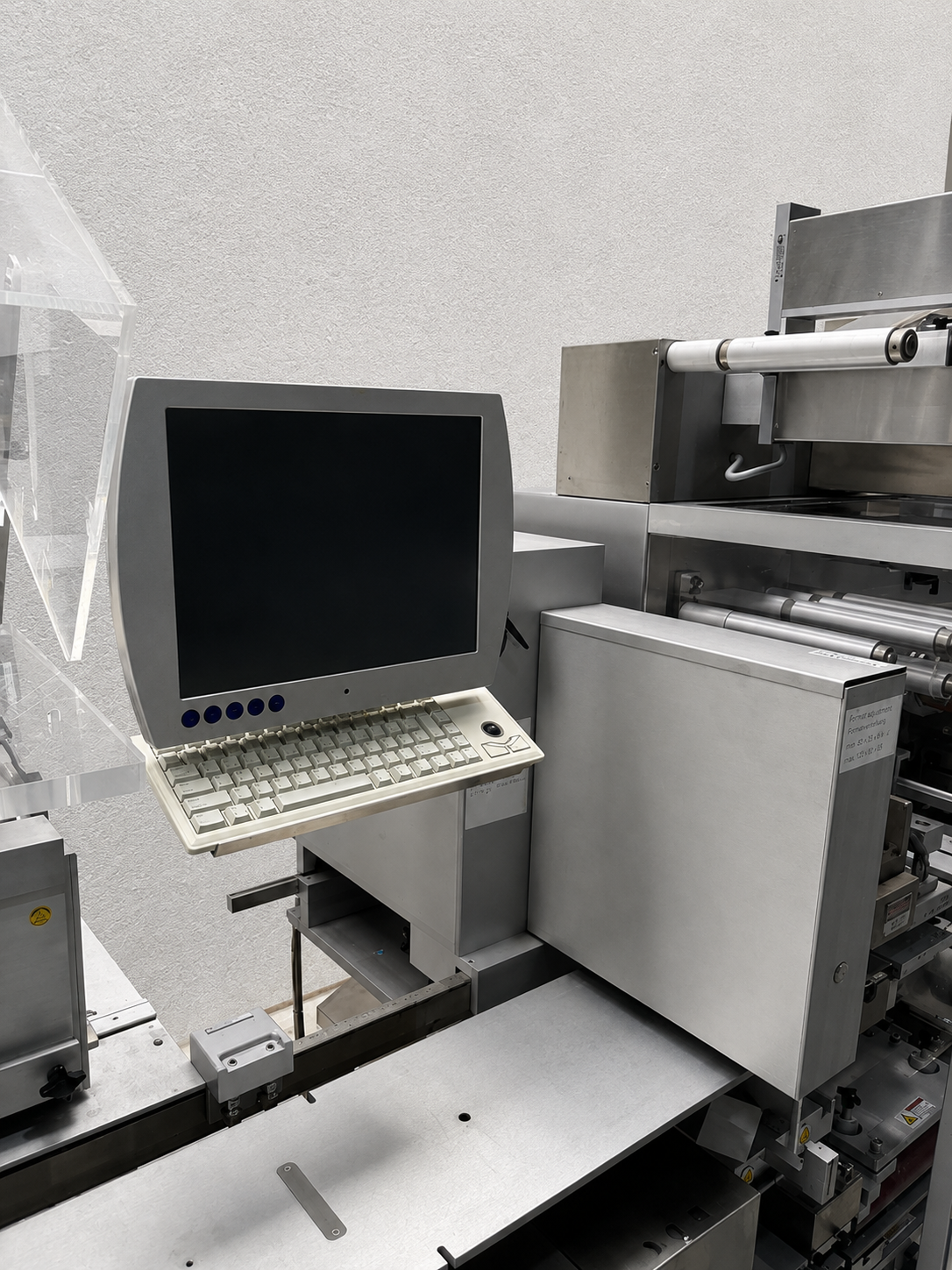

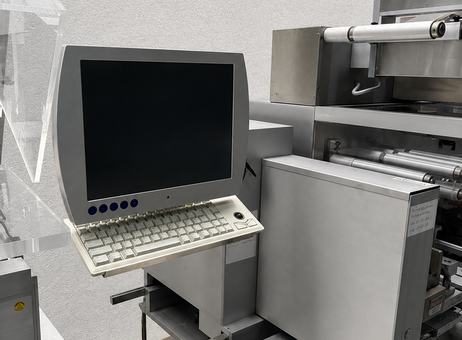

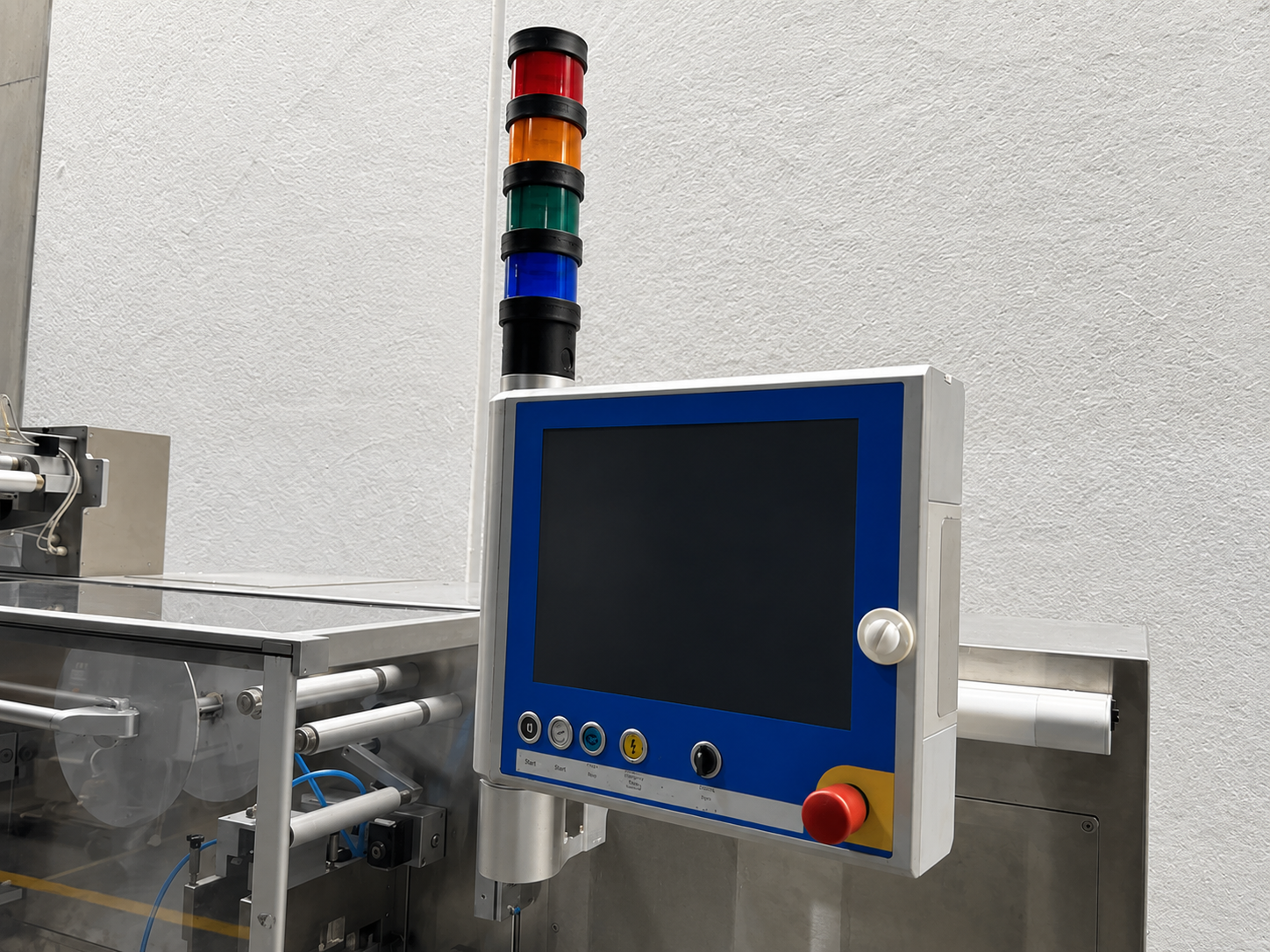

Control system: Beckhoff IPC PLC

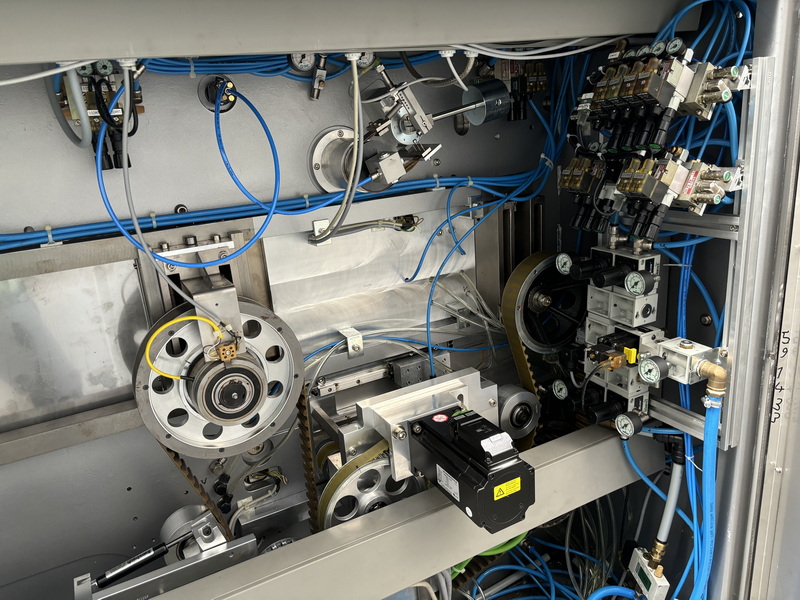

Servo control: ELAU PacDrive Max 4
Filling control: VisioChrom HR 302A1

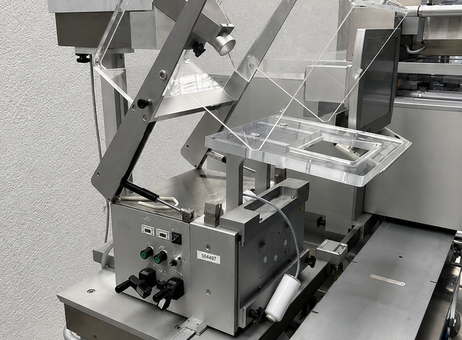

Tablet/capsule feeding: Uhlmann SimTab, Type 2.1, manufactured in 2000
Reject blister discharge: Not included
Format sets: Not included
Electrical supply: 400 V / 50 Hz
Weight: 1,800 kg
Dimensions: 4,700 × 1,120 × 1,900 mm
The PLC should be replaced due to age.
Inspection and test run are not included.
Technical changes reserved.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2026 |
| Offers online | 76 |
| Last activity | Oct. 27, 2026 |

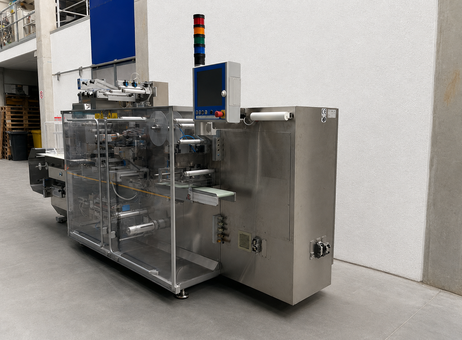

Uhlmann B 1240 Blister Packaging Machine
