| Manufacturer | Türkiye |
|---|---|
| Model | 160 CM MONO EXTRUSİON LINE |
| Year | 2025 |
| Location | Turkey
|
This listing is for a Türkiye-manufactured 160 CM MONO Extrusion Line, designed for blown film production with a maximum film width of 160 cm. The machine was manufactured in 2025 and features a screw diameter of 90 mm, supporting an output capacity of up to 150 kg per hour.
The extrusion line includes a 90 mm screw with an effective L/D ratio of approximately 3.3:1, enabled by a special shaft design. It is powered by a 37 kW motor coupled with a 3-stage gearbox providing a 1/10 reduction. The die head is rotating, with a die diameter of 250 mm capable of producing films ranging from 30 to 500 microns in thickness. The die was polished during the 2025 overhaul.
Cooling is managed via a single lip air ring and a 5 kW inverter-controlled fan. The winding section features a double winder with independent drive control, supporting maximum roll diameters up to 100 cm.
This extrusion line is suitable for processing LDPE, HDPE, and MDPE materials, producing various film types including shrink, packaging, agricultural, and courier films. Additional capabilities include embossing, perforation, corona treatment provision, and processing of recycled materials.
The 2025 overhaul included replacement of the screw, barrel reconditioning, die polishing, electrical panel revision, motor and gearbox servicing, renewal of the screen changer system, addition of a banana roller, servicing of the air ring, and heater bands maintenance.

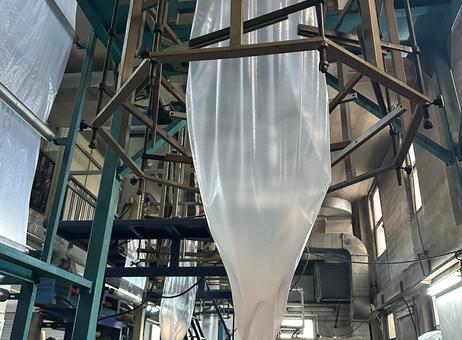

The machine is currently installed and operational, with approximately 100 hours of use since the overhaul. It appears clean and well-maintained, with visible components such as rollers and metal frames supporting the film processing. Rolls of clear plastic film are loaded on the machine, indicating readiness for production.
This extrusion line is offered in excellent mechanical condition and is suitable for immediate production use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine Status: Installed and can be inspected under power
Machine Description:
160 cm Mono PE Blown Film Extrusion Line
Year of Manufacture: 2025
Working Hours: Approximately 100 hours after overhaul
Technical Condition: Excellent
State: In production
Main Technical Specifications:

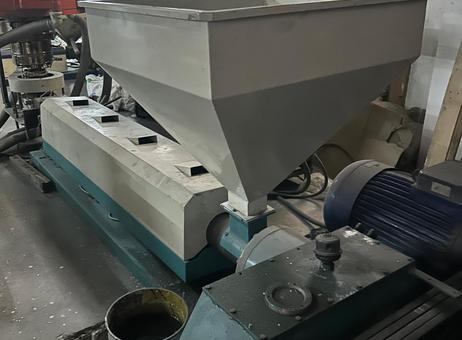

Extruder:
- Screw Diameter: 90 mm
- L/D Ratio: 2.7:1 (effective 3.3:1 due to special shaft design)
- Motor Power: 37 kW
- Output Capacity: Up to 150 kg/hour
- Gearbox: 3-stage (1/10 reduction)
- Die Head: Rotating
- Tower Height: Fixed at 6 meters
- Barrier Screw: Renewed
Die:
- Die Diameter: 250 mm
- Thickness Range: 30 – 500 microns
- Die: Polished during overhaul

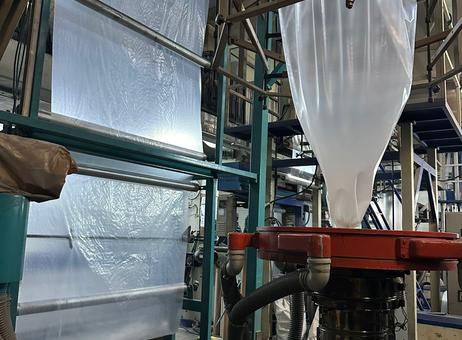

Cooling:
- Air Ring: Single lip
- Fan: 5 kW (inverter controlled)

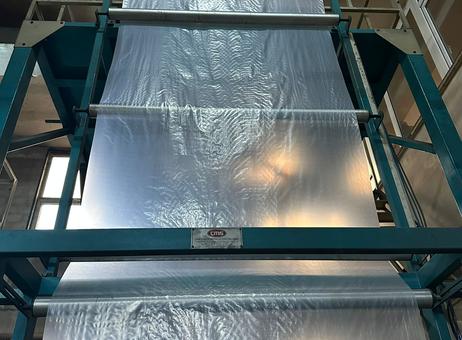

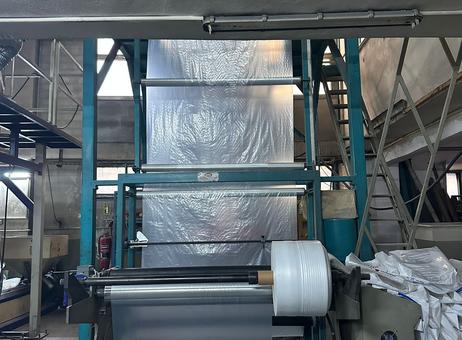

Winding Section:
- Max Film Width: 160 cm
- Winder Type: Double winder
- Drive Control: Independent
- Max Roll Diameter: Up to 100 cm (adjustable)
Production Capability:
- Materials: LDPE / HDPE / MDPE
- Film Types: Shrink film, Packaging film, Agricultural film, Courier film
- Features: Embossing, Perforation, Corona provision, Recycled material processing
2025 Overhaul Includes:
- New screw
- Barrel reconditioned
- Die polished

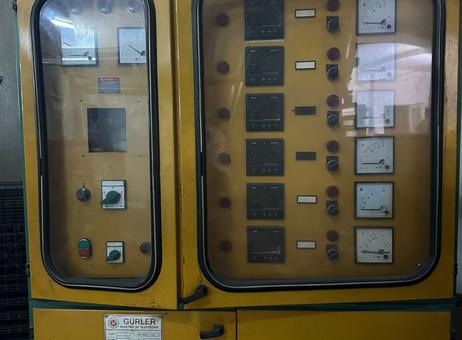

- Electrical panel revised
- Motor serviced
- Gearbox serviced
- Screen changer system renewed
- Banana roller added
- Air ring serviced
- Heater bands serviced
This machine is in excellent mechanical condition and ready for production.
