Contact us to receive an offer.
| Manufacturer | TUrkey |
|---|---|
| Model | 80 CM MONO PE BLOWN FILM EXTRUSION LINE |
| Year | |
| Location | Turkey
|

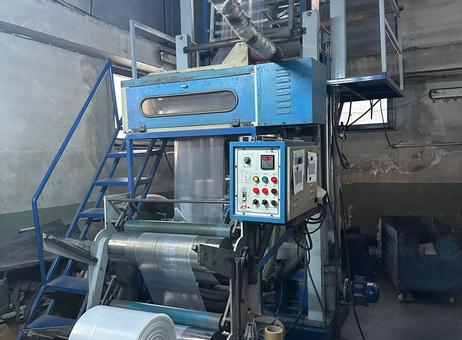

This 80 cm Mono PE Blown Film Extrusion Line, manufactured in Turkey, is designed for producing polyethylene films with a maximum output capacity of 50 kg per hour. The extruder features a screw diameter of 45 mm and an effective length-to-diameter (L/D) ratio of approximately 3.4:1, enhanced by a special shaft design. It is powered by a 15 kW motor coupled with a 3-stage gearbox providing a 1/10 reduction ratio. The extrusion system includes a polished main die with a 120 mm diameter and a spare die of 60 mm, suitable for producing films used in general packaging and technical applications. The line is equipped with a single lip air ring cooling system, supported by a 2 kW cooling fan with adjustable airflow via a damper system. The take-up and winding section can handle films up to 80 cm in width and rolls up to 100 cm in diameter, featuring a double winder with independent drive controls for haul-off and winding units. The extrusion line supports processing of various polyethylene types including LDPE, HDPE, and MDPE, and is capable of producing shrink films, packaging films, bags, agricultural films, courier films, as well as performing embossing, perforation, and corona treatment. The machine includes a corona treatment unit, rotating die head, a 4-meter movable tower, and a barrier screw design. Recent maintenance includes servicing of the electrical panel, motor, gearbox, heater bands, air ring, and polishing of the die. Visual inspection shows the machine has a blue frame with metal rollers, a control panel with buttons and display on the right side, and a control cabinet with analog meters and switches. The machine appears used but in good condition, with some signs of wear and dust, and includes metal stairs for operator access. A large roll of white plastic film is present on the bottom rollers during operation. The extrusion head bears the CMS brand and is connected with several hoses and cables. The feeder system includes a hopper containing white plastic granules and an electric motor. The screw and barrel may require refurbishment in the future. This extrusion line is currently operational and available for inspection in Istanbul, Turkey.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
**Machine Description: 80 CM Mono PE Blown Film Extrusion Line**
**Running Condition:** Partially Overhauled (2025)
**Inspection:** Available under power
**Main Technical Specifications**

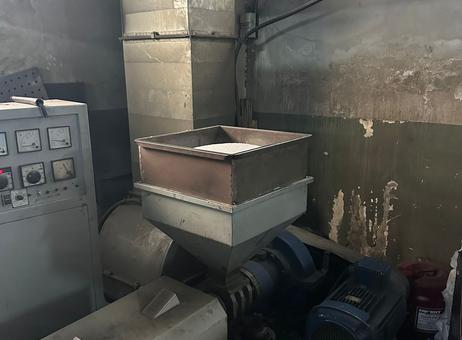

**Extruder:**
- Screw diameter: 45 mm
- L/D ratio: 3:1 (effective 3.4:1 due to special shaft design)
- Motor power: 15 kW
- Output capacity: up to 50 kg/hour
- Gearbox: 3-stage with 1/10 reduction
- Features: Corona treatment unit, rotating die head, 4-meter movable tower, barrier screw design
**Die System:**

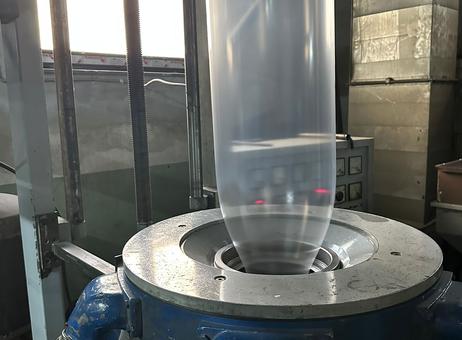

- Main die: 120 mm
- Spare die: 60 mm
- Die: Polished
- Thickness capability: Suitable for general packaging and technical films
**Cooling System:**
- Air ring: Single lip
- Cooling fan: 2 kW
- Airflow: Adjustable via damper system

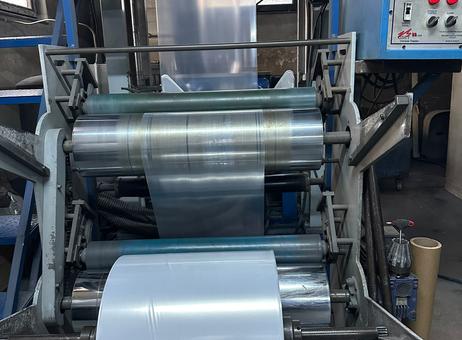

**Take-Up & Winder:**
- Max film width: 80 cm
- Max roll diameter: 100 cm
- Winder system: Double winder
- Drive control: Independent for haul-off and winding units
**Production Capability:**
- Suitable for:
- LDPE / HDPE / MDPE films
- Shrink film
- Packaging film
- Bag production
- Agricultural film
- Courier film
- Embossing
- Perforation
- Corona treatment
- Recycled material processing
**Condition:**

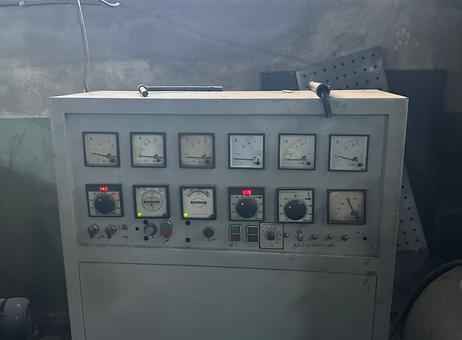

- Electrical panel revised (2025)
- Motor serviced
- Gearbox serviced
- Heater bands serviced
- Air ring serviced
- Die polished
- Machine in working condition
- Note: Screw and barrel recommended for future refurbishment
This 80 cm mono PE blown film extrusion line is currently operational and ready for inspection in Istanbul, Turkey.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 4 |
| Last activity | Oct. 15, 2026 |
**Machine Description: 80 CM Mono PE Blown Film Extrusion Line**
**Running Condition:** Partially Overhauled (2025)
**Inspection:** Available under power
**Main Technical Specifications**
**Extruder:**
- Screw diameter: 45 mm
- L/D ratio: 3:1 (effective 3.4:1 due to special shaft design)
- Motor power: 15 kW
- Output capacity: up to 50 kg/hour
- Gearbox: 3-stage with 1/10 reduction
- Features: Corona treatment unit, rotating die head, 4-meter movable tower, barrier screw design
**Die System:**
- Main die: 120 mm
- Spare die: 60 mm
- Die: Polished
- Thickness capability: Suitable for general packaging and technical films
**Cooling System:**
- Air ring: Single lip
- Cooling fan: 2 kW
- Airflow: Adjustable via damper system
**Take-Up & Winder:**
- Max film width: 80 cm
- Max roll diameter: 100 cm
- Winder system: Double winder
- Drive control: Independent for haul-off and winding units
**Production Capability:**
- Suitable for:
- LDPE / HDPE / MDPE films
- Shrink film
- Packaging film
- Bag production
- Agricultural film
- Courier film
- Embossing
- Perforation
- Corona treatment
- Recycled material processing
**Condition:**
- Electrical panel revised (2025)
- Motor serviced
- Gearbox serviced
- Heater bands serviced
- Air ring serviced
- Die polished
- Machine in working condition
- Note: Screw and barrel recommended for future refurbishment
This 80 cm mono PE blown film extrusion line is currently operational and ready for inspection in Istanbul, Turkey.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
