Contact us to receive an offer.
| Manufacturer | Turkey |
|---|---|
| Model | 110 CM MONO PE EXTRUSION LINE |
| Year | 2025 |
| Location | Turkey
|
Manufacturer: Turkey
Model: 110 CM MONO PE EXTRUSION LINE
Year of Manufacture: 2025

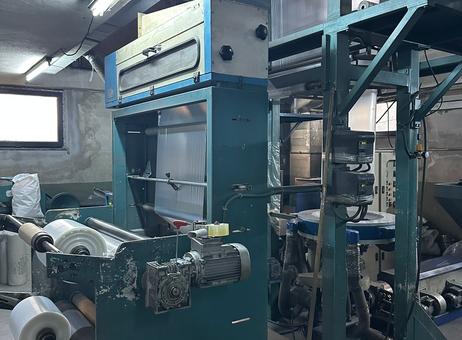

This extrusion line is designed for producing mono-layer polyethylene films with a maximum film width of 110 cm. The extruder features a screw diameter of 63 mm and an L/D ratio of 3:1 (effective 3.4:1), powered by a 32 kW motor. It has a 3-stage gearbox and is capable of an output capacity of up to 80 kg per hour.

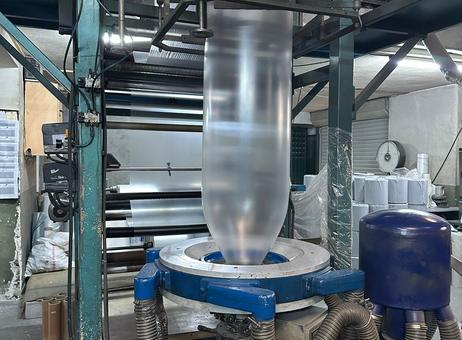

The line includes a rotating die head with a main die size of 140 mm and a polished spare die of 100 mm, suitable for producing films with thicknesses ranging from 30 to 500 microns. A barrier screw has been renewed as part of maintenance.

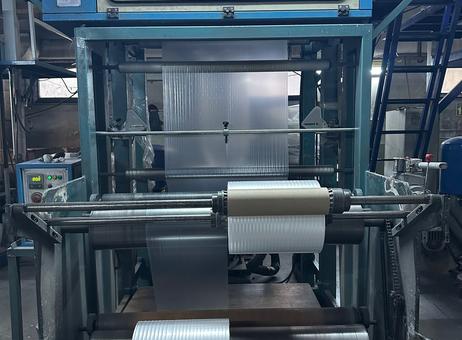

Cooling is managed by a single-lip air ring and a 3 kW fan. The winding section is equipped with a double winder featuring independent drives, and multiple rollers guide the plastic film through the system.
This line supports processing of LDPE, HDPE, and MDPE materials, suitable for applications such as shrink films, packaging, agricultural films, and courier films. It also offers features including embossing, perforation, and the ability to process recycled materials.
Maintenance and overhaul work completed in 2025 includes renewal of the screw, reconditioning of the barrel, polishing of the die, revision of the electrical panel, and servicing of the motor, gearbox, heater bands, and air ring.

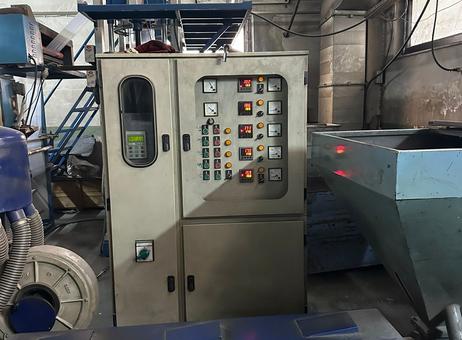

The machine is currently in production and available for inspection in Istanbul, Turkey. It shows signs of use such as visible wear and paint chipping on the metal frame. The control panel with digital display and buttons is located on the left side of the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: 110 CM MONO PE EXTRUSION LINE - FULLY OVERHAULED IN 2025 – WITH SPARE DIE – RUNNING CONDITION
Manufacturer: Turkey
Model: 110 CM MONO PE EXTRUSION LINE
Year of Manufacture: 2025
Working Hours: Approximately 1000 hours
Technical Condition: Good
State: In Production
Main Technical Specifications:
Extruder:
- Screw Diameter: 63 mm
- L/D Ratio: 3:1 (effective 3.4:1)
- Motor Power: 32 kW
- Output Capacity: Up to 80 kg/hour
- Gearbox: 3-stage
- Corona Unit: Installed
- Rotating Die Head: Yes
- Movable Tower: 5-meter
- Barrier Screw: Renewed
Die System:
- Main Die: 140 mm
- Spare Die: 100 mm
- Die: Polished
- Thickness Range: 30 – 500 microns
Cooling:
- Air Ring: Single lip
- Fan: 3 kW
Winder:
- Max Film Width: 110 cm
- Winder Type: Double
- Drives: Independent
Production Capability:
- Materials: LDPE / HDPE / MDPE
- Applications: Shrink, packaging, agricultural, courier films
- Features: Embossing and perforation, recycled material processing
Overhaul Details (2025):
- Screw: Renewed
- Barrel: Reconditioned
- Die: Polished
- Electrical Panel: Revised
- Motor: Serviced
- Gearbox: Serviced
- Heater Bands: Serviced
- Air Ring: Serviced
Machine is in very good working condition and available for inspection in Istanbul, Turkey.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
