Contact us to receive an offer.
| Manufacturer | Tucal |
|---|---|
| Model | HPF |
| Year | 2015 |
| Location | Norway
|
| Category | Refrigeration - cold rooms / cold stores |
| Min Temperature | -45 °C |
| Max Temperature | 40 °C |
| Length x width x height | 3000.0 × 1300.0 × 2300.0 |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 17/10/2026 |
| Product id | P240711139 |
| Language |
Студена стая Tucal HPF
Chladírna Tucal HPF
Tucal HPF Kølerum
Tucal HPF Kälteraum
Κρύο δωμάτιο Tucal HPF
Tucal HPF Cold room
Cámara frigorífica Tucal HPF
Chambre froide Tucal HPF
Hladna soba Tucal HPF
Tucal HPF Hideg szoba
Cella frigorifera Tucal HPF
Šaltas kambarys Tucal HPF
Tucal HPF Koude kamer
Chłodnia Tucal HPF
Quarto frio Tucal HPF
Cameră rece Tucal HPF
Tucal HPF Холодильная камера
Hladno soba Tucal HPF
Tucal HPF Kallt rum
Soğuk oda Tucal HPF
|

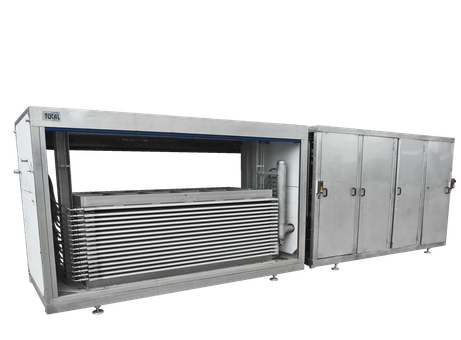

The Tucal HPF Horizontal Plate Freezer is an industrial refrigeration unit designed for freezing products arranged in frames into blocks. Manufactured in 2015 by Tucal, this model HPF offers reliable freezing capabilities suitable for various industrial applications.
The freezer measures 3000 mm in length, 1300 mm in width, and 2300 mm in height, providing a compact yet efficient footprint. It operates within a temperature range from -45°C to +40°C, accommodating a wide spectrum of freezing and cooling requirements. The unit includes 15 stations and is equipped with a compressor housed in a soundproof cabinet attached to the side, which helps reduce operational noise.
The freezer features 11 plates and uses ammonia (NH3) as the refrigerant. It is designed to work at a test pressure of 30 bar. The frames intended for use with this freezer are made of stainless steel, enhancing durability and hygiene. Note that frames and block outriggers are not included with the unit.
The sheet size for the freezing plates is 2045 x 1200 mm. Frame dimensions are approximately 48 cm in length and 25 cm in width, with external measurements slightly larger at 52 cm by 29 cm.
From visual inspection, the unit's exterior metal surfaces appear clean and well-maintained without visible rust or damage. It is supported by small legs that elevate it slightly from the ground, facilitating installation and maintenance access. The main refrigeration unit is accompanied by a secondary cabinet with multiple doors and handles, likely providing access to the compressor and related components.
This Tucal HPF Horizontal Plate Freezer is a robust and practical choice for industrial freezing needs, combining effective temperature control with a solid build and soundproofed compressor housing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Introducing the Tucal HPF Horizontal Plate Freezer:
- Manufacturer: Tucal
- Model: HPF
- Year of Manufacture: 2015
- Condition: Good, working
- Designed for freezing products in frames to blocks
- 15 Stations with a compressor in a soundproof cabinet on the side
- Frames and block outriggers are not included
- Sheet size: 2045 x 1200 mm
- Freezer Dimensions: 3000 x 1300 x 2300 mm
- Soundproof Cabinet Dimensions: 3000 x 1500 x 2320 mm
- Simple Freezer Frames Dimensions: Length: 48 cm, Width: 25 cm
- External Measurements of Frames: Length: 52 cm, Width: 29 cm
- Number of Plates: 11
- Number of Stations: 15
- Refrigerant: NH3 (Ammonia)
- Working Temperature: from -45 to +40 degrees C
- Test Pressure: 30 bar
- Frame made of stainless steel
Don't miss out on this efficient Tucal HPF Horizontal Plate Freezer, ideal for your freezing needs.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
