| Manufacturer | Trumpf |
|---|---|
| Model | Trumpf FIBER TruLaser 3030 (L49) |
| Year | 2015 |
| Location | Poland
|

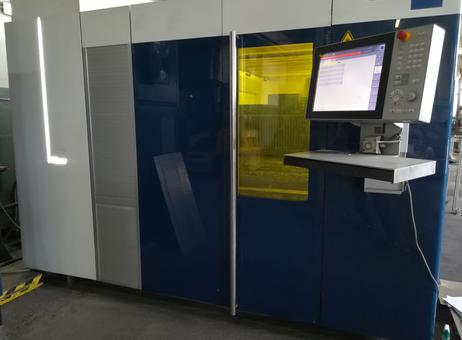

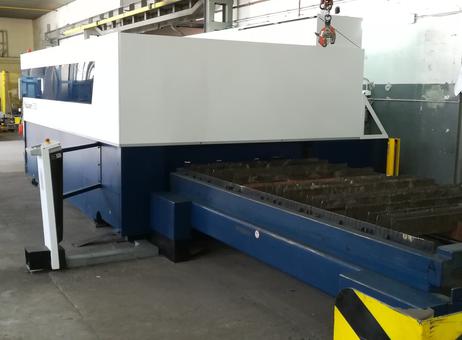

For sale is a Trumpf FIBER TruLaser 3030 (L49) laser cutting machine, manufactured in 2015. This fiber laser cutter features a working area of 3000 x 1500 mm along the X and Y axes, with a Z-axis work area of 115 mm without the RotoLas attachment and 205 mm when equipped with RotoLas. It is powered by a 4000 W laser, suitable for cutting various metals with maximum thicknesses including 20 mm for O2 structural steel, 15 mm for N2 stainless steel and aluminum, 6 mm for copper and brass, and 4 mm for titanium.
The machine offers high precision with a maximum position spread of ±0.03 mm, a position difference of ±0.05 mm, and the smallest programmable distance dimension of 0.001 mm. It is controlled by a TRUMPF CNC system based on the SINUMERIK 840D sl, featuring a 2 GB main memory, dual 160 GB hard drives, and a 17-inch TFT color monitor with a resolution of 1280 x 1024 pixels. USB connectivity is also available.
Electrical requirements include a 400 V / 50 Hz network, 42.0 kVA connected load, 24 V control voltage, and necessary protection of 3x 80A. Compressed air connection requires 7-10 bar, nitrogen at 30 bar, and oxygen at 20 bar.
The machine's exterior is intact with only minor surface marks. It includes a control panel with a monitor mounted on the side behind a yellow-tinted protective window, and a metal platform attached to the side. Safety features include visible yellow laser warning signs and an emergency stop button on a white pedestal with additional control buttons. Inside, the laser cutting bed is equipped with protective side panels and contains a metal sheet with multiple cut-out shapes. The laser head assembly is positioned above the cutting bed. The machine is shown in a workshop environment and its control monitor displays the machine interface with measurements and a 3D model of the TruLaser 3030.
Working hours are recorded at 42,371 hours with laser on time of 15,296 hours. Pulse counter stands at 1,458,266,082. This machine is suitable for industrial laser cutting applications requiring precision and a large working area.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
We have a Trumpf FIBER TruLaser 3030 (L49) laser cutter for sale.
Basic parameters:

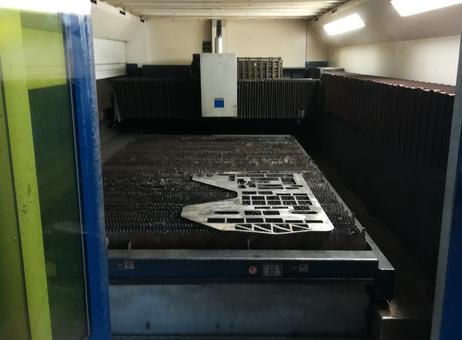

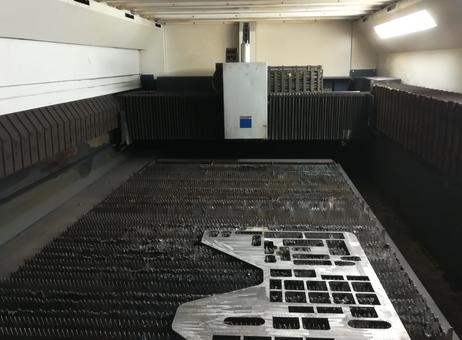

- X / Y axis working area: 3000 x 1500 mm
- Z axis work area, without RotoLas: 115 mm, with RotoLas: 205 mm
Maximum sheet thickness:
- O2 structural steel: --- 20 mm
- N2 stainless steel: --15 mm
- N2 aluminum: ---- 15 mm
- copper: - 6 mm
- brass: ---- 6 mm
- titanium: ---- 4 mm
ACCURACY:
- maximum spread of Ps max position: + -0.03 mm
- difference in Pa position: + -0.05 mm
- the smallest programmable distance dimension: 0.001 mm

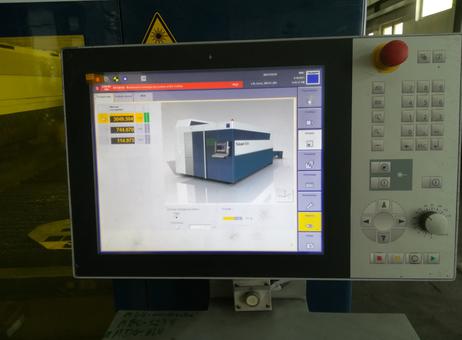

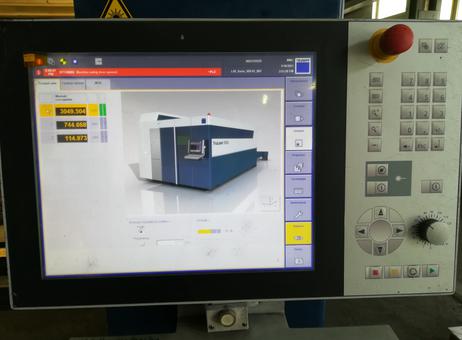

Control system:
- CNC control: TRUMPF CNC based on the SINUMERIK 840D sl
- main memory: PC 2 GB
- hard drive: 2 x 160 GB
- color monitor: TFT 17 "
- screen resolution: 1280 x 1024 px
- USB connector
Connection:
-L49 type
-Year of production 04-2015
- 4000 watt laser power
- network: 400 V / 50 Hz
- connected load: 42.0 kVA
- control voltage: 24 V.
- necessary protection: 3x 80A
- compressed air connection: 7-10 bar
- N2 nitrogen connection: 30 bar
- O2 oxygen connection: 20 bar
working hours (h) --- 42371
laser on (h) ---- 15296
Pulse counter ---- 1 458 266 082
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the total operating time of this Trumpf FIBER TruLaser 3030?
This Trumpf FIBER TruLaser 3030 (L49) laser cutting machine has a total operating time of 42,371 hours.
How many hours has the laser been on for this equipment?
This equipment has a laser on time of 15,296 hours.
What is the pulse counter reading for this Trumpf FIBER TruLaser 3030?
This Trumpf FIBER TruLaser 3030 (L49) laser cutting machine features a pulse counter reading of 1,458,266,082.
When was this Trumpf FIBER TruLaser 3030 manufactured?
This Trumpf FIBER TruLaser 3030 (L49) laser cutting machine was manufactured in 2015.
Is this equipment available for inspection under power?
This equipment is available for inspection under power.
Is this Trumpf FIBER TruLaser 3030 currently operational?
This Trumpf FIBER TruLaser 3030 (L49) laser cutting machine is currently connected and operational.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
