| Manufacturer | TRUMPF |
|---|---|
| Model | TruLaser 3030 |
| Year | 2013 |
| Location | Poland
|

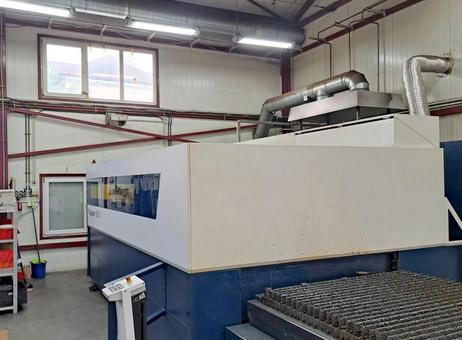

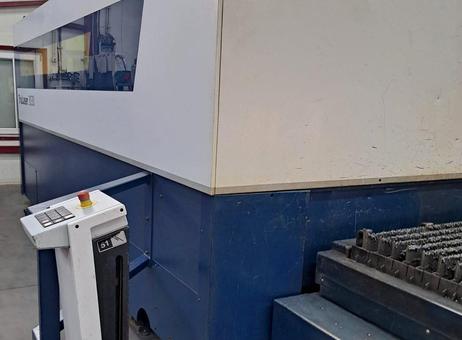

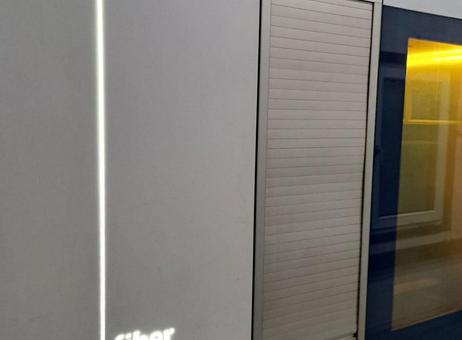

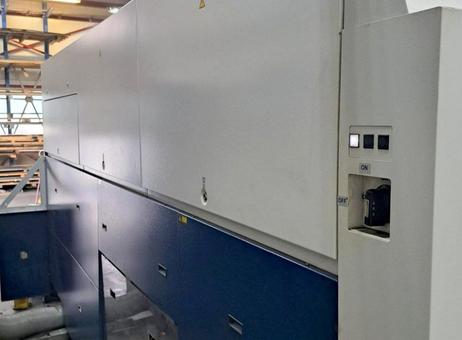

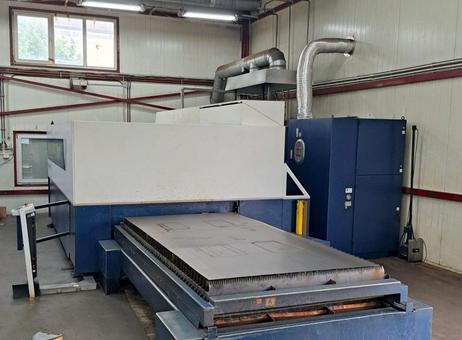

The TRUMPF TruLaser 3030 FIBER laser cutting machine, manufactured in Germany in 2013, utilizes advanced fiber optic technology for precise cutting of mild steel and stainless steel sheets. With the addition of specialized technological data packages, it is also capable of cutting brass and copper materials.
This machine features a robust design that minimizes vibrations during directional changes, ensuring high-quality cuts. The laser source is a TRUMPF TruDisk 3001, delivering a powerful 3 kW laser beam to a universal cutting head equipped with an adaptive lens system. This movable lens system optimizes the laser beam geometry for different sheet thicknesses and materials.
The machine's axes are driven by a direct torque drive on the X axis and direct linear drives on the Y and Z axes, combined with hardened, high-precision guides. This configuration allows for high acceleration and working speeds, with positioning speeds up to 140 m/min when moving simultaneously in the X and Y directions.
The cutting workspace is fully illuminated and includes an automatic pallet changer that enables parallel loading and unloading of workpieces weighing up to 900 kg without interrupting the cutting process.

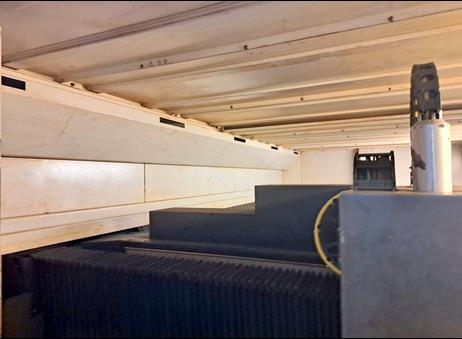

Safety is a key feature of the TruLaser 3030, with a closed-frame design that includes a lifting roof for effective extraction and protection against scattered radiation, as well as fixed guards with certified glass for operator visibility and safety. Contaminants are managed by a multi-chamber extraction system with a compact filter.

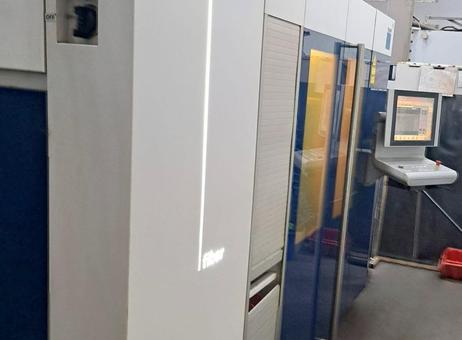

Equipped with a SIEMENS SINUMERIK 840D SL CNC controller featuring a touchscreen, the machine offers extensive programming capabilities and numerous systems to enhance production efficiency and reliability. Additional features include automatic nozzle cleaning, programmable cutting gas pressure, compressed air cutting, and a closed cooling system.
Technical specifications include a maximum cutting thickness of 20 mm for structural steel (O2), 15 mm for stainless steel (N2), and up to 6 mm for brass and copper under specified gas conditions. The machine operates with a connected load of 40 kVA and requires power supply of 400 V at 50 Hz.

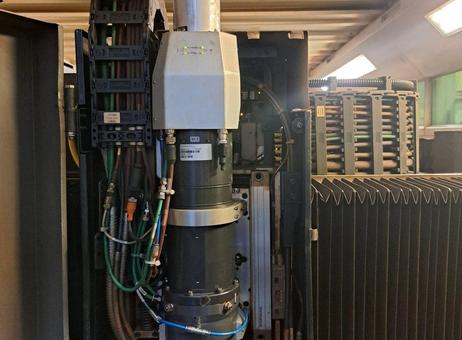

In July 2023, the machine was updated with a new SPK Cutting unit KL51 and an LLK-D 0075 fiber optic cable, enhancing its cutting performance. Accessories include light curtains for work area protection, protective glass to prevent lens contamination, an oil spray device, workspace lighting, and a longitudinal conveyor belt.
This comprehensive setup makes the TRUMPF TruLaser 3030 a versatile and efficient solution for industrial laser cutting applications involving various metals.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The TRUMPF TruLaser 3030 FIBER laser was manufactured in Germany in 2013. The laser machine utilizes modern fiber optic cutting technology to process mild steel and stainless steel sheets. By equipping the machine with special technological data packages, it can also cut brass and copper.
The TRUMPF fiber laser is characterized by extensive features, extensive cutting capabilities, and a robust design that prevents vibrations when changing direction. The TRUMPF TruDisk 3001 laser source delivers a high-quality 3 kW laser beam directly to the universal cutting head with an adaptive lens system. The movable lens system located in the head ensures optimal laser beam geometry for various sheet thicknesses and materials. The laser axis is moved by a direct torque drive (X axis) and direct linear drives in the Y and Z axes, which, combined with hardened, high-precision guides, enables high acceleration and high working speeds. Laser cutting takes place in a fully illuminated workspace with an automatic pallet changer for parallel loading and unloading of workpieces weighing up to 900 kg, on easily accessible pallets, without interrupting the cutting process.
The TruLaser 3030 (L49) laser cutting machine is designed to provide maximum user safety during processing. Its closed-frame design features a lifting roof for effective extraction and protection against scattered radiation, as well as fixed guards with certified glass, ensuring visibility during the cutting process and operator safety. Contamination generated in the workspace is eliminated by a multi-chamber extraction system with a compact filter. The TruLaser 3030 fiber laser is offered with a wide range of accessories, including light curtains to protect the machine's work area, a SIEMENS SINUMERIK 840D SL CNC controller with a touchscreen, and many additional systems designed to increase the efficiency and reliability of the production process. In July 2023, the machine was equipped with a new SPK Cutting unit KL51 and an LLK-D 0075 fiber optic cable.
Technical data of the TRUMPF TruLaser 3030 laser cutting machine
- Laser power: 3000 W
- Feeds in the X/Y/Z axes: 3000/1500/115 mm
- Positioning speed with simultaneous operation of the X and Y axis drives: 140 m/min
- Maximum cutting thickness (O2 structural steel): 20 mm
- Maximum cutting thickness (N2 stainless steel): 15 mm
- Maximum cutting thickness (O2 copper): 6 mm
- Maximum cutting thickness (N2 copper): 2 mm
- Maximum cutting thickness (N2 brass): 6 mm
- Maximum sheet weight: 900 kg
- Smallest programmable step: 0.001 mm
- Offset Positioning accuracy (PA): ± 0.05 mm
- Mean positioning deviation (PS): ± 0.03 mm
- Laser beam wavelength: 1.03 μm
- Compressed air cutting
- Automatic nozzle cleaning
- Programmable cutting gas pressure
- Automatic shutdown
- Integrated technological data
- Lifting roof
- Laser cooling: Closed cooling system
- Operating hours: 24854 h
- Laser on time: 13275 h
- Compressed air connection: 7-10 bar
- Average compressed air consumption: 35 Nm²/h
- Nitrogen connection: 30 bar
- Oxygen connection: 20 bar
- Connected load: 40 kVA
- Control voltage: 24 V
- Power supply: 400 V; 50 Hz
TRUMPF TruLaser 3030 3 kW Laser Equipment
- CNC controller: SIEMENS SINUMERIK 840D SL
- Disk laser: TRUMPF TruDisk 3001
- Copper and brass cutting package
- PierceLine system
- FocusLine system
- NitroLine system
- PlasmaLine system
- ControlLine system
- FastLine system
- FlyLine system
- Automatic pallet changer

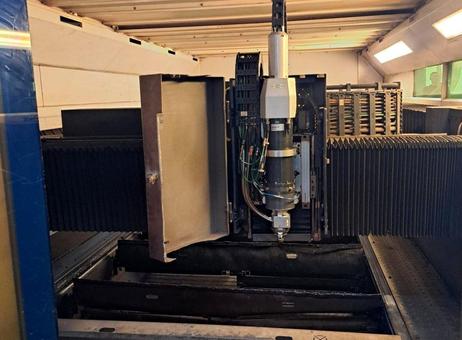

- Universal cutting head with adaptive lens system
- Protective glass to prevent lens contamination
- Extended workshop programming

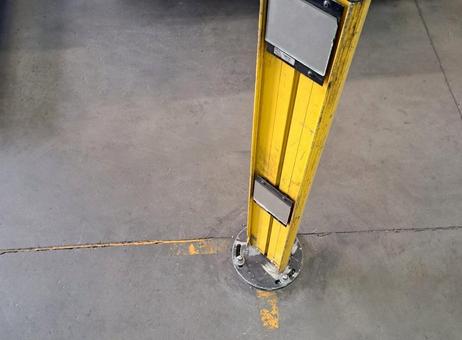

- Light curtains

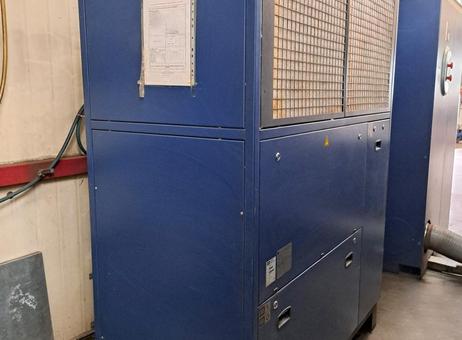

- Cooling unit
- Oil spray device
- Workspace lighting
- Mounting brackets (2 pcs.)
- Machine guards with glass
- Compact filter
- RJ45 port
- USB port
- Integrated control cabinet
- Longitudinal conveyor belt
- Multi-chamber Extraction system
