Price on request
View priceContact us to receive an offer.
| Metal length | 3000 mm |
| Power | 3200 W |
| Metal width | 1500 mm |
| Option to cut tubes | no |
| Max thickness | 20 mm |
| CNC | yes |
| CNC type | Siemens Sinumerik 840D |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 12/12/2025 |

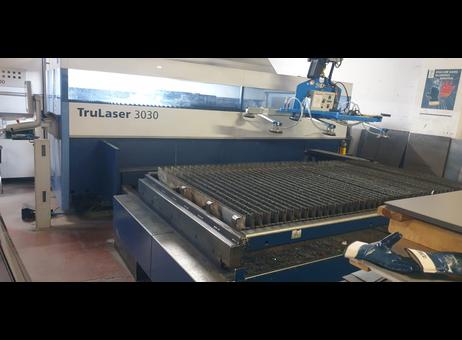

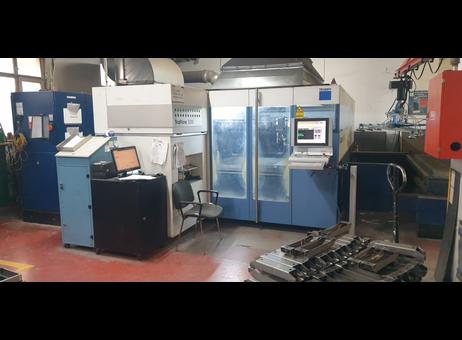

This listing features a Trumpf TruLaser 3030 CNC laser cutting machine, manufactured in 2002. It is equipped with a 3200 Watt CO2 TruFlow laser unit, suitable for precise cutting tasks. The machine offers a maximum working range of 3000 mm in length and 1500 mm in width, with a maximum sheet thickness capacity of 20 mm for steel. It is designed for cutting various metals, including stainless steel and aluminum, with maximum thicknesses of 12 mm and 8 mm respectively.

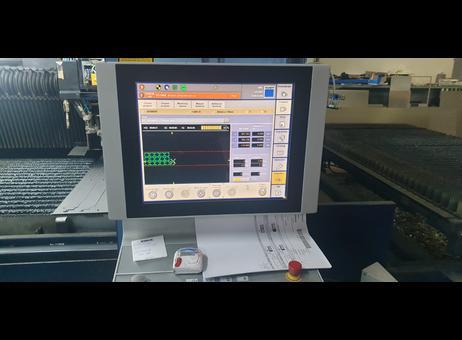

The system is controlled via a Siemens Sinumerik 840D control panel, which includes a workstation with a monitor and keyboard for programming and operation. The machine features a closed frame with an integrated laser unit, ensuring safety and containment of the laser process. It also includes an automatic pallet changer and a longitudinal conveyor belt designed to handle small parts and waste efficiently.

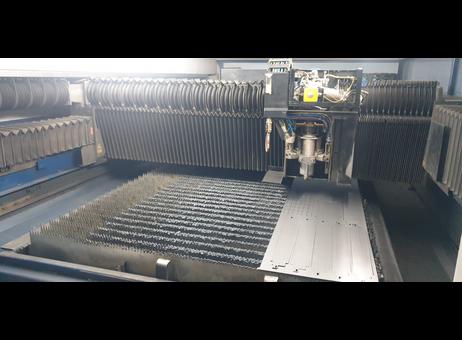

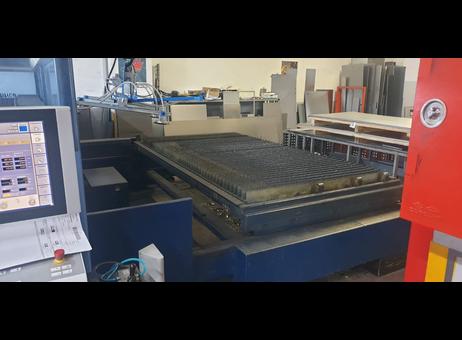

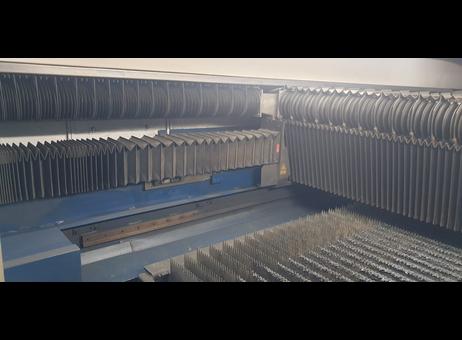

For material handling, a vacuum lifting device with suction cups is installed above the cutting bed, facilitating easier loading and unloading of sheets. The cutting bed itself is equipped with metal spikes to support the material during processing. Protective accordion-style bellows cover moving parts to prevent dust ingress, and these bellows appear to be in good condition without visible damage.

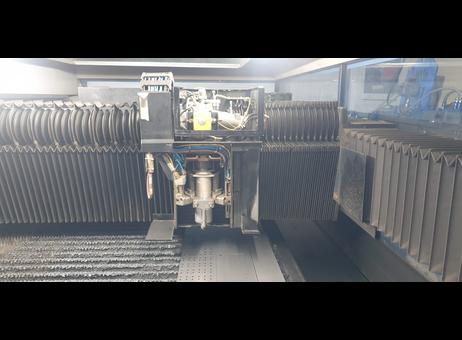

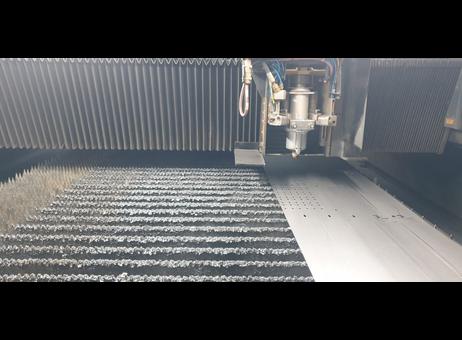

The machine's laser cutting head includes quick-change capabilities and is fitted with 5" and 7.5" lenses. Safety features include multi-beam light barriers, a fully encapsulated and ventilated beam guide, monitoring systems, multi-chamber suction, and a compact dust extractor housed within a protective cabinet.

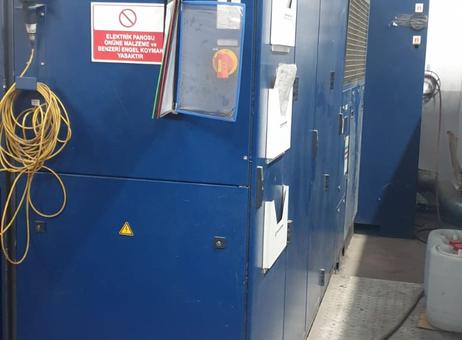

The electrical cabinet is large and painted blue, showing minor signs of wear but remains structurally sound. The overall machine and surrounding area display typical signs of use, such as some dust and metal debris on the cutting bed, indicating it has been operated but maintained.
This TruLaser 3030 is available for inspection, and potential buyers are encouraged to view the machine to assess its condition and suitability for their production needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The machine is still operational and can be inspected at any time.
CNC laser cutting system TruLaser 3030 3200 Watt
X Working range max: 3000 mm
Y Working range max: 1500 mm
Z Working range max: 115 mm
Control Siemens Sinumerik 840D
Laser power 3200 watts
Working hours 75000 hours
Sheet thickness St. Max: 20 mm
Sheet thickness Va. Max: 12 mm
Sheet thickness Al. Maximum: 8 mm
Standard equipment:
- Closed machine frame with integrated laser unit
- Laser unit: CO2 laser TruFlow 2000 maintenance-free turbo radial blower with high-frequency excitation,
reflecting telescope, cooling unit, logbook function
- Automatic pallet changer
- Longitudinal conveyor belt for small parts/waste
- Drives Maintenance-free three-phase servo motors
- Cutting head quick-change device
- Laser cutting head with 5" lens and laser cutting head
7.5" lens
- Cutting gas pressure setting programmable
- Control Line
- Focus Line
- laser power control
- Laser diode position
- Nitro Line
- Sprint Line
- Contour Line
- Plasma Line
- Automatic sheet metal outer edge detection
- Programmable power cycles
- Micro welding
- Automatic shutdown
- Workspace lighting
- Workshop programming
- Safety Multi-beam light barriers, beam guide
fully encapsulated and ventilated, monitoring system,
Multi-chamber suction and compact dust extractor, protective cabinet
- Network connection with installation via teleservice (RJ45)
- 3.5" floppy disk drive
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
