| Manufacturer | Trumpf |
|---|---|
| Model | TruBend 5170 |
| Year | 2015 |
| Location | Germany
|
This listing is for a Trumpf TruBend 5170 CNC press brake, manufactured in 2015. The machine offers a pressing force of 170 tons and features a bending length of 4100 mm. It is equipped with a four-axis back gauge system (X, R1, Z1, Z2), providing precise positioning capabilities. The machine frame is designed for stability, and the ram is highly resistant to torsional forces with spherical suspension and adjustable tilt.
The TruBend 5170 utilizes an electro-hydraulic down stroking drive with advanced 4-cylinder technology, proportional valve technology, and a double pump system. It incorporates modern block hydraulics with control valves mounted directly on the cylinder, ensuring efficient operation. The press brake also includes an electronic pressure balance and a measuring system with centered glass scales and temperature compensation for accuracy.
Tool holding is versatile, with a manual hardened, self-centering upper tool holder for vertical tool changes and a hydraulically clamped, hardened lower tool holder. The lower tool adjustment is programmable pneumatically with two positions. The back gauge system features rack-and-pinion drives for the X and R axes, equipped with two finger stops adjustable safely from the front.
Control is managed via the TASC 6000 system, featuring an LCD panel on an adjustable-height control panel, network connectivity, and a foot switch for operation. Safety features include standard devices, integrated side doors, and an automatic roller shutter at the rear. Additional equipment includes CNC crowning and the BendGuard safety device.

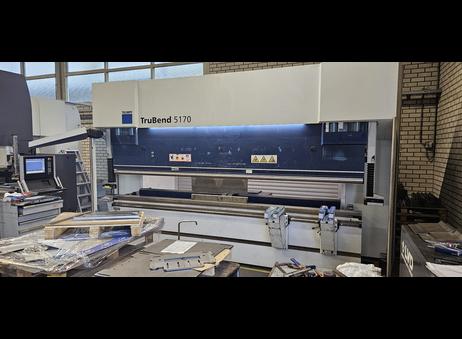

The machine shows some signs of wear and scratches on its surface but no major visible damage. The control panel with screen and buttons is located on the left side, and two clamping devices are attached to the lower beam. The press brake is situated in an active workshop environment with pallets and tools nearby.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Trumpf TruBend 5170
Year: 10/2015
Working hour: about 21.000 h
Hours hydraulic on: about 13.000 h
Hours beam: about 1.500 h
Press force: 170 to
Bending length: 4.100 mm
Stroke: 445 mm
Standard equipment
- Stable machine frame
- Ram highly resistant to torsional forces
- Spherical ram suspension, with ram tilt
- Electro-hydraulic down stroking drive with 4-cylinder technology
- Proportional valve technology and activatable double pump
- Modern block hydraulics with control valves mounted on the cylinder
- Electronic pressure balance
- Measuring system with centered glass scales and temperature compensation
- Manual wedge crowning, integrated in the table
- Upper tool holder “New Standard Clamping”, manual, hardened, self-centering, for vertical tool change
- Lower tool holder with hydraulic clamping, hardened
- Lower tool adjustment, programmable (pneumatic, 2 positions)
- Back gauge system 2-axes with rack-and-pinion drive for X and R axes, 2 finger stops with safe adjustment from the front
- Electrical cabinet cooling
Control
- TASC 6000
- Control panel with LCD panel
- adjustable in height
- Network connection
- Foot switch
Safety
- Standard safety devices
- Integrated side doors
- Automatic roller shutter at the rear
Additional equipment
- 4-axis back gauge system (X, R1, Z1, Z2)
- Upper tool holder hardenend with hydraulic clamping
- CNC-crowning
- Safety device BendGuard
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What year was this Trumpf TruBend 5170 manufactured?
This Trumpf TruBend 5170 is a CNC bending machine from the year 2015.
Is this Trumpf TruBend 5170 a used machine?
This Trumpf TruBend 5170 is used.
Are any tools included with this equipment?
This equipment does not include any tools as part of the offer.
What is the strength of this Trumpf TruBend 5170?
This Trumpf TruBend 5170 has a strength of 170.0 T.
What is the folding length of the machine?
This Trumpf TruBend 5170 features a folding length of 4100.0 mm.
What is the distance between uprights for this model?
This Trumpf TruBend 5170 has a distance between uprights of 2690.0 mm.
What is the throat size of the machine?
This Trumpf TruBend 5170 includes a throat of 420.0 mm.
What is the vertical stroke of this Trumpf TruBend 5170?
This Trumpf TruBend 5170 offers a vertical stroke of 445.0 mm.
What is the working speed of the machine?
This Trumpf TruBend 5170 operates at a working speed of 10.0 mm/s.
How many axes does this model have?
This Trumpf TruBend 5170 is equipped with 4 axes.
What is the engine power of the machine?
This Trumpf TruBend 5170 has an engine power of 28.0 kW.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
