| Manufacturer | Toshiba |
|---|---|
| Model | DC 800 CL-HT |
| Year | 1999 |
| Location | Canada
|
| Category | Miscellaneous presses and forging machines |
| Force | 882 T |
| Weight | 39019.9637 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 18/10/2026 |
| Product id | P2402281740 |
| Language |
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
USED TOSHIBA 800 TON COLD CHAMBER DIE CASTING MACHINE
Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT None
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT None
Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT
None Toshiba DC 800 CL-HT
Toshiba DC 800 CL-HT None
Toshiba DC 800 CL-HT
|
This Toshiba DC 800 CL-HT industrial press machine, manufactured in 1999, offers a robust locking force of 882 tons, making it suitable for heavy-duty pressing applications. The machine weighs approximately 39,020 kg (about 86,000 lbs), reflecting its substantial industrial build. It features a die close distance between tie bars measuring 36.6 x 36.6 inches, with tie bar diameters of 7.1 inches, allowing accommodation of sizable dies. The stationary platen dimensions are 55.1 x 55.1 inches, providing a large working surface area.
The press is equipped with a die injection force ranging from 26.5 to 67.2 tons, supporting a variety of injection molding tasks. Die thickness capacity ranges from 15.7 to 37.4 inches (400 to 950 mm), with a die stroke of 29.9 inches (760 mm), enabling versatile die configurations.
Control features include electric motorized die height adjustment and hydraulic adjustment of shot positions, facilitating precise operation. The machine also incorporates hydraulic bumper plate ejection and two hydraulic core circuits on the moving platen, enhancing functionality and efficiency. Additionally, there is a top operator side automatic tie bar puller for ease of die handling.

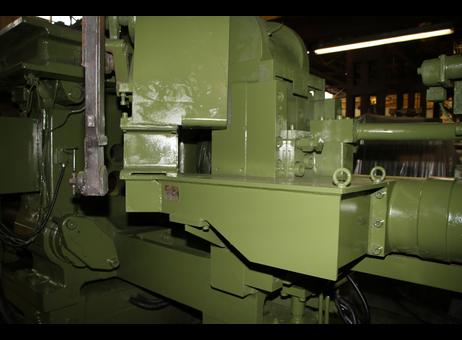

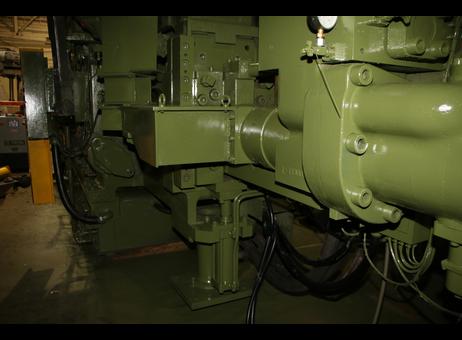

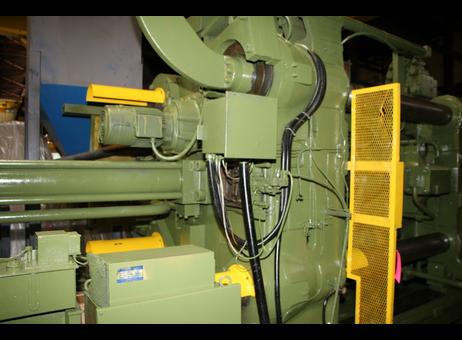

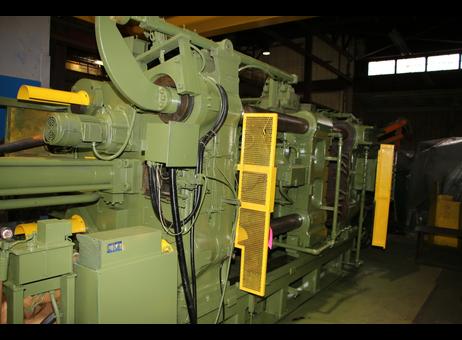

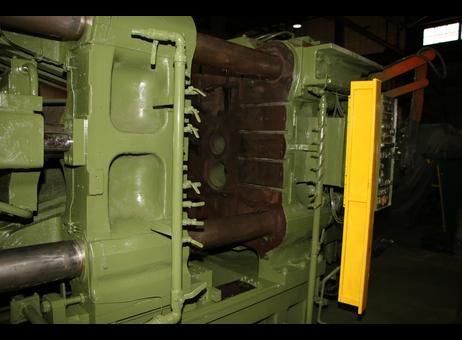

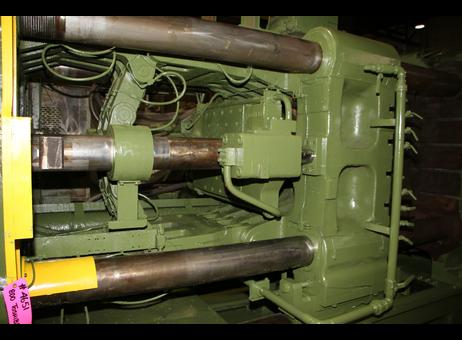

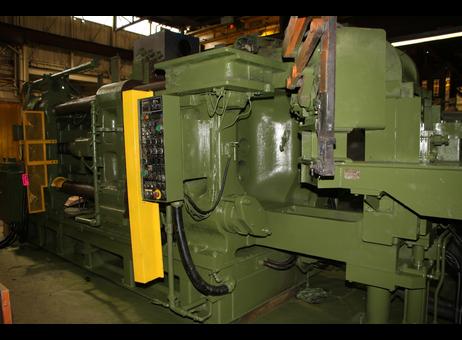

Visually, the press is painted green with yellow safety guards, and it includes a control panel mounted on a yellow vertical support, fitted with multiple buttons and switches for operational control. Two large horizontal cylindrical rods are visible on the left side of the machine. The overall condition appears clean and freshly painted, with no visible rust or damage, indicating good upkeep.
This machine is ready for inspection and/or shipping. Please note that technical data is provided without obligation and is subject to prior sale or change without notice.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
SPECIFICATIONS IMPERIAL SHOW METRIC
DIE CLOSE
Locking Force 882 tons
Distance Between Tie Bars (W x H) 36.6 x 36.6 inch
Tie Bar Diameter: 7.1 inch
Stationary Platen (W x H): 55.1 x 55.1 inch
INJECTION
Die Injection Force (Min-Max): 26.5 - 67.2 tons
Machine Weight (approx): 86000 lbs
ADDITIONAL SPECIFICATIONS
Die Thickness (Min-Max): 15.7" - 37.4" / 400 - 950 mm
Die Stroke: 29.9" /760 mm
CONTROL
Electric Motorized Die Height Adjustment
Hydraulic Adjustment of Shot Positions
Hydraulic Bumper Plate Ejection
Top Operator Side Automatic Tie Bar Puller
Two Hydraulic Core Circuits on Moving Platen
AVAILABILITY AND TERMS
Machine is ready for inspection and/or shipping
Technical data without obligation – subject to prior sale
Specifications and location are subject to change without notice
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
