| Manufacturer | Toshiba |
|---|---|
| Model | BTD-13F-R22 |
| Year | 1996 |
| Location | Turkey
|

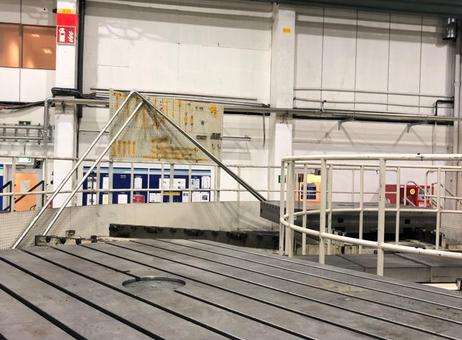

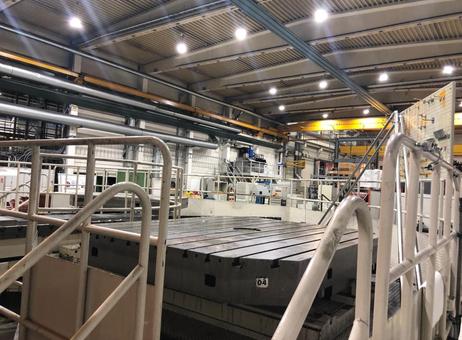

The Toshiba BTD-13F-R22 is a horizontal machining center designed for large-scale industrial applications. It features a substantial working envelope with X, Y, and Z axes measuring 3000 mm, 2300 mm, and 1600 mm respectively, allowing for the machining of sizable workpieces. The machine is equipped with a large horizontal worktable measuring 2200 mm in length and 1800 mm in width, which includes T-slots to facilitate secure mounting of workpieces.

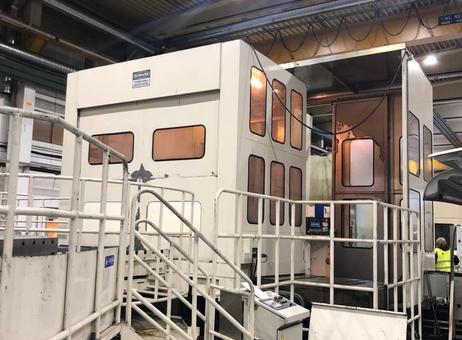

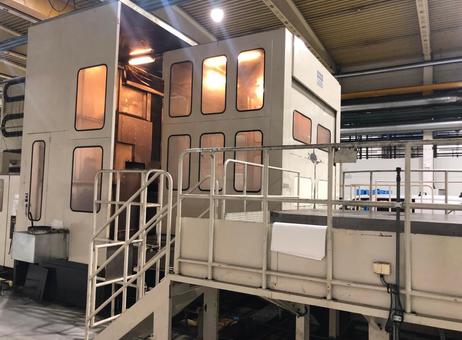

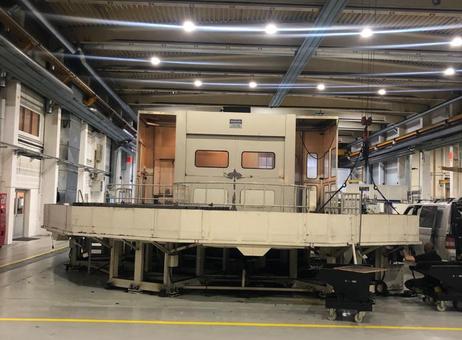

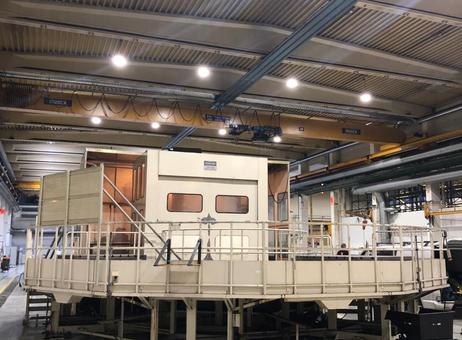

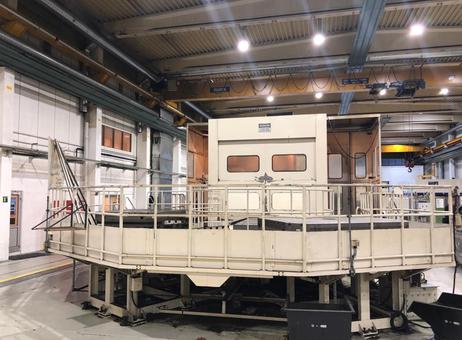

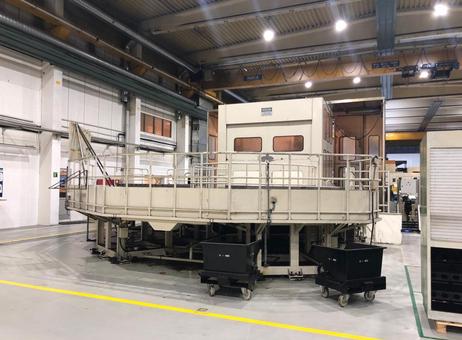

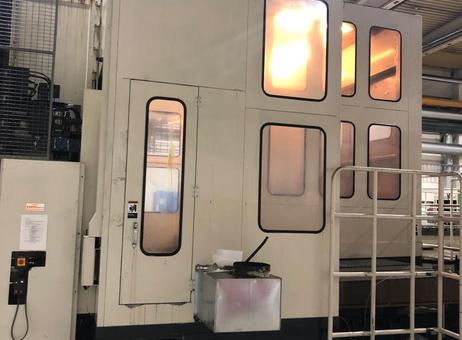

This machining center operates with a maximum spindle speed of 2500 rpm and a spindle diameter of 130 mm, suitable for a range of machining tasks requiring precision and power. The machine is housed within a large enclosed structure that includes multiple windows and an access door. Access to the machine platform is provided via stairs equipped with handrails, and the platform itself is surrounded by safety railings, ensuring operator safety during use.

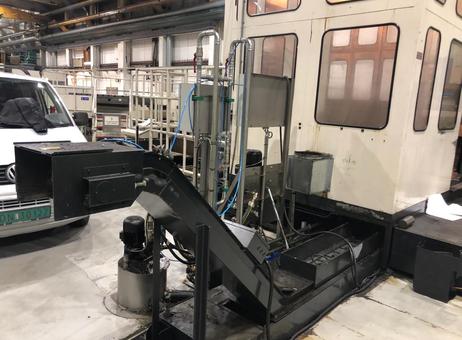

Adjacent to the machine base, there is a conveyor system likely intended for chip removal, supported by a hydraulic or motor unit. Both the conveyor and motor components appear intact without visible damage. The exterior of the machine enclosure shows signs of use, including some dirt and wear marks, but no significant damage is evident, indicating the machine has been maintained structurally sound.

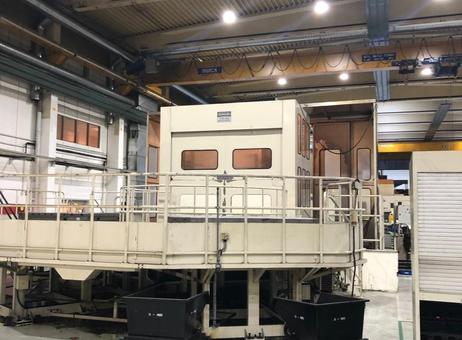

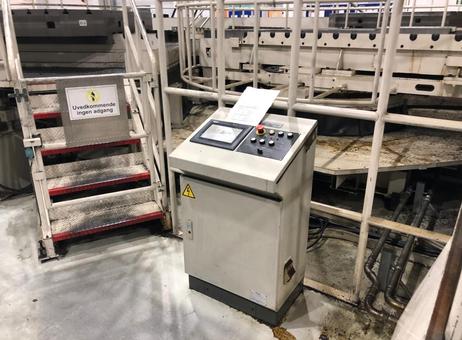

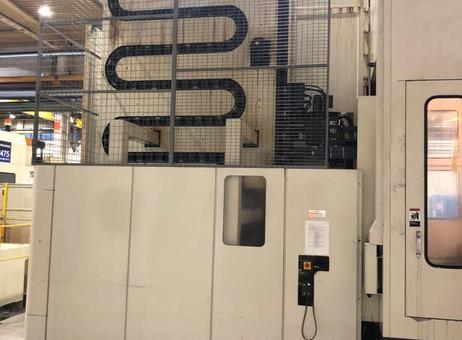

A control panel featuring an emergency stop button is mounted on the side of the machine, complemented by a nearby control cabinet with a touchscreen interface and various buttons, facilitating operational control. The industrial environment includes overhead lighting and a crane system, supporting heavy-duty machining operations. Warning signage is present on the stairs, indicating restricted access to certain areas.
Overall, the Toshiba BTD-13F-R22 horizontal machining center offers a robust and spacious setup with safety features and auxiliary equipment suitable for demanding machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

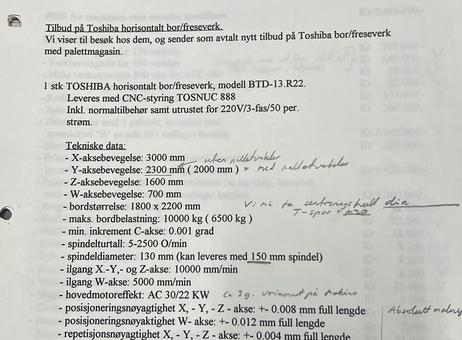

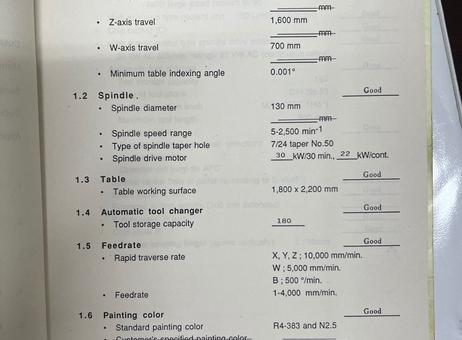

Toshiba BTD-13F-R22 Horizontal Machining Center
X : 3000 mm
Y : 2300 mm(2000 mm)
Z : 1600 mm
W : 700 mm
Spindle diameter : 130 mm
Spindle speed range : 2500 rpm
Table working surface : 1800 mm x 2200 mm
TOSNUC 888
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2024 |
| Offers online | 2 |
| Last activity | June 29, 2025 |
Toshiba BTD-13F-R22 Horizontal Machining Center
X : 3000 mm
Y : 2300 mm(2000 mm)
Z : 1600 mm
W : 700 mm
Spindle diameter : 130 mm
Spindle speed range : 2500 rpm
Table working surface : 1800 mm x 2200 mm
TOSNUC 888
