Contact us to receive an offer.
| Manufacturer | TOS |
|---|---|
| Model | WHN 13.8 |
| Year | 1991 |
| Location | Czech Republic
|
| Category | Borers - table type boring machines CNC |
| CNC | |
| X travel | 3500 mm |
| Y travel | 2000 mm |
| Z travel | 2000 mm |
| Table length | 1800 mm |
| Table width | 1600 mm |
| Max. workpiece weight | 12000 kg |
| Spindle diameter | 130 mm |
| Max. spindle speed | 1800 rpm |
| Spindle motor power | 37 kW |
| Overhauled | no |
| Year of overhauling | 2000 |
| Weight | 38000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Datasheet | TOS WHN 13.8 |
| Last availability date | 26/10/2026 |
| Product id | P230213043 |
| Language |
TOS WHN 13.8
CNC stolová vyvrtávačka TOS WHN 13.8
TOS WHN 13.8
TOS WHN 13.8 CNC Tischbohrwerk
TOS WHN 13.8
TOS WHN 13.8 Table type boring machine CNC
Mandrinadora CNC TOS WHN 13.8
Aléseuse à montant fixe CNC TOS WHN 13.8
TOS WHN 13.8
TOS WHN 13.8
Alesatrice a montante fisso CNC TOS WHN 13.8
TOS WHN 13.8
TOS WHN 13.8
Wytaczarka CNC stołowa TOS WHN 13.8
TOS WHN 13.8
TOS WHN 13.8
TOS WHN 13.8 Горизонтально-расточной станок с ЧПУ
TOS WHN 13.8
TOS WHN 13.8
CNC tabla tipi borverk makinesi TOS WHN 13.8
|

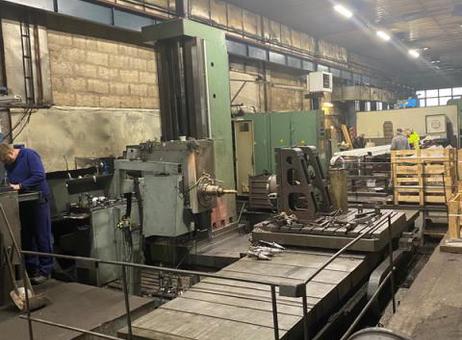

This TOS WHN 13.8 table type boring machine, manufactured in 1991, is a heavy-duty industrial machine weighing 38,000 kg. It features a large worktable measuring 1800 mm in length and 1600 mm in width, equipped with T-slots for secure mounting of workpieces or fixtures. The machine provides substantial travel capabilities with 3500 mm along the X-axis (transverse movement), 2000 mm along the Y-axis (vertical movement), and 2000 mm along the Z-axis (longitudinal movement).

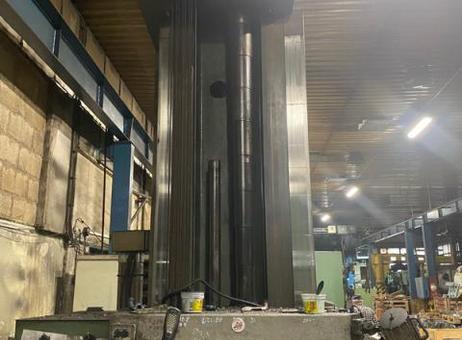

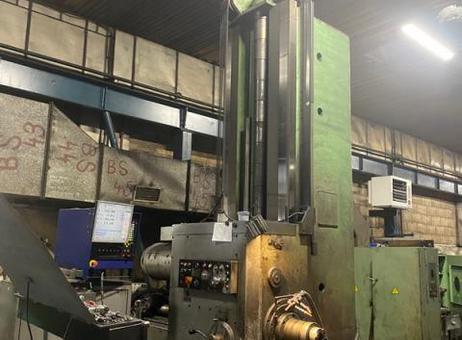

The spindle has a diameter of 130 mm and is designed for a maximum speed of 1800 rpm. The spindle taper is ISO 50, suitable for various tooling applications. The vertical spindle head is mounted on a robust column, supported by vertical guide rails and accompanied by visible hydraulic or pneumatic lines and cables.

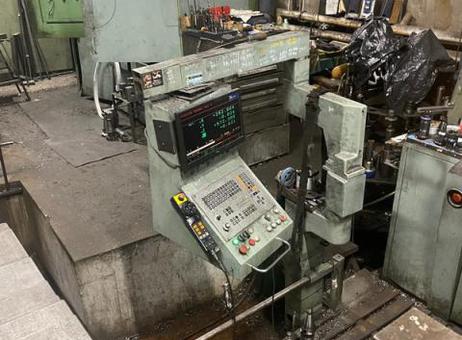

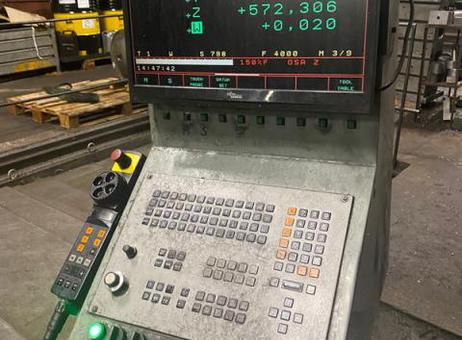

The control panel is positioned on the left side of the machine and includes a screen displaying coordinates and machine status for the X, Y, Z, and W axes. It features numerous buttons, knobs, and a joystick for operational control. Although the control panel and machine surfaces show signs of wear and grime consistent with industrial use, they appear structurally intact and functional, with illuminated indicators visible on the panel.
The work area around the control console has metal shavings, indicating active use. Tool holders with various tools are located near the control panel, facilitating efficient operation. Overall, this TOS WHN 13.8 boring machine is a substantial and well-equipped unit suitable for heavy industrial applications requiring precise boring operations on large workpieces.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine weight: 38000 kg Working spindle diameter: 130 mm Spindle taper: ISO 50 Spindle speed: 1800 rpm Table clamping surface: 1800 x 1600 mm Transverse table movement - x axis: 3500 mm Longitudinal table movement - z axis: 2000 mm Vertical table movement - y axis: 2500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the W axis length of this TOS WHN 13.8?
This TOS WHN 13.8 table type boring machine CNC features a W axis length of 800 mm.
What is the cross table movement of the machine?
This TOS WHN 13.8 table type boring machine CNC has a cross table movement of 3500 mm.
What is the longitudinal table movement of this model?
This TOS WHN 13.8 table type boring machine CNC has a longitudinal table movement of 2000 mm.
What is the vertical table movement of the machine?
This TOS WHN 13.8 table type boring machine CNC has a vertical table movement of 2000 mm.
When was this TOS WHN 13.8 manufactured?
This TOS WHN 13.8 table type boring machine CNC was manufactured in 1991.
What type of machine is the TOS WHN 13.8?
This TOS WHN 13.8 is a table type boring machine.
When was the CNC machine manufactured?
This CNC machine was manufactured in the year 1991.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 479 |
| Last activity | Oct. 30, 2026 |
Machine weight: 38000 kg Working spindle diameter: 130 mm Spindle taper: ISO 50 Spindle speed: 1800 rpm Table clamping surface: 1800 x 1600 mm Transverse table movement - x axis: 3500 mm Longitudinal table movement - z axis: 2000 mm Vertical table movement - y axis: 2500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the W axis length of this TOS WHN 13.8?
This TOS WHN 13.8 table type boring machine CNC features a W axis length of 800 mm.
What is the cross table movement of the machine?
This TOS WHN 13.8 table type boring machine CNC has a cross table movement of 3500 mm.
What is the longitudinal table movement of this model?
This TOS WHN 13.8 table type boring machine CNC has a longitudinal table movement of 2000 mm.
What is the vertical table movement of the machine?
This TOS WHN 13.8 table type boring machine CNC has a vertical table movement of 2000 mm.
When was this TOS WHN 13.8 manufactured?
This TOS WHN 13.8 table type boring machine CNC was manufactured in 1991.
What type of machine is the TOS WHN 13.8?
This TOS WHN 13.8 is a table type boring machine.
When was the CNC machine manufactured?
This CNC machine was manufactured in the year 1991.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
