| Manufacturer | TOS |
|---|---|
| Model | KUŘIM FS 100 S/A3 |
| Year | 2002 |
| Location | Slovenia
|
This TOS KUŘIM FS 100 S/A3 is a horizontal machining centre designed for versatile and precise machining tasks. Manufactured in 2002, it features a robust worktable measuring 3000 mm in length and 1000 mm in width, capable of supporting workpieces up to 7000 kg. The machine operates on three axes with travel distances of 3000 mm (X-axis), 1000 mm (Y-axis), and 1400 mm (Z-axis), allowing for a wide range of machining operations.
The spindle is equipped with an ISO 50 taper and has a spindle diameter of 85 mm at the front bearing. It offers a stepless speed range from 16 to 3500 rpm, providing flexibility for different machining requirements. The spindle distance from the worktable ranges between 125 mm and 1775 mm, accommodating various workpiece sizes.
Feed rates include a standard range from 1 to 5000 mm/min, with rapid traverse speeds of up to 10 m/min for the Y and Z axes, and a maximum feed rate of 12 m/min. The worktable is fitted with seven T-slots, each 22 mm wide and spaced 140 mm apart, facilitating secure clamping of workpieces. The table height from the base is 900 mm.

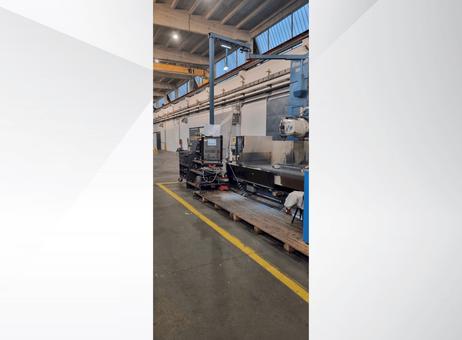

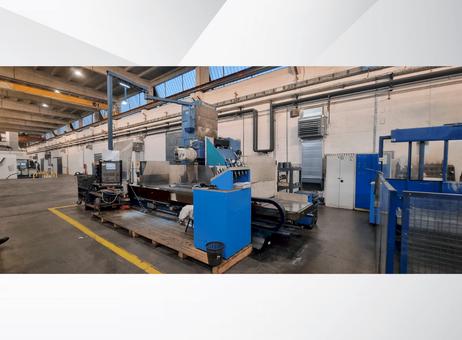

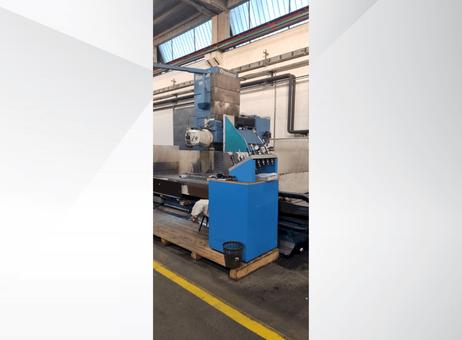

The machine is equipped with a control panel featuring multiple buttons and a display screen, positioned on the left side for operator convenience. Adjacent to the control panel is a tool holder rack containing several tools, enhancing operational efficiency. The machining centre appears clean and well-maintained with no visible damage, and it is currently supported on a wooden pallet base.
Additional documentation includes a user manual to assist with operation and maintenance. This TOS KUŘIM FS 100 S/A3 horizontal machining centre represents a solid option for industrial machining applications requiring substantial workpiece capacity and versatile axis movements. For further information or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis TOS KUŘIM FS 100 S/A3 horizontal machining centre was manufactured in 2002. Consider the opportunity to buy this TOS KUŘIM FS 100 S/A3 horizontal machining centre. Contact us for more information.
X-Axis Movement: 3000
Y-Axis Movement: 1000
Z-Axis Movement: 1400
Additional Documentation: User manual available
Feed rates: standard: 1 to 5000 mm/min / rapid traverse (y and z axes): 10 m/min/ feed rate: 12 m/min
Worktable: size: 1000 x 3000 mm / maximum workpiece weight: 7000 kg / number of t-slots: 7 / distance between t-slots: 140 mm / t-slot width: 22 mm / table height from the base (floor): 900 mm
Spindle: spindle taper: iso 50 / spindle diameter at the front bearing: 85 mm / minimum spindle distance from the worktable: 125 mm / maximum spindle distance from the worktable: 1775 mm / spindle speed: 16 to 3500 rpm (stepless)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2045 |
| Last activity | Oct. 31, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 3-axis TOS KUŘIM FS 100 S/A3 horizontal machining centre was manufactured in 2002. Consider the opportunity to buy this TOS KUŘIM FS 100 S/A3 horizontal machining centre. Contact us for more information.
X-Axis Movement: 3000
Y-Axis Movement: 1000
Z-Axis Movement: 1400
Additional Documentation: User manual available
Feed rates: standard: 1 to 5000 mm/min / rapid traverse (y and z axes): 10 m/min/ feed rate: 12 m/min
Worktable: size: 1000 x 3000 mm / maximum workpiece weight: 7000 kg / number of t-slots: 7 / distance between t-slots: 140 mm / t-slot width: 22 mm / table height from the base (floor): 900 mm
Spindle: spindle taper: iso 50 / spindle diameter at the front bearing: 85 mm / minimum spindle distance from the worktable: 125 mm / maximum spindle distance from the worktable: 1775 mm / spindle speed: 16 to 3500 rpm (stepless)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This TOS KUŘIM FS 100 S/A3 is a horizontal machining centre designed for versatile and precise machining tasks. Manufactured in 2002, it features a robust worktable measuring 3000 mm in length and 1000 mm in width, capable of supporting workpieces up to 7000 kg. The machine operates on three axes with travel distances of 3000 mm (X-axis), 1000 mm (Y-axis), and 1400 mm (Z-axis), allowing for a wide range of machining operations.
The spindle is equipped with an ISO 50 taper and has a spindle diameter of 85 mm at the front bearing. It offers a stepless speed range from 16 to 3500 rpm, providing flexibility for different machining requirements. The spindle distance from the worktable ranges between 125 mm and 1775 mm, accommodating various workpiece sizes.
Feed rates include a standard range from 1 to 5000 mm/min, with rapid traverse speeds of up to 10 m/min for the Y and Z axes, and a maximum feed rate of 12 m/min. The worktable is fitted with seven T-slots, each 22 mm wide and spaced 140 mm apart, facilitating secure clamping of workpieces. The table height from the base is 900 mm.
The machine is equipped with a control panel featuring multiple buttons and a display screen, positioned on the left side for operator convenience. Adjacent to the control panel is a tool holder rack containing several tools, enhancing operational efficiency. The machining centre appears clean and well-maintained with no visible damage, and it is currently supported on a wooden pallet base.
Additional documentation includes a user manual to assist with operation and maintenance. This TOS KUŘIM FS 100 S/A3 horizontal machining centre represents a solid option for industrial machining applications requiring substantial workpiece capacity and versatile axis movements. For further information or inquiries, please contact us.
