| Manufacturer | TOS Hulín |
|---|---|
| Model | MSCK 8 CNC |
| Year | 1982 |
| Location | Czech Republic
|
This listing features a TOS Hulín MSCK 8 CNC vertical turret lathe manufactured in 1982. The machine has a clamping plate diameter of 800 mm and can accommodate a maximum workpiece diameter of 1,000 mm with a working height of 720 mm. It is designed to handle workpieces weighing up to 2,600 kg. The lathe includes a slide stroke of 630 mm and a fixed crossbar stroke. It is equipped with a tool magazine that holds 15 tools and features 4 driven tool holders, allowing for versatile machining operations.
The clamping plate speed operates at a normal range of 4-400 rpm through a two-speed gearbox, while the rotary tool speed ranges from 5.5 to 3,440 rpm, controlled by a three-speed gearbox. The feed rate is continuously adjustable between 0.01 and 49.99 mm per revolution, with a high-speed feed rate capability of 8,000 mm per minute. The main motor delivers a maximum power of 30 kW.
The machine weighs approximately 14,500 kg and stands at a height of 4,785 mm. Positioning of the clamping plates can be done in 5° increments. It is controlled by an NS 560 control system manufactured by TESLA Kolín.

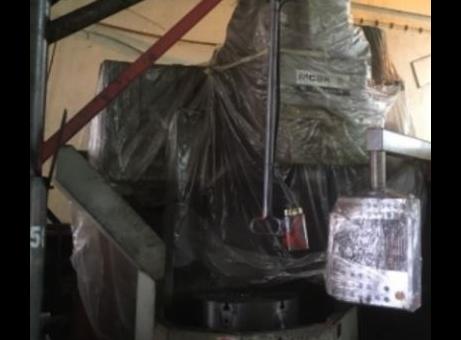

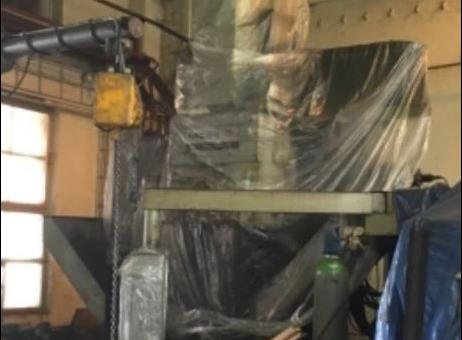

The lathe is shown partially covered in plastic wrap, indicating it is in a storage or protected state. Visible components include the rotating table or chuck at the base and an overhead arm structure with a hanging control or tool box. There is an overhead hoist with a yellow hook located on the left side of the machine. The base exhibits signs of wear and surface rust. Additionally, a red welding machine or power supply unit is positioned in front of the lathe. Details of the control panel and machine model are not clearly visible due to plastic covering and shadows.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Clamping plate diameter 800 mm
Maximum workpiece diameter 1.000 mm
Maximum workpiece height 720 mm
Maximum workpiece weight 2,500 kg
Slide stroke 630 mm
Crossbar stroke fixed
Tool magazine for 15 tools
4pcs of driven tool holders
Clamping plate speed - normal 4-400 rpm
(two-speed gearbox)
Rotary tool speed 5.5-3,440 rpm
(three-speed gearbox)
Feed range - continuously 0.01-49.99 mm/rev
High-speed feed rate 8,000 mm/min
Main motor power max. 30 kW
Weight 14,500 kg
Machine height 4.785 mm
Positioning clamping plates in 5° increments
Control system NS 560, manufacturer TESLA Kolín
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
