| Manufacturer | TOS |
|---|---|
| Model | HOSTIVAR UB 25-1000/C |
| Year | 2019 |
| Location | Hungary
|

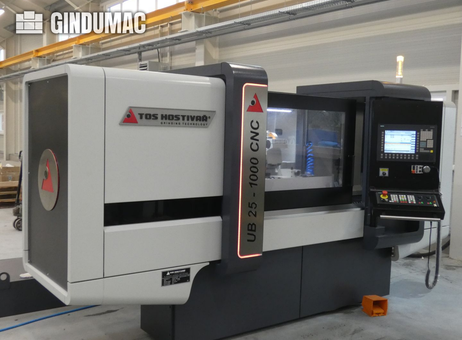

This listing describes a TOS HOSTIVAR UB 25-1000/C cylindrical grinding machine, model year 2019. It is designed for external and internal cylindrical grinding applications and features two main axes of movement.
Key machine identification
- Brand: TOS
- Model: HOSTIVAR UB 25-1000/C
- Year: 2019
- Machine type: Cylindrical grinding machine
- Application type: Grinding
Working capacity and axes
- Number of axes: 2
- Maximum swing diameter: 280 mm
- Distance between centres: 1,000 mm
- X-axis travel: 256 mm
- Capacity with open steady rest: 70 mm
- Capacity with closed steady rest: 70 mm
- Minimum machinable diameter with a worn Ø250 mm grinding wheel: 0 mm (specified for a workpiece swing diameter of 250 mm)
Workhead and tailstock
- Workhead swivel range: 90°
- Workhead spindle taper: Morse 4 (ISO 296-91)
- Tailstock quill taper: Morse 4 (ISO 296-91)
- Tailstock quill stroke: 25 mm
- Tailstock centre transverse adjustment (cylindricity correction): ±0.08 mm
- Tailstock clamping force: 360 N
Grinding wheel head and feeds
- Grinding wheel head swivel range: ±45°
- Total grinding head adjustment range: 270 mm
- Rapid traverse travel (grinding head): 0–270 mm
- Rapid traverse speed: 2,000 mm/min
- Infeed per handwheel revolution (relative to diameter): 0.1 mm
- Minimum manual infeed (relative to diameter): 0.001 mm
- Automatic working infeed range (relative to diameter): 0.001–270 mm
Grinding wheel
- Standard wheel dimensions: Ø400 × 40 × Ø127 mm
- Maximum wheel width: 40 mm
Notes
- All specification values are taken from the available machine information. No additional components, accessories or condition details are included beyond the provided specifications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cylindrical grinding machine manufactured in 2019. This TOS HOSTIVAR UB 25-1000 features a maximum swing diameter of 280 mm and a distance between centres of 1,000 mm. It includes a grinding head swivel range of ±45° and a rapid traverse speed of 2,000 mm/min. If you are looking to get high-quality grinding capabilities, consider the TOS HOSTIVAR UB 25-1000 machine we have for sale. Contact us for further details.
Overview
brand: TOS
year: 2019
MODEL: HOSTIVAR UB 25-1000/C
application type: Grinding
Location: Hungary
machine type: Cylindrical Grinding Machine
Technical Information - TOS HOSTIVAR UB 25-1000/C
Movement
Number of Axes: 2
X-axis Travel: 256 mm
Additional Information
Working capacity:
Maximum swing diameter: 280 mm
Distance between centres: 1,000 mm
Capacity with open steady rest: 70 mm
Capacity with closed steady rest: 70 mm
Minimum machinable diameter with a worn Ø250 mm grinding wheel: 0 mm (applicable at a workpiece swing diameter of 250 mm)
Workhead and tailstock:
Workhead swivel range: 90°
Workhead spindle taper: Morse 4 (ISO 296-91)
Tailstock quill taper: Morse 4 (ISO 296-91)
Tailstock quill stroke: 25 mm
Tailstock centre transverse adjustment (cylindricity correction): ±0.08 mm
Tailstock clamping force: 360 N
Grinding wheel head:
Swivel range: ±45°
Total adjustment range: 270 mm
Rapid traverse travel: 0–270 mm
Rapid traverse speed: 2,000 mm/min
Infeed per handwheel revolution (relative to diameter): 0.1 mm
Minimum manual infeed (relative to diameter): 0.001 mm
Automatic working infeed range (relative to diameter): 0.001–270 mm
Grinding wheel:
Standard dimensions: Ø400 × 40 × Ø127 mm
Maximum wheel width: 40 mm
Axes:
X-axis travel: 256 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
