Contact us to receive an offer.
| Manufacturer | TORNOS |
|---|---|
| Model | Gamma 20-6 |
| Year | 2010 |
| Location | Poland
|
| Category | Lathes - Swiss-type lathes |
| Max. Ø | 20 mm |
| Max. length | 250 mm |
| Type of CNC | |
| Nbr of axes | 6 |
| Type of main spindle | |
| Type of back spindle | |
| Number of tools | 39 |
| Spindle speed | 12000 rpm |
| Spindle power | 3.7 kW |
| Length x width x height | 2100.0 × 1200.0 × 1900.0 |
| Weight | 3300 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | under power |
| Last availability date | 09/07/2026 |
| Product id | P221011016 |
| Language |
TORNOS Gamma 20-6
Soustruh - Švýcarský typ TORNOS Gamma 20-6
TORNOS Gamma 20-6
TORNOS Gamma 20-6 Langdrehautomat
TORNOS Gamma 20-6
TORNOS Gamma 20-6 Swiss type lathe
Torno monohusillo TORNOS Gamma 20-6
Tour monobroche TORNOS Gamma 20-6
TORNOS Gamma 20-6
TORNOS Gamma 20-6
tornio a fantina mobile TORNOS Gamma 20-6
TORNOS Gamma 20-6
TORNOS Gamma 20-6
Automat tokarski wzdłużny TORNOS Gamma 20-6
TORNOS Gamma 20-6
TORNOS Gamma 20-6
TORNOS Gamma 20-6 Швейцарский тип токарного станка
TORNOS Gamma 20-6
TORNOS Gamma 20-6
İsviçre tipi torna tezgahı TORNOS Gamma 20-6
|

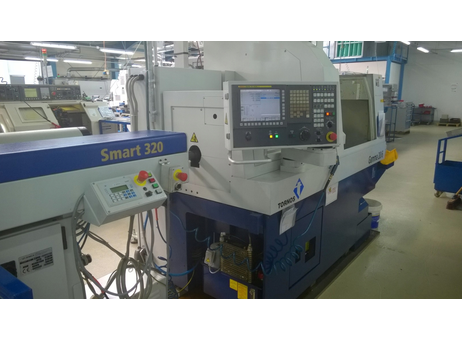

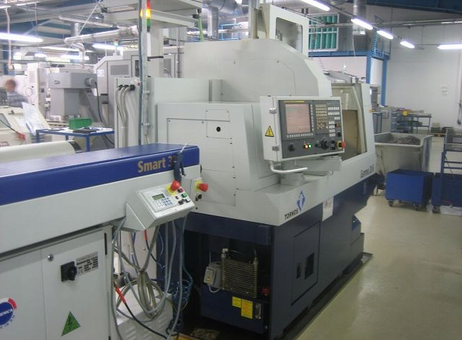

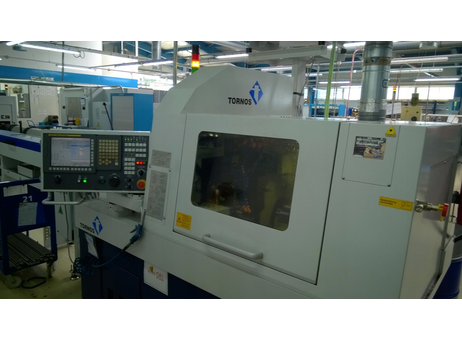

This listing is for a Tornos Gamma 20-6 Swiss-type lathe, manufactured in 2010. It features 6 linear axes plus 2 C-axes, allowing for complex multi-axis machining. The machine is designed to handle cylindrical bars with diameters ranging from 3 mm up to a maximum of 20 mm. Workpiece length capacity varies depending on the guide bush configuration: up to 250 mm with a fixed guide bush, 210 mm with a motorized guide bush, and 45 mm without a guide sleeve.
The main spindle operates at speeds up to 12,000 rpm, powered by a spindle motor delivering up to 3.7 kW. The counter spindle matches this speed with a maximum of 12,000 rpm and power ranging from 1.5 to 2.2 kW. The motorized guide sleeve offers rotational speeds from 200 to 12,000 rpm. The lathe is equipped with 39 tools, including 15 powered tools, with turning tool shank cross-sections of 16x16 mm. Driven tools operate at speeds up to 8,000 rpm, with drive powers of 0.75 kW for front support tools, 1 kW for rear support tools, and 0.75 kW for tools processing the opposite side.
The machine includes an oil pan with a capacity of 165 liters and an oil pump rated at 250 W. Installed power totals 14 kVA, and the machine requires a minimum compressed air supply of 4 bar at 40 NL/min. Dimensions are 2100 mm in length, 1200 mm in width, and 1900 mm in height, with a weight of approximately 3300 kg.

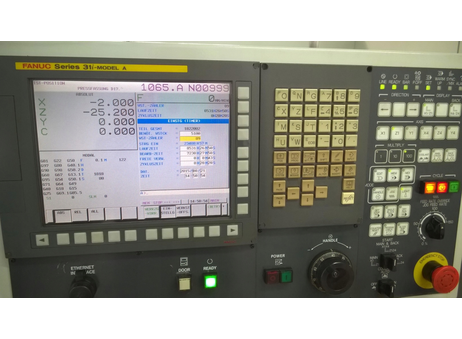

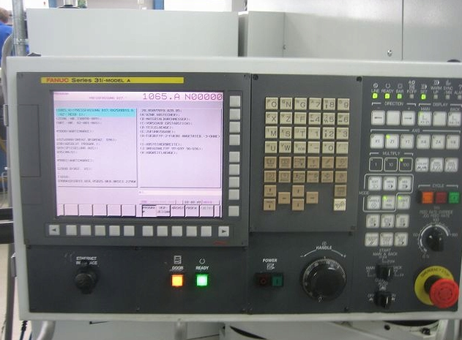

Control is managed by a FANUC 31i-A numerical control computer with two channels, featuring a 10.4-inch color LCD monitor. The control panel includes a keypad with numerous buttons for CNC operation, a power switch, rotary dial for manual control, and an emergency stop button. Indicator lights show machine status such as 'READY' and 'DOOR.' The machine is housed in a protective enclosure with a window, and a conveyor system labeled 'Smart 320' is attached for efficient workpiece handling.

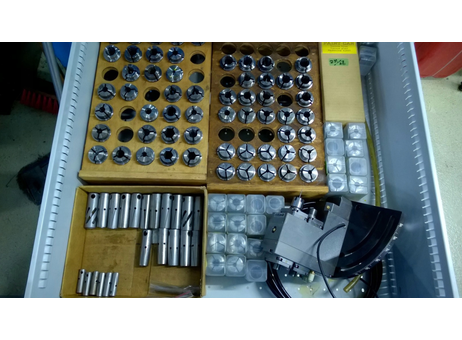

Additional visible components include organized drawers containing collets and tool holders, hydraulic or pneumatic valve assemblies with labeled solenoids, and a fire extinguisher mounted near a Siemens control box with a red emergency light. The machine appears clean and well-maintained within a factory setting.
This lathe is painted in gray (RAL 7035) and blue (RAL 5013) and complies with CE/CEM design requirements. It is suitable for precision Swiss-type turning applications requiring multi-axis machining capabilities. A new machine with similar specifications is valued at approximately 200,000 Euro net.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Number of working axes - 6 linear + 2x C-axis
The range of diameters of cylindrical bars (min./max.) - 3-20
Workpiece length:
- fixed guide bush - 250 mm
- motorized guide bush - 210 mm
- without a guide sleeve - 45 mm
Main spindle speed - 12,000 rpm.
Main spindle drive power - 2.2 / 3.7 kW
Counter spindle speed - 12,000 rpm.
Counter spindle drive power - 1.5 / 2.2 kW
Rotational speed of the motorized guide sleeve - 200 - 12,000 rpm.
Number of tools - 39
Number of powered tools - 15
The cross-section of the shank of turning tools - 16x16 mm
Rotational speed of driven tools - 8,000 rpm.
Drive power for tools driven on the front support - 0.75 kW
Drive power for tools driven on the rear support - 1 kW
Drive power of driven tools for processing the other side - 0.75 kW
Oil pan capacity - 165 liters
Oil pump power - 250W
Installed power - 14 kVA
Compressed air - min. 4 bar / 40 NL / min
Machine weight - 3 300 Kg
Machine dimensions (Length x Width x Height) - 2100 x 1200 x 1900 mm
Numerical control computer - FANUC 31i-A (2-channel)
Monitor - 10.4 "color LCD
Memory of detail processing programs - 64
Paint coat - gray RAL 7035, blue RAL 5013
Design in accordance with the requirements - CE / CEM
A new machine with the same parameters, about 200,000 Euro net
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What tooling is included with this equipment?
This equipment includes full tooling with several hundred holders and bushings.
Does this machine include an additional angular head?
This machine comes with an additional angular head.
How has this unit been used previously?
The unit has only been used for single production of surgical instruments.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
