| Manufacturer | Titan |
|---|---|
| Model | SC 43 |
| Year | |
| Location | Netherlands
|
This Titan SC 43 vertical turret lathe is equipped with a Siemens 840D CNC control system, providing precise and programmable machining capabilities. The lathe features a large rotary table with a plate diameter of 4300 mm, allowing it to accommodate sizable workpieces. The maximum working height is 2000 mm, enabling the machining of tall components. It supports a maximum piece weight of up to 18,000 kg, making it suitable for heavy-duty industrial applications. The machine operates at rotation speeds ranging from 1 to 92 rpm, offering flexibility for various machining processes.
The lathe includes a 4-jaw face plate measuring 4000 mm, which facilitates secure clamping of irregularly shaped workpieces. It operates on a 400V power supply at 50 cycles. Additionally, the machine is equipped with a chip conveyor to manage metal shavings and maintain a cleaner working environment.

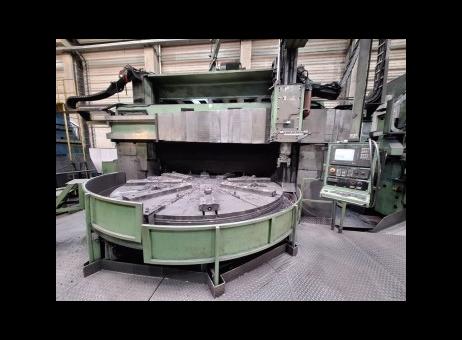

Visually, the machine is a large vertical turret lathe with the CNC control panel mounted on the right side. The rotary table is fitted with multiple clamping fixtures visible on the surface, enhancing its versatility in securing different parts. The CNC control panel features a screen along with multiple buttons and knobs for user operation. The lathe appears to be used but operational, showing signs of wear and some dirt consistent with industrial use. It is situated in an industrial workshop setting with metal flooring and structural supports, indicating it is installed in a professional manufacturing environment.
This Titan SC 43 vertical turret lathe is designed for heavy and precise machining tasks, combining robust mechanical capabilities with advanced CNC control for efficient production.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control Siemens 840D
Maximum Swing (mm) 4300
Maximum Height (mm) 2000
4-Jaw Face Plate (mm) 4000
Maximum Load (kg) 18000
R.P.M. 1 - 92
Volts 400V
Cycles 50
Chip conveyor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 168 |
| Last activity | Oct. 21, 2026 |
Control Siemens 840D
Maximum Swing (mm) 4300
Maximum Height (mm) 2000
4-Jaw Face Plate (mm) 4000
Maximum Load (kg) 18000
R.P.M. 1 - 92
Volts 400V
Cycles 50
Chip conveyor
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Titan SC 43 vertical turret lathe is equipped with a Siemens 840D CNC control system, providing precise and programmable machining capabilities. The lathe features a large rotary table with a plate diameter of 4300 mm, allowing it to accommodate sizable workpieces. The maximum working height is 2000 mm, enabling the machining of tall components. It supports a maximum piece weight of up to 18,000 kg, making it suitable for heavy-duty industrial applications. The machine operates at rotation speeds ranging from 1 to 92 rpm, offering flexibility for various machining processes.
The lathe includes a 4-jaw face plate measuring 4000 mm, which facilitates secure clamping of irregularly shaped workpieces. It operates on a 400V power supply at 50 cycles. Additionally, the machine is equipped with a chip conveyor to manage metal shavings and maintain a cleaner working environment.
Visually, the machine is a large vertical turret lathe with the CNC control panel mounted on the right side. The rotary table is fitted with multiple clamping fixtures visible on the surface, enhancing its versatility in securing different parts. The CNC control panel features a screen along with multiple buttons and knobs for user operation. The lathe appears to be used but operational, showing signs of wear and some dirt consistent with industrial use. It is situated in an industrial workshop setting with metal flooring and structural supports, indicating it is installed in a professional manufacturing environment.
This Titan SC 43 vertical turret lathe is designed for heavy and precise machining tasks, combining robust mechanical capabilities with advanced CNC control for efficient production.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 168 |
| Last activity | Oct. 21, 2026 |
