| Manufacturer | Tiger |
|---|---|
| Model | Compact Evo - RT |
| Year | 2016 |
| Location | Italy
|

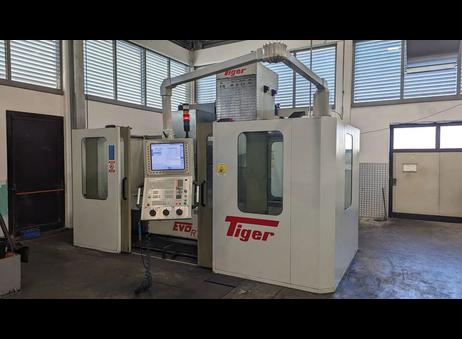

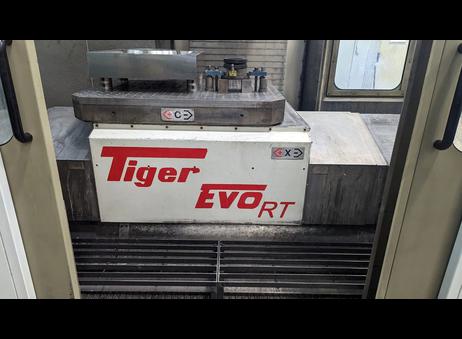

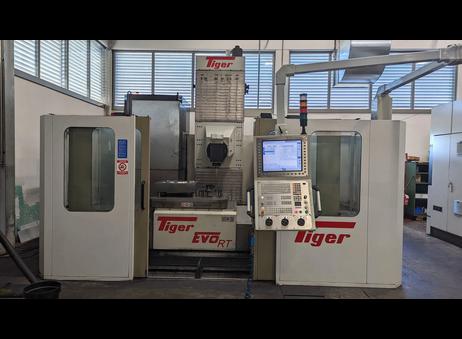

The Tiger Compact Evo - RT is a mobile column milling machine featuring a rotary table, designed for advanced 5-axis machining applications. Manufactured in 2016, this model is equipped with a Heidenhain TNC 640 CNC control system, providing precise and efficient operation. The machine includes a spacious worktable measuring 1000 mm by 1200 mm, capable of supporting loads up to 5 tons, suitable for handling sizable workpieces.

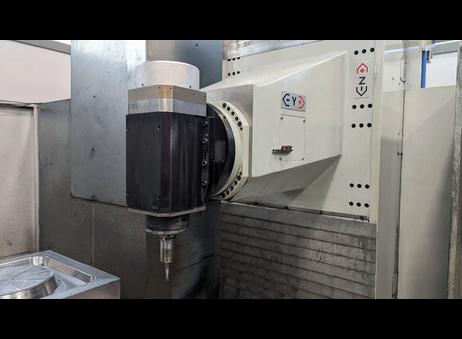

This continuous 5-axis machining center offers rapid feed rates of up to 25,000 mm/min across the X, Y, and Z axes, with axis travels of 2000 mm (X), 1100 mm (Y), and 1300 mm (Z). The spindle features an HSK 63 taper and achieves a maximum speed of 12,000 rpm, supporting a wide range of machining tasks. The spindle head is continuously adjustable up to ±120°, enhancing versatility for complex part geometries.

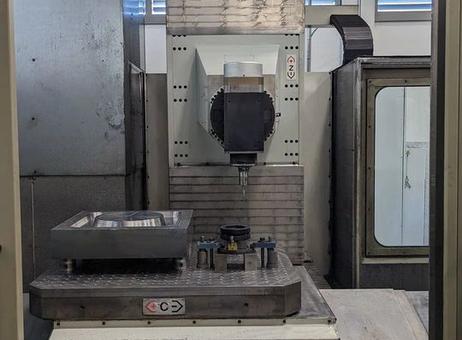

The machine is equipped with a tool changer holding 152 tool pockets, accommodating tools up to 500 mm in length, which supports extended machining cycles without interruption. The enclosed work area features dual sliding doors, providing safety and containment of chips and coolant during operation. Fixtures are installed on the worktable, allowing secure workpiece mounting.

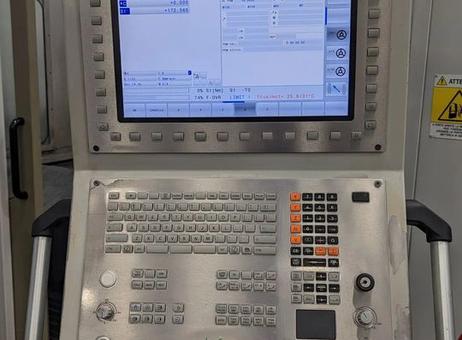

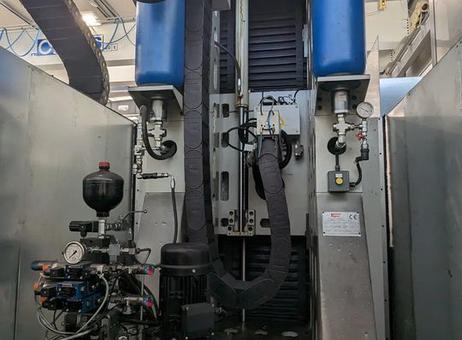

The control panel is mounted on the right side of the machine and includes a screen with multiple buttons and knobs, facilitating user-friendly operation. The machine and its components, including hydraulic or pneumatic systems visible at the rear with pressure gauges and tanks, appear well-maintained and intact with no visible damage or leaks. Signs of normal use are present on the spindle area, table surface, and machine exterior, but no critical wear or defects are observed.
Overall, the Tiger Compact Evo - RT offers a robust and versatile solution for high-precision 5-axis milling tasks, combining substantial working envelope, high spindle speed, and extensive tooling capacity in a clean and orderly machine setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
MOBILE COLUMN MILLING MACHINE WITH ROTARY TABLE TIGER
Model: Evo Compact - RT
Technical features:
Cnc: TNC 640 Heidenhain
Table size: 1000x1200
Table capacity: 5 tons.
Continuous 5-axis machine, rapid feed X, Y, Z: 25,000 mm/min
Racing 2000x1100x1300
Max spindle rotation speed: 12,000 rpm
HSK 63 spindle taper
Continuously adjustable head +/- 120°
Year of construction 2016
Tool changer with 152 places with a maximum length of 500 mm
Top with FCS work system for fixing
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the total program execution time of the machine?
The machine has a total program execution time of 20,000 hours.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 9 |
| Last activity | Oct. 25, 2026 |
MOBILE COLUMN MILLING MACHINE WITH ROTARY TABLE TIGER
Model: Evo Compact - RT
Technical features:
Cnc: TNC 640 Heidenhain
Table size: 1000x1200
Table capacity: 5 tons.
Continuous 5-axis machine, rapid feed X, Y, Z: 25,000 mm/min
Racing 2000x1100x1300
Max spindle rotation speed: 12,000 rpm
HSK 63 spindle taper
Continuously adjustable head +/- 120°
Year of construction 2016
Tool changer with 152 places with a maximum length of 500 mm
Top with FCS work system for fixing
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the total program execution time of the machine?
The machine has a total program execution time of 20,000 hours.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The Tiger Compact Evo - RT is a mobile column milling machine featuring a rotary table, designed for advanced 5-axis machining applications. Manufactured in 2016, this model is equipped with a Heidenhain TNC 640 CNC control system, providing precise and efficient operation. The machine includes a spacious worktable measuring 1000 mm by 1200 mm, capable of supporting loads up to 5 tons, suitable for handling sizable workpieces.
This continuous 5-axis machining center offers rapid feed rates of up to 25,000 mm/min across the X, Y, and Z axes, with axis travels of 2000 mm (X), 1100 mm (Y), and 1300 mm (Z). The spindle features an HSK 63 taper and achieves a maximum speed of 12,000 rpm, supporting a wide range of machining tasks. The spindle head is continuously adjustable up to ±120°, enhancing versatility for complex part geometries.
The machine is equipped with a tool changer holding 152 tool pockets, accommodating tools up to 500 mm in length, which supports extended machining cycles without interruption. The enclosed work area features dual sliding doors, providing safety and containment of chips and coolant during operation. Fixtures are installed on the worktable, allowing secure workpiece mounting.
The control panel is mounted on the right side of the machine and includes a screen with multiple buttons and knobs, facilitating user-friendly operation. The machine and its components, including hydraulic or pneumatic systems visible at the rear with pressure gauges and tanks, appear well-maintained and intact with no visible damage or leaks. Signs of normal use are present on the spindle area, table surface, and machine exterior, but no critical wear or defects are observed.
Overall, the Tiger Compact Evo - RT offers a robust and versatile solution for high-precision 5-axis milling tasks, combining substantial working envelope, high spindle speed, and extensive tooling capacity in a clean and orderly machine setup.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 9 |
| Last activity | Oct. 25, 2026 |
