Contact us to receive an offer.
| Manufacturer | TECNOFARMA |
|---|---|
| Model | TR 800 |
| Year | 2015 |
| Location | Italy
|
The TECNOFARMA TR 800 is a rotating accumulation table designed for efficient alignment and sorting of products, particularly suitable for industries such as pharmaceutical, chemical, cosmetics, food, dietary, medical devices, and manufacturing. Manufactured in 2015, this machine features a robust stainless steel structure with an enclosed base housing the gear motor and the electrical control panel. The centrally mounted gear motor drives the main transmission shaft, which rotates the circular table with a diameter of 1100 mm.

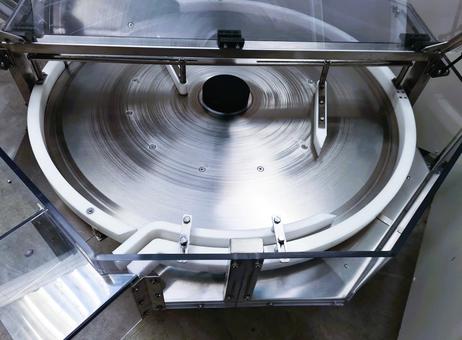

The table is designed with shaped sides that facilitate the entry of bottles, guiding them along the outer edge towards the exit channel. When the exit channel is full, bottles are automatically diverted towards the center of the table to circulate and return to the exit channel, allowing continuous accumulation and supply of products. This mechanism ensures smooth production cycles by compensating for stoppages or slowdowns in upstream or downstream machines. The table can be loaded manually via a tray or receive bottles from a conveyor belt, reintroducing them at the exit.

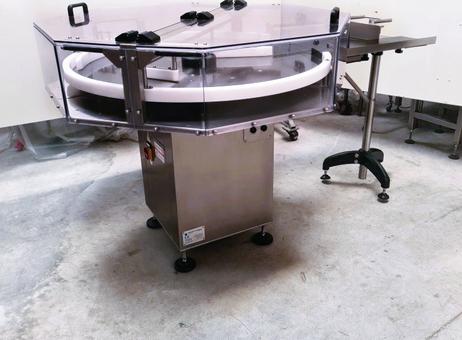

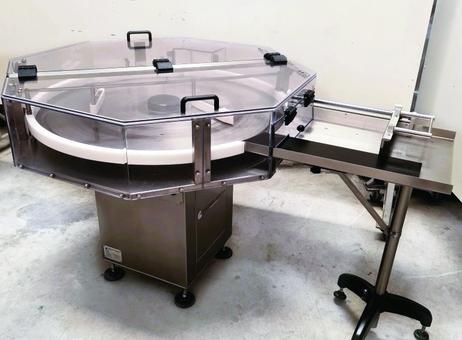

The machine measures 1900 mm in length, 1500 mm in width, and 1170 mm in height, weighing approximately 170 kg. It includes a product entrance width of 300 mm and a product exit width of 30 mm. The machine is equipped with a transparent protective cover featuring black handles and multiple hinges for easy access and safety. The base is made of stainless steel with adjustable feet, providing stability and adaptability to different floor conditions.

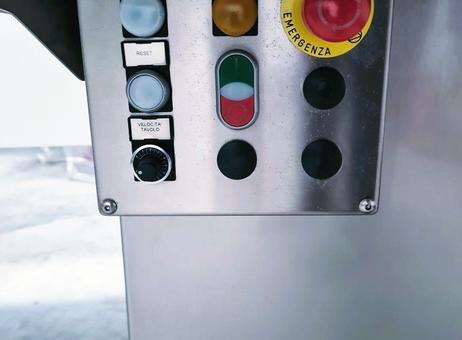

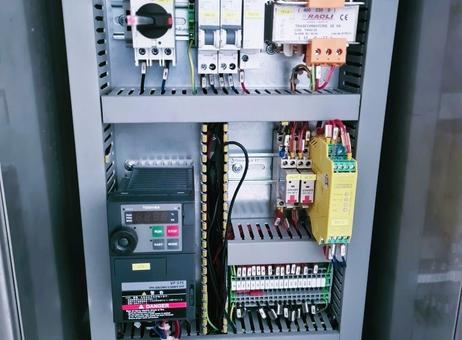

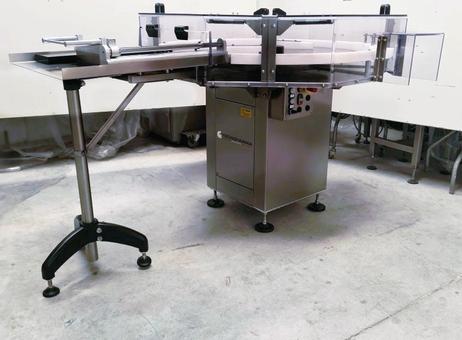

An attached stainless steel conveyor extension with adjustable guide rails and a black base support on wheels is included, facilitating product transfer. The control panel is integrated into the stainless steel base and features buttons and an emergency stop for operational safety. Inside the control panel, components such as circuit breakers, relays, and a Toshiba VF-S15 variable frequency drive (VFD) are organized with labeled wiring and terminal blocks, indicating a well-maintained electrical system.

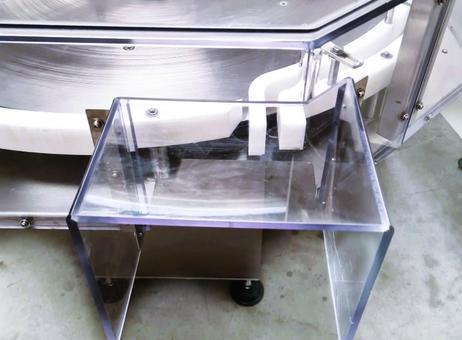

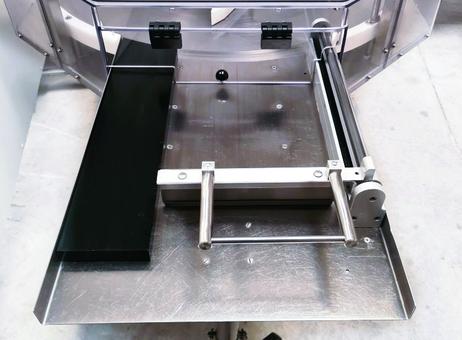

The machine surfaces, including the feeder plate and conveyor, are clean and well-maintained with no visible damage, scratches, or dents. The transparent protective chute attached to the feeder is clear and free of cracks, with plastic guide rails for precise product direction. Overall, the TECNOFARMA TR 800 presents as a clean, well-preserved unit with sturdy metal supports and adjustable features designed for optimal product handling and accumulation in various industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:
The Rotating Accumulation Table in stainless steel is ideal for the allignment and sorting of products.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The “rotary table” machine consists of a stainless steel structure enclosed at the base, containing the gear motor and the control electrical panel. The gear motor, mounted centrally to the structure, drives the main transmission shaft, which in turn transmits rotation to the rotating table. The appropriately shaped sides facilitate the entry of bottles that follow the outer edge and are directed towards the exit. When the exit channel is full, the bottles are automatically diverted towards the center of the table and circulate there to return again towards the exit channel. The purpose of the machine is to accumulate bottles exiting the filler/labeler when the downstream machine stops or slows down, and conversely, to supply bottles to the downstream machine when the upstream machine stops or slows down, ensuring that the production cycle is continuous. The table can also be loaded manually via a tray or receive bottles from a conveyor belt to then reintroduce them at the exit.
Year of construction: 2015
SPECIFICHE TECNICHE
Lenght mm 1900
Width mm 1500
Height mm 1170
Weight Kg 170
Table diameter mm 1100
Product entrance width mm 300
Product exit width mm 30
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this TECNOFARMA TR 800 rotary accumulation table used?
This TECNOFARMA TR 800 rotary accumulation table is used.
What is the reference for this TR 800 rotary accumulation table?
This TR 800 rotary accumulation table has the reference TAVR-79.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 27, 2026 |
DESCRIPTION:
The Rotating Accumulation Table in stainless steel is ideal for the allignment and sorting of products.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The “rotary table” machine consists of a stainless steel structure enclosed at the base, containing the gear motor and the control electrical panel. The gear motor, mounted centrally to the structure, drives the main transmission shaft, which in turn transmits rotation to the rotating table. The appropriately shaped sides facilitate the entry of bottles that follow the outer edge and are directed towards the exit. When the exit channel is full, the bottles are automatically diverted towards the center of the table and circulate there to return again towards the exit channel. The purpose of the machine is to accumulate bottles exiting the filler/labeler when the downstream machine stops or slows down, and conversely, to supply bottles to the downstream machine when the upstream machine stops or slows down, ensuring that the production cycle is continuous. The table can also be loaded manually via a tray or receive bottles from a conveyor belt to then reintroduce them at the exit.
Year of construction: 2015
SPECIFICHE TECNICHE
Lenght mm 1900
Width mm 1500
Height mm 1170
Weight Kg 170
Table diameter mm 1100
Product entrance width mm 300
Product exit width mm 30
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this TECNOFARMA TR 800 rotary accumulation table used?
This TECNOFARMA TR 800 rotary accumulation table is used.
What is the reference for this TR 800 rotary accumulation table?
This TR 800 rotary accumulation table has the reference TAVR-79.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The TECNOFARMA TR 800 is a rotating accumulation table designed for efficient alignment and sorting of products, particularly suitable for industries such as pharmaceutical, chemical, cosmetics, food, dietary, medical devices, and manufacturing. Manufactured in 2015, this machine features a robust stainless steel structure with an enclosed base housing the gear motor and the electrical control panel. The centrally mounted gear motor drives the main transmission shaft, which rotates the circular table with a diameter of 1100 mm.
The table is designed with shaped sides that facilitate the entry of bottles, guiding them along the outer edge towards the exit channel. When the exit channel is full, bottles are automatically diverted towards the center of the table to circulate and return to the exit channel, allowing continuous accumulation and supply of products. This mechanism ensures smooth production cycles by compensating for stoppages or slowdowns in upstream or downstream machines. The table can be loaded manually via a tray or receive bottles from a conveyor belt, reintroducing them at the exit.
The machine measures 1900 mm in length, 1500 mm in width, and 1170 mm in height, weighing approximately 170 kg. It includes a product entrance width of 300 mm and a product exit width of 30 mm. The machine is equipped with a transparent protective cover featuring black handles and multiple hinges for easy access and safety. The base is made of stainless steel with adjustable feet, providing stability and adaptability to different floor conditions.
An attached stainless steel conveyor extension with adjustable guide rails and a black base support on wheels is included, facilitating product transfer. The control panel is integrated into the stainless steel base and features buttons and an emergency stop for operational safety. Inside the control panel, components such as circuit breakers, relays, and a Toshiba VF-S15 variable frequency drive (VFD) are organized with labeled wiring and terminal blocks, indicating a well-maintained electrical system.
The machine surfaces, including the feeder plate and conveyor, are clean and well-maintained with no visible damage, scratches, or dents. The transparent protective chute attached to the feeder is clear and free of cracks, with plastic guide rails for precise product direction. Overall, the TECNOFARMA TR 800 presents as a clean, well-preserved unit with sturdy metal supports and adjustable features designed for optimal product handling and accumulation in various industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 27, 2026 |
