| Manufacturer | Technosys P.E.S. Ltd., UK |
|---|---|
| Model | Cyclone 300 |
| Year | 2002 |
| Location | Jordan
|

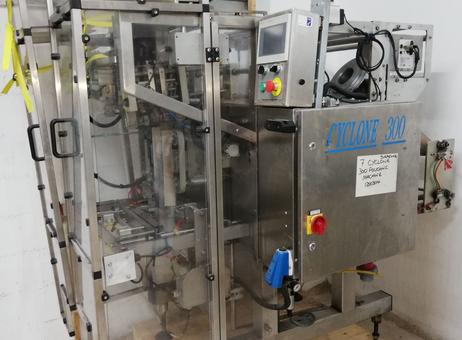

The Technosys P.E.S. Ltd. Cyclone 300 is a vertical form-fill-seal bagging machine designed for automatic packing of solid granular products such as pulses, rice, sugar, and cereals. Manufactured in 2002, this machine features a robust stainless steel frame with transparent protective panels for safety and easy monitoring of operations. It measures 1900 mm in length, 1100 mm in width, and 3000 mm in height, weighing approximately 950 kg.

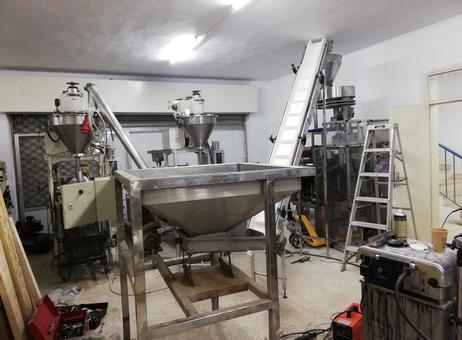

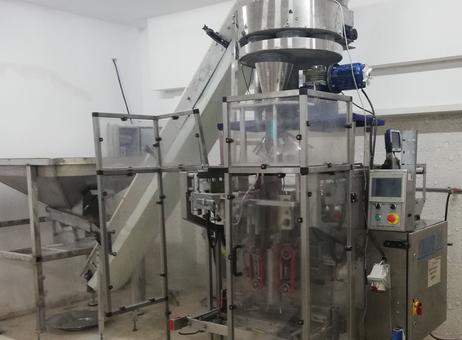

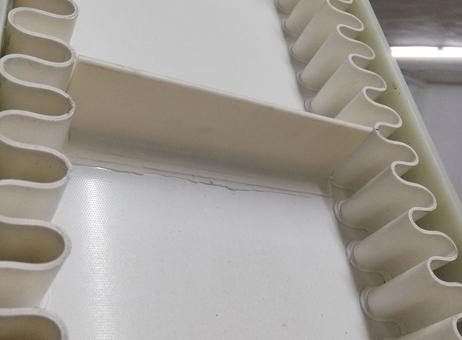

The machine setup includes a large stainless steel hopper with a slanted bottom supported by a rectangular frame, which feeds product material. An inclined conveyor belt equipped with white paddles transports the material from the large hopper to a smaller hopper positioned above the filling station. The conveyor belt has raised edges and compartments designed to facilitate sachet transport.

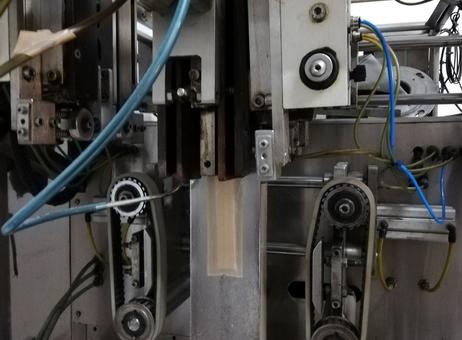

The Cyclone 300 comes with four forming tubes—two rectangular and two circular—to accommodate different bag shapes. It features four side heat sealers that create sealed edges on the bags, and a mechanism that enables the formation of a base for bags made using rectangular forming tubes, allowing the bags to stand upright on shelves.

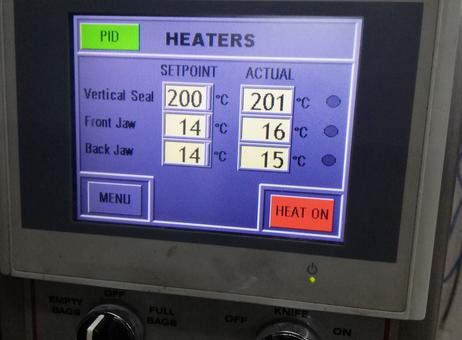

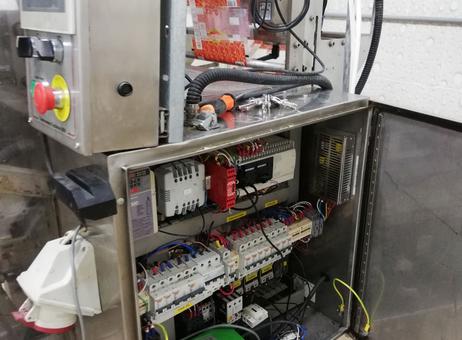

The control panel is mounted on the machine's side and includes a touchscreen interface, rotary knobs, a green start/reset button, and a large red emergency stop button for operational control and safety. Heater settings for vertical seals and jaws are adjustable through the control system.
Additional features include a Domino V230 printer capable of printing dates, barcodes, and images on the bags. The machine operates on a 400 V (3 Phase), 50 Hz power supply and requires pneumatic air at 6 bar pressure.
The packing machine is equipped with sensors that automate the operation of the conveyor belt and vibrating feeder, enhancing efficiency. The volumetric tray has six cups, each with a diameter of 140 mm and height of 100 mm, providing a volume of 1.5 liters per cup. The maximum film width the machine can handle is 600 mm.
This system also includes a large feed hopper (1200 mm x 1200 mm x 1800 mm, 200 kg) and a conveyor belt (3300 mm x 350 mm x 150 mm, 50 kg). The machine appears to be in good physical condition with no visible damage. Several components such as belts, air cylinders, and electronics have been replaced, and the PLC code has been modified to optimize operation. The control system can be adapted to remove the volumetric tray and integrate a multihead scale if needed.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical from fill and seal machine for packing granular materials (such as pulses, rice, sugar, cereals, etc.)
The packing machine model name is : Cyclone 300 (Manufactured by Technosys P.E.S. Limited, UK)
The packing machine comes with the following items:
Four forming tubes (2 rectangular, 2 circular)
Large hopper with a vibrating feeder
Conveying belt from the large hopper to a small hopper over the packing machine (as can be seen in the photos)
Volumetric tray havign 6 cups
Each cup has a diameter of 140 mm and a height of 100 mm (cup volume = 1.5 L)
Sensors for automatic operation of the belt and vibraing feeder
Power Requirement: 400 V (3 Phase), Frequency: 50 Hz
Pneumatic Air Requirement: 6 bar
The packing machine is equipped with a Domino V230 printer which can print date and bar code and other information (such as a picture or so)
The packing machine is equipped with four side heat sealers to make edges to the bags
The packing machine is equipped with a mechanism to allow making a base for the bag to allow it to sit onshelves (This is only possible with rectangular forming tubes)
Maximum film widht that can be taken by the machine: 600 mm
The control system can be modified to remove the volumetic tray and integrate a multihead scale
Packing Machine Dimensions: 1900 mm (L) x 1100 mm(W) x 3000 mm (H) - Weight = 950 KG
Feed Hopper Dimensions: 1200 mm (L) x 1200mm (W) x 1800 mm(H) - Weight = 200 Kg
Conveyor belt dimensions: 3300 mm (L) x 350 mm (W) x 150 mm (H) - Weight = 50 Kg
Note: Several components of the machine were replaced with new ones (belts, air cylinders, electronics). In addition, the machine's PLC code was modified to resolve some issues and optimize operation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 5 |
| Last activity | Sept. 14, 2026 |
Vertical from fill and seal machine for packing granular materials (such as pulses, rice, sugar, cereals, etc.)
The packing machine model name is : Cyclone 300 (Manufactured by Technosys P.E.S. Limited, UK)
The packing machine comes with the following items:
Four forming tubes (2 rectangular, 2 circular)
Large hopper with a vibrating feeder
Conveying belt from the large hopper to a small hopper over the packing machine (as can be seen in the photos)
Volumetric tray havign 6 cups
Each cup has a diameter of 140 mm and a height of 100 mm (cup volume = 1.5 L)
Sensors for automatic operation of the belt and vibraing feeder
Power Requirement: 400 V (3 Phase), Frequency: 50 Hz
Pneumatic Air Requirement: 6 bar
The packing machine is equipped with a Domino V230 printer which can print date and bar code and other information (such as a picture or so)
The packing machine is equipped with four side heat sealers to make edges to the bags
The packing machine is equipped with a mechanism to allow making a base for the bag to allow it to sit onshelves (This is only possible with rectangular forming tubes)
Maximum film widht that can be taken by the machine: 600 mm
The control system can be modified to remove the volumetic tray and integrate a multihead scale
Packing Machine Dimensions: 1900 mm (L) x 1100 mm(W) x 3000 mm (H) - Weight = 950 KG
Feed Hopper Dimensions: 1200 mm (L) x 1200mm (W) x 1800 mm(H) - Weight = 200 Kg
Conveyor belt dimensions: 3300 mm (L) x 350 mm (W) x 150 mm (H) - Weight = 50 Kg
Note: Several components of the machine were replaced with new ones (belts, air cylinders, electronics). In addition, the machine's PLC code was modified to resolve some issues and optimize operation.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Technosys P.E.S. Ltd. Cyclone 300 is a vertical form-fill-seal bagging machine designed for automatic packing of solid granular products such as pulses, rice, sugar, and cereals. Manufactured in 2002, this machine features a robust stainless steel frame with transparent protective panels for safety and easy monitoring of operations. It measures 1900 mm in length, 1100 mm in width, and 3000 mm in height, weighing approximately 950 kg.
The machine setup includes a large stainless steel hopper with a slanted bottom supported by a rectangular frame, which feeds product material. An inclined conveyor belt equipped with white paddles transports the material from the large hopper to a smaller hopper positioned above the filling station. The conveyor belt has raised edges and compartments designed to facilitate sachet transport.
The Cyclone 300 comes with four forming tubes—two rectangular and two circular—to accommodate different bag shapes. It features four side heat sealers that create sealed edges on the bags, and a mechanism that enables the formation of a base for bags made using rectangular forming tubes, allowing the bags to stand upright on shelves.
The control panel is mounted on the machine's side and includes a touchscreen interface, rotary knobs, a green start/reset button, and a large red emergency stop button for operational control and safety. Heater settings for vertical seals and jaws are adjustable through the control system.
Additional features include a Domino V230 printer capable of printing dates, barcodes, and images on the bags. The machine operates on a 400 V (3 Phase), 50 Hz power supply and requires pneumatic air at 6 bar pressure.
The packing machine is equipped with sensors that automate the operation of the conveyor belt and vibrating feeder, enhancing efficiency. The volumetric tray has six cups, each with a diameter of 140 mm and height of 100 mm, providing a volume of 1.5 liters per cup. The maximum film width the machine can handle is 600 mm.
This system also includes a large feed hopper (1200 mm x 1200 mm x 1800 mm, 200 kg) and a conveyor belt (3300 mm x 350 mm x 150 mm, 50 kg). The machine appears to be in good physical condition with no visible damage. Several components such as belts, air cylinders, and electronics have been replaced, and the PLC code has been modified to optimize operation. The control system can be adapted to remove the volumetric tray and integrate a multihead scale if needed.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
