| Manufacturer | TAKISAWA |
|---|---|
| Model | TMM250 M1 |
| Year | 2008 |
| Location | Germany
|
The Takisawa TMM250 M1 is a CNC lathe machine manufactured in 2008, equipped with a FANUC 180is-TB control system. It features both upper and lower turrets, each with 15 stations, allowing for versatile machining operations. The machine supports a maximum turning diameter of 350 mm and a maximum turning length of 800 mm, with a flange length capacity of 200 mm. The left spindle accommodates a chuck size of 250 mm and bar capacity of 76.2 mm, while the right spindle supports a 200 mm chuck and a bar capacity of 50.8 mm. Both spindles and the rotary tool operate at speeds up to 4000 min⁻¹. Feed rates for the upper turret are X1: 24 m/min, Y: 12 m/min, and Z1: 30 m/min, with the lower turret at X2: 24 m/min and Z2: 30 m/min. Motor power ratings include 22 kW (30 min) and 15 kW continuous for the left spindle, 18.5 kW (30 min) and 11 kW continuous for the right spindle, and 5.5 kW (S3 25%) and 3.7 kW continuous for the rotary tool. The machine measures 2250 mm in height and requires a floor space of 4745 mm by 2932 mm, weighing approximately 8500 kg.

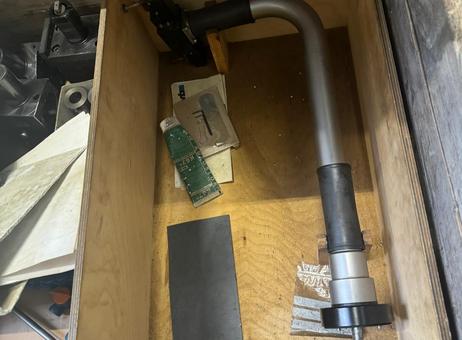

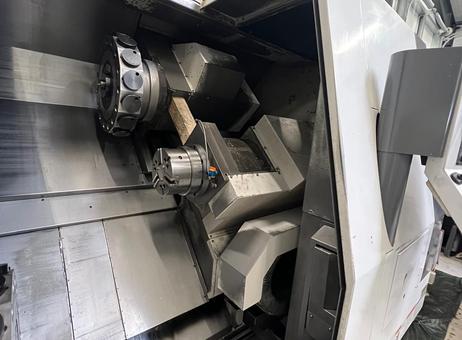

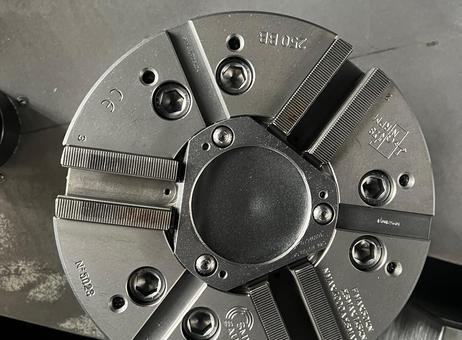

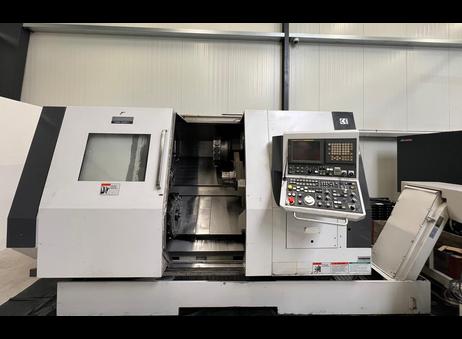

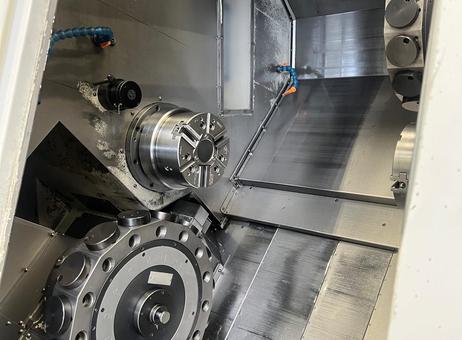

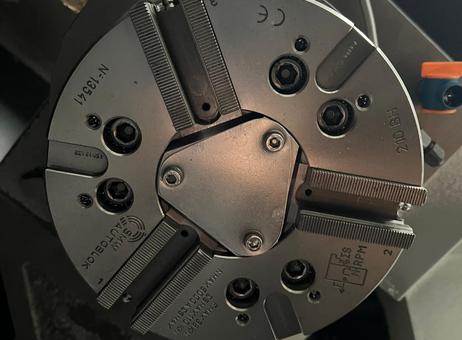

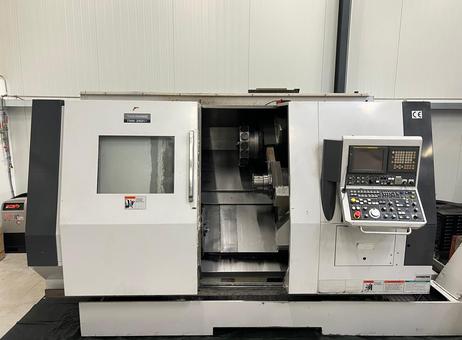

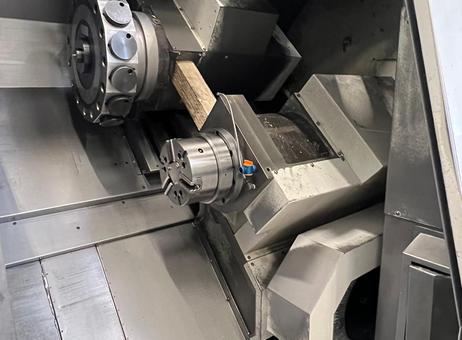

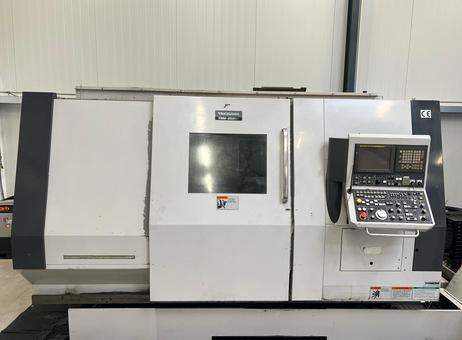

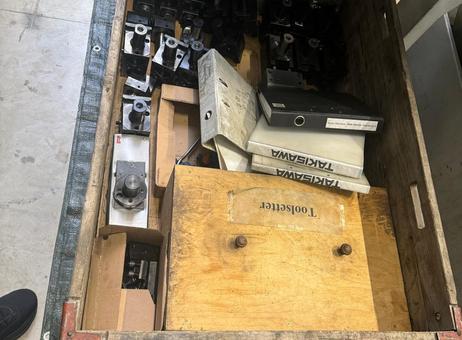

The machine is equipped with a large window on the door for monitoring the machining area, and safety warning labels are present on the door and below the control panel. The exterior shows some signs of wear and dirt marks, while the interior machining area appears clean and well-maintained with visible chuck and turret tool holders. A 3-jaw chuck marked 'SNW AUTOELOK 250BB' is included and is in good condition. Accessories provided include an extensive tool package, a tool eye, an IKZ system with 24 bar pressure and filter, a chip conveyor, and manuals. Additional items observed include a wooden crate containing multiple tool holders, manuals labeled 'TAKISAWA', a wooden box labeled 'Toolsetter', and a separate wooden box holding a curved metal pipe with rubber ends, small tools such as hex keys, a green tube, and paper documents. Overall, the machine and accessories show moderate use with some signs of wear but are organized and complete.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Takisawa TMM250 M1

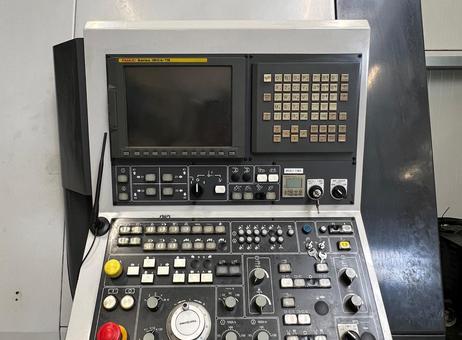

Control: FANUC 180is-TB
Feed time: 14,850 h
Switch-on time: 60,000 h
Upper turret ●
Lower turret ●
Chuck size left spindle: 250 mm
Chuck size right spindle: 200 mm
Turret: 2 x 15 stations
Y-axis: 100 mm (+/- 50 mm)
Max. Turning diameter: φ 350 mm
Maximum turning length: 800 mm (200 mm for flange)
Bar capacity:
Left spindle: φ76.2 mm
Right spindle: φ50.8 mm
Spindle speeds:
Left spindle: 4000 min-¹
Right spindle: 4000 min-¹
Rotary tool: 4000 min-¹
Feed rate:
Upper turret: X1: 24 m/min, Y: 12 m/min, Z1: 30 m/min
Lower turret: X2: 24 m/min, Z2: 30 m/min
Motor power:
Left spindle: 22 kW (for 30 min), 15 kW (continuous)
Right spindle: 18.5 kW (for 30 min), 11 kW (continuous)
Rotary tool: 5.5 kW (S3 25%), 3.7 kW (continuous)
Dimensions
Height: 2250 mm
Required space: 4745 mm × 2932 mm
Weight: 8500 kg
Accessories:
- Extensive tool package
- Tool eye
- IKZ with 24 bar pressure and filter system
- Chip conveyor
- Manuals
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
