Takisawa EX-508 cnc lathe
| Manufacturer | Takisawa |
|---|---|
| Model | EX-508 |
| Year | 2006 |
| Location | Italy
|
| Category | Lathes - CNC lathes |
| Turning length | 380 mm |
| Turning Ø | 300 mm |
| Type of CNC | |
| X-axis | 185 mm |
| Z-axis | 455 mm |
| Spindle taper | |
| Number of turrets | 1 |
| Turning speed | 4000 rpm |
| Spindle motor power | 18.5 kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 5200 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Takisawa EX-508 |
| Product id | P250801136 |
| Language |
cnc струг Takisawa EX-508
Soustruh cnc Takisawa EX-508
Takisawa EX-508 cnc drejebænk
Takisawa EX-508 Drehmaschine CNC
cnc τόρνος Takisawa EX-508
Takisawa EX-508 cnc lathe
Torno cnc Takisawa EX-508
Tour cnc Takisawa EX-508
cnc tokarski stroj Takisawa EX-508
Takisawa EX-508 cnc eszterga
Tornio cnc Takisawa EX-508
cnc tekinimo staklės Takisawa EX-508
Takisawa EX-508 cnc-draaibank
Tokarka CNC Takisawa EX-508
Torno CNC Takisawa EX-508
strung cnc Takisawa EX-508
Takisawa EX-508 Токарный станок с ЧПУ
cnc strug Takisawa EX-508
Takisawa EX-508 cnc svarv
Cnc torna Takisawa EX-508
|

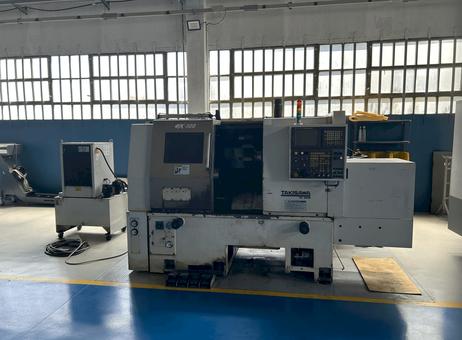

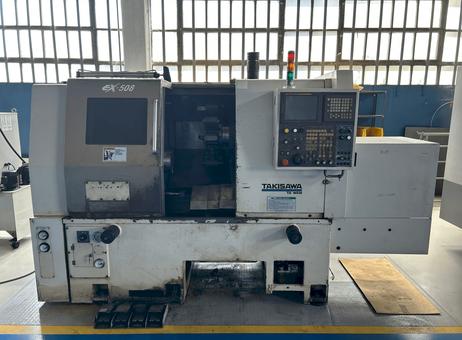

The Takisawa EX-508 is a CNC lathe machine manufactured in 2006 by Taiwan Takisawa Technology Co., Ltd. It features a horizontal turning design with a maximum turning diameter of 300 mm and a turning length of 380 mm, making it suitable for precision turning tasks on small to medium-sized workpieces. The machine is equipped with a single 12-position motorized turret that supports both radial and axial tooling, allowing for versatile machining operations.

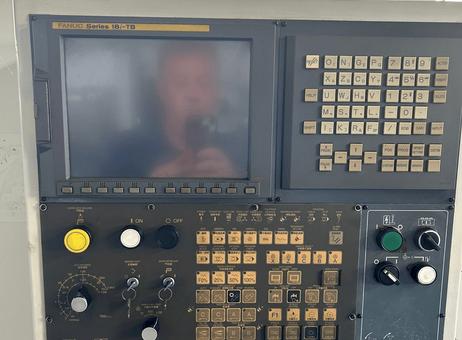

This lathe includes a FANUC Series 18i-TB CNC control panel, which offers multiple buttons and a screen for programming and operation, along with labeled controls such as RESET, HELP, SHIFT, PAGE, and axis controls. An emergency stop button and power switches are also present for safety and convenience. The control panel is mounted on the right side of the machine, complemented by foot pedals located at the base for additional operational control.
The machine has an X-axis travel of 185 mm and a Z-axis travel of 455 mm, with rapid traverse rates of 24 m/min and 20 m/min respectively. Its spindle motor delivers up to 18.5 kW of power, with a maximum spindle speed of 4000 rpm, supporting demanding machining applications. The machine weighs approximately 5200 kg, reflecting its robust construction.

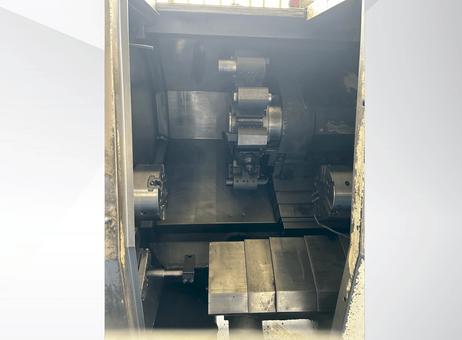

The interior machining area includes a chuck and tooling fixtures mounted on a metal bed, designed to securely hold workpieces during operation. The interior shows some signs of wear and oil stains but remains intact. The exterior surfaces of the machine exhibit signs of wear and dirt, particularly on the lower sections and door window, which shows some smudges but no visible cracks. The lathe door features a latch for opening and closing and displays the model name EX-508.
Additional features include a coolant or hydraulic unit visible nearby, and a yellow safety warning label on the door. The machine is certified with ISO 9001 compliance, indicating adherence to quality management standards. This Takisawa EX-508 is a well-equipped CNC lathe suitable for various turning operations requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Takisawa EX-508 was manufactured in 2006. A horizontal turning machine featuring a turning diameter of 300 mm, length of 380 mm, and a robust 12-position turret. It includes a Fanuc 18 i TB control, ensuring precision and ease of operation. Ideal for detailed turning tasks, it also boasts a spindle motor power of 11/18.5 kW for demanding operations. For more information about this machine, please reach out to us.
Machine weight: 5200 kg
Spindle speed range: 4000 rpm
Spindle motor power: 11/18.5 kW
X-Axis Movement: 185 mm
X-Axis Rapid Traverse: 24 m/min
Z-Axis Movement: 455 mm
Z-Axis Rapid Traverse: 20 m/min
Number of turrets: 1
The machine has a spindle and counter spindle, motorized turret with one radial tool and one axial tool included, presetting, automatic door.
Turning diameter: 300 mm
Turning length: 380 mm
Turret: 12 n
Machine still under power
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
