Contact us to receive an offer.
| Manufacturer | TAJMMAC - ZPS Zlín |
|---|---|
| Model | H 40 TREND |
| Year | 2004 |
| Location | Czech Republic
|
This TAJMMAC - ZPS Zlín H 40 TREND is a horizontal machining center designed for versatile 4-axis machining applications. Manufactured in 2004, the machine features working travels of 560 mm along the X-axis, 510 mm along the Y-axis, and 560 mm along the Z-axis. It is equipped with a rotary table capable of 360° rotation with 1° indexing, providing enhanced machining flexibility. The rotary table has a working area of 400 x 400 mm and includes 48 threaded holes sized M12 for secure workpiece clamping.
The machine includes a two-pallet automatic pallet changer (APC), allowing for efficient workflow with two pallets each measuring 400 x 400 mm. The spindle motor delivers 12 kW of power and can reach speeds up to 10,000 rpm, utilizing an SK 40 tool clamping cone. The tool magazine is a chain type holding up to 45 tools, supporting a wide range of machining operations.
The machining center measures approximately 5307 mm in length and 4430 mm in width, with a total weight of about 8500 kg. High-pressure cooling is integrated via a LOSMA system, and a tool laser probe is included for precise tool measurement and positioning.

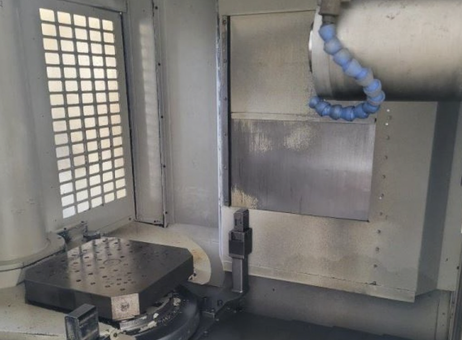

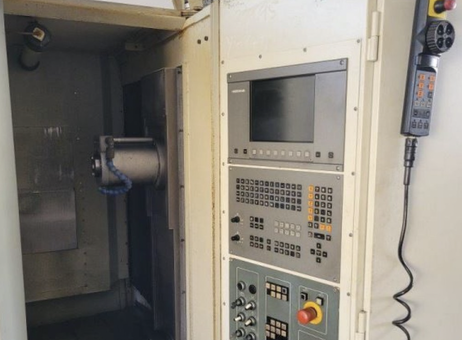

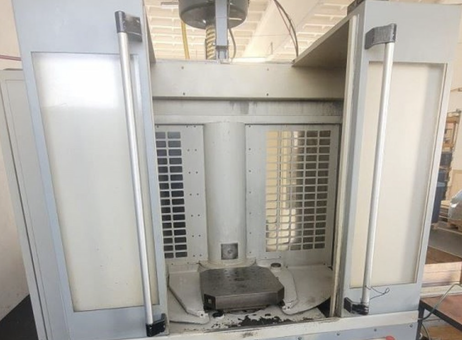

Visual inspection shows the machine has an open double-door design for easy access to the machining area, where the rotary table and clamps are visible for securing workpieces. The spindle head is labeled 'DEANMIS' with model '1000/2'. The interior exhibits some signs of use, including dirt and wear marks, but no major damage is apparent. A control panel with buttons and an emergency stop is located on the lower right front side of the machine for operational control.
Maintenance history includes spindle replacement in 2008, high-pressure pump replacement in 2019, and CYTEC collets clamping replacement in the table in 2024. This well-equipped machining center is suitable for various precision machining tasks requiring 4-axis capabilities and automated pallet handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
HEINDENHAIN iTNC 530
Working travels:
X - stand - 560 mm
Y - headstock - 510 mm
Z - rotary table support - 560 mm
B - rotary table with indexing by 1° - 360°
Number of pallets - 2
- pallet working area - 400 x 400 mm
- number of threaded holes x dimensions - 48 x M12
Speeds - 40 - 10000 min-1
Tool clamping cone - SK 40
Tool magazine - chain/45 tools
Spindle motor power 12kW
Machine weight approx. - 8,500 kg
Machine dimensions approx. - 5,307 x 4,430 mm
Equipment 4-axis machining - rotary table
APC - two-pallet automatic change
high-pressure cooling LOSMA
tool laser probe
2008 - spindle replacement
2019 - replacement of high-pressure pump
2024 replacement of CYTEC collets clamping in the table
Good condition - possibility of testing.
