Contact us to receive an offer.
| Manufacturer | SVmetal |
|---|---|
| Model | ANB-5E |
| Year | 2018 |
| Location | Poland
|
The SVmetal ANB-5E is a specialized tool grinder designed primarily for maintaining and sharpening tools used in CNC punching machines. Proper and regular grinding of these tools is essential to ensure sharp cutting edges and extend their service life. Typically, the average life expectancy of tools in CNC punching operations is around 200,000 strokes, with grinding recommended when the radius on the cutting edge reaches 0.1 mm.
This model supports grinding of tools from various systems, including the "Trumpf" and "turret" systems, with additional options available upon request. The grinding process can be performed directly by the punching machine operator, and the machine offers an automatic mode that minimizes the influence of human error, contributing to consistent and high-quality results.
The ANB-5E features an effective internal cooling system that helps maintain optimal grinding temperatures, preventing tool damage. It uses an ultra-fine grinding disc with automatic control to ensure a high-quality grinding surface. The machine's design limits the maximum thickness of material removal, encouraging more frequent sharpening that ultimately extends tool life.

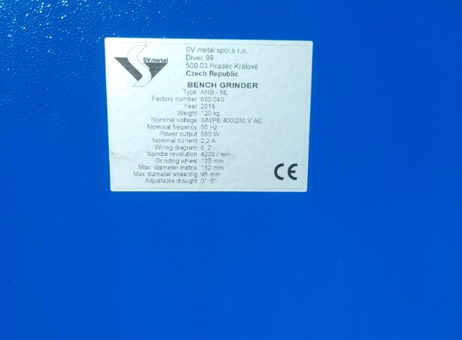

With a compact and robust design weighing 120 kg, the machine is equipped with a grinding wheel diameter of 125 mm and can reach a maximum wheel speed of 4200 revolutions per minute. It operates on a voltage of 3N/PE 400/230 V AC and consumes 550 W of power at 50 Hz frequency. The nominal current is 2.2 A.

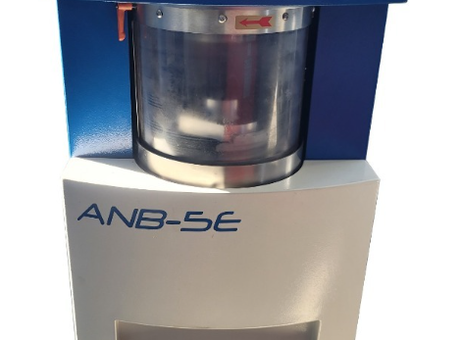

The ANB-5E includes a transparent cylindrical protective shield to enhance user safety during operation. The control panel features clearly marked buttons for intuitive operation, including plus and green/red buttons for easy control. The machine appears clean and well-maintained, with no visible damage or rust, reflecting its good physical condition.
Manufactured in 2018 by SVmetal spol.s r.o. in the Czech Republic, this tool grinder offers low inter-operating costs and includes an automatic diagnostic system to assist with maintenance and troubleshooting. Its user-friendly interface and reliable performance make it a valuable asset for maintaining the precision and longevity of CNC punching machine tools.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Tool Grinder
The estimated average life of tools used in CNC punching machines is about 200,000 strokes. To achieve this result, it is necessary to grind the tools carefully and regularly to make sure they always have sharp cutting edges. When the radius on the cutting part reaches 0.1mm, the tool should go to grinding.
- Grinding tools of the "Trumpf" system,
- grinding of tools of the "turret" system,
- grinding of tools of other systems - on request,
- grinding can be carried out directly by the punching machine operator,
- grinding in automatic mode eliminates the influence of the human factor on the final quality,
- effective internal cooling system,
- high quality grinding surface due to ultra-fine, automatically controlled grinding disc,
- limited maximum thickness promotes removal more often sharpening extend tool life,
- compact design,
- low inter-operating costs,
- easy intuitive operation,
- automatic diagnostic system.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
