Contact us to receive an offer.
| Manufacturer | SUNHOPE |
|---|---|
| Model | SBH450-5HD |
| Year | 2017 |
| Location | Italy
|
This pre-owned SUNHOPE SBH450-5HD paper bag making machine, manufactured in 2017, is designed for the fully automatic production of square bottom paper bags with twisted handles. It processes materials including paper rolls, paper patch rolls, and paper ropes to create bags suitable for food packaging, clothing, and luxury branding products.
The machine integrates multiple functions such as handle making, handle application, tube forming, tube cutting, and bottom forming into one continuous operation. It has a maximum capacity of 7,200 units per hour, with a maximum speed of 120 bags per minute.
Bag specifications include a face width range of 240 to 450 mm (205 to 450 mm without handles), bottom sizes from 89 to 180 mm, and tube cut-off lengths between 380 and 640 mm (368 to 762 mm without handles). The paper roll width can vary from 660 to 1290 mm (618 to 1310 mm without handles), with a maximum roll diameter of 1500 mm and an inner core diameter of 76 mm. It supports paper thicknesses from 90 to 160 gsm.
The machine is equipped with a servo motorized plate device and has a total power requirement of 28 kW. It weighs approximately 18,000 kg, with dimensions of about 16,000 mm in length, 4,800 mm in width, and 2,400 mm in height.
Handle dimensions are adjustable, with lengths from 102 to 152.4 mm, patch widths of 45 to 50 mm, and handle patch lengths of 152.4 mm. The suggested paper patch width is 90 to 100 mm, with a basis weight of 115 g/m².

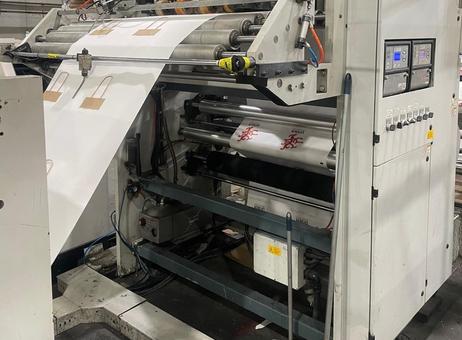

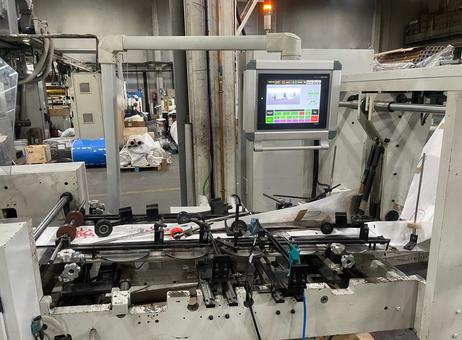

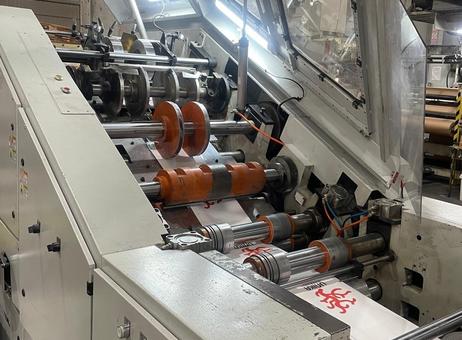

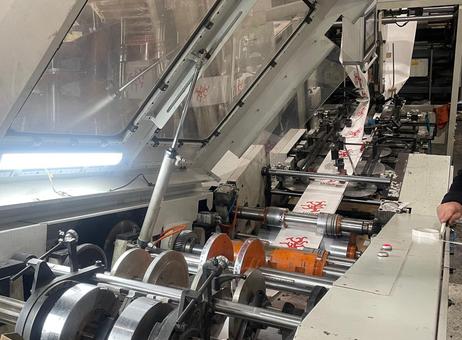

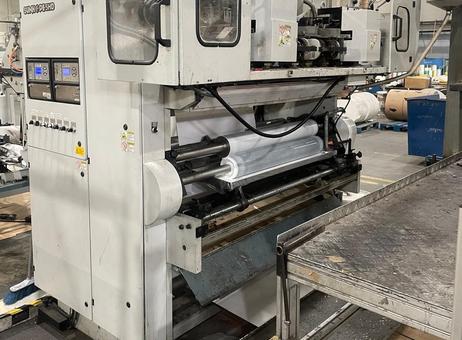

The machine is situated in an industrial warehouse environment and shows visible signs of use and wear, including some dirt marks. It features a control panel with an active touchscreen display and multiple metal rollers guiding the printed paper. A safety light indicator is present on top of the machine.
This fully integrated line is immediately available for sale subject to prior sale. Potential buyers should note the visible condition and wear consistent with usage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
SOS paper bag making machines - with handles unit
This pre-owned SUNHOPE SBH450-HD, for sale from the first owner, is designed to manufacture square bottom paper bags with a twisted handle from paper roll, paper patch roll and paper rope.
By implementing handle making, handle application, tube forming, tube cutting, and bottom forming with a fully automatic process, this machine is especially suited to producing bags for food packaging, clothing and luxury branding products.
The line is visible in operation and immediately available for sale (subject to unsold).
Bag Face Width: 240 - 450 (205 - 450 w/o handles)
Bag Bottom Size: 89 - 180 mm
Tube Cut Off Length: 380 - 640 (368 -762 w/o handles)
Paper Roll Width: 660 - 1290 mm (618 - 1310 mm w/o handles)
Max Paper Roll Diameter: 1500 mm
Inner Core Diameter: 76 mm
Paper Thickness: 90 - 160 gsm
Max Speed Bags Min: 120 bags/min

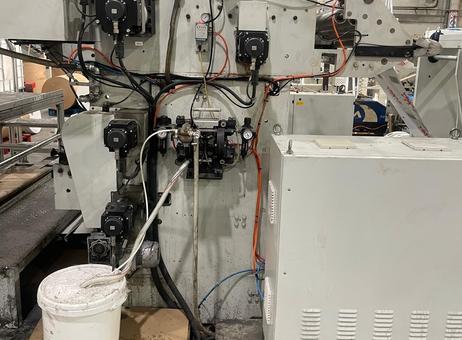

Servo: Servo Motorized Plate Device
Total Power: 28 Kw
Machine Weight Approx: 18000 kg
Dimensions Of The Machine Approx: Lenght 16000 mm | Width 4800 mm | Height 2400 mm
Twisted Paper Cord Handle Dimensions: Handle Length (variable): 102 - 152,4 mm | Patch Width 45 - 50 mm | Handle Patch Length (variable) 152,4 mm | Handle width 76 mm
Paper Cord Handle Material Suggested: Paper patch width (master roll) : 90- 100 mm | Paper patch basis weight: 115 g/m3 | Patch paper roll diameter: 1270 mm | Paper patch roll diameter: 75 mm | Paper cord diameter (suggested): 34 mm
Visible In Operation: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Consultant / Intermediary |
| Active since | 2018 |
| Offers online | 98 |
| Last activity | Oct. 26, 2026 |
