| Manufacturer | Summit |
|---|---|
| Model | V350 |
| Year | |
| Location | USA
|
| Category | Thermoforming - Form, Fill and Seal (FFS) lines |
| Moulding length | mm |
| Moulding width | mm |
| Forming depth | mm |
| Engine Power | kW |
| Length x width x height | 60.0 × 48.0 × 84.0 |
| Weight | kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 23/10/2026 |
| Product id | P2606091378 |
| Language |
Вертикална фреза Summit V350
Svislá frézka Summit V350
Summit V350 Vertikal Fræsemaskine
Vertikale Fräsmaschine Summit V350
Κατακόρυφος Φρεζάρισμα Summit V350
Summit V350 Vertical Milling Machine
Fresadora vertical Summit V350
Fraiseuse verticale Summit V350
Vertikalni glodalica Summit V350
Summit V350 Függőleges Marógép
Fresatrice verticale Summit V350
Vertikalus frezavimo staklės Summit V350
Summit V350 verticale freesmachine
Pionowa frezarka Summit V350
Fresadora Vertical Summit V350
Mașină de frezat verticală Summit V350
Вертикальный фрезерный станок Summit V350
Вертекална фреза Summit V350
Summit V350 Vertikal Fräsmaskin
Summit V350 Dikey Freze Makinesi
|

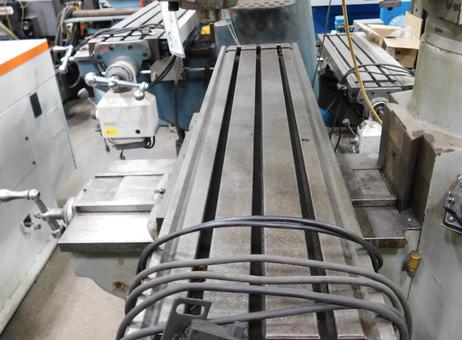

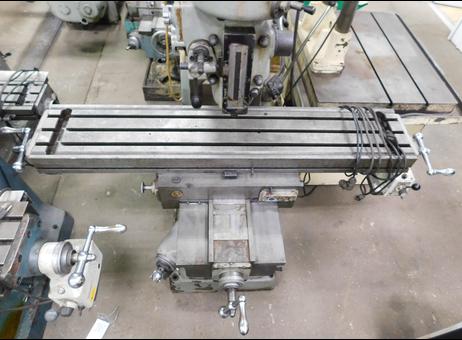

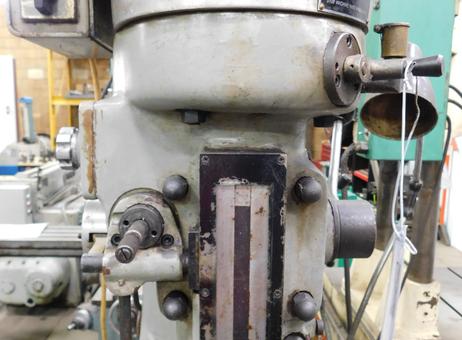

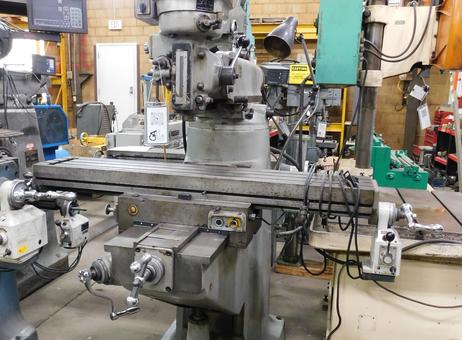

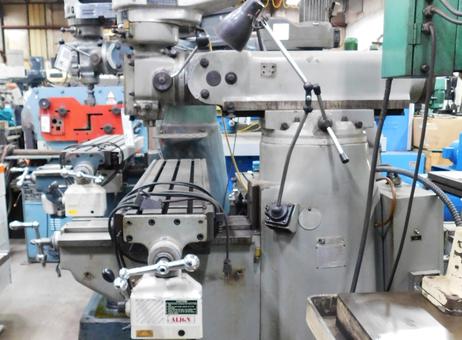

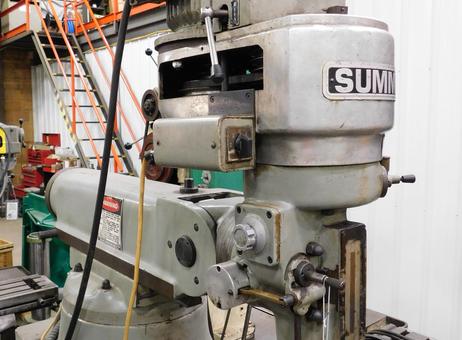

This listing features a Summit V350 industrial milling machine, designed for versatile turning and milling operations. The machine is equipped with an X-axis power feed to facilitate precise and controlled movement during machining tasks. It includes a horizontal worktable measuring 10 inches by 50 inches, fitted with T-slots that allow for secure mounting of workpieces or fixtures. The table offers travels of 16 inches by 32 inches, providing a substantial working area. Additional movements include a knee travel of 16 inches and a quill travel of 5 inches, with the quill featuring an R-8 taper. The main motor is rated at 2 HP and utilizes a step pulley system to achieve spindle speeds ranging from 78 to 4800 RPM. Quill feed rates are available at 0.0015, 0.003, and 0.006 inches, enabling fine adjustments for various machining requirements.
The machine's dimensions are approximately 60 inches in length, 48 inches in width, and 84 inches in height, with a total weight of around 3,000 pounds. The milling machine includes manual handwheels and levers for controlling table and spindle movements, allowing for operator precision. A large motor is mounted on top of the machine, contributing to its power and functionality.
Visible signs of wear and surface rust can be observed on the base and table, indicating that the machine has been used. These signs are typical for industrial equipment of this nature but should be considered when assessing the machine's condition. Overall, the Summit V350 milling machine offers robust capabilities suitable for a range of machining tasks, supported by its substantial table size, power feed, and motor specifications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
turning/milling
vertical mills
Equipped with:
X axis power feed
Table Size: 10" x 50"
Table Travels: 16" x 32"
Knee Travel: 16"
Quill Travel: 5"
Quill Taper: R-8
Main Motor: 2 HP, step pulley
Spindle Speeds: 78-4800 RPM
Quill Feeds: 0.0015, 0.003, 0.006
Dimensions: 60" x 48" x 84"
Machine Weight: 3,000 LBS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 109 |
| Last activity | Oct. 15, 2026 |
