Machine Title: Stürtz SE-4AS-CNC Automatic Welding and Cleaning Line
Manufacturer: Stürtz
Model: SE-4AS-CNC
Year of Manufacture: 1998
This industrial machine is designed for automated PVC window production, combining welding and corner cleaning functions to enhance manufacturing efficiency and product consistency. It features two welding levels and four welding heads operating across three axes, accommodating frame sizes ranging from a minimum of 11.8 inches by 11.8 inches (0.30 m × 0.30 m) up to a maximum of 78 inches by 98 inches (2.0 m × 2.5 m). The profile height capacity is 4-3/4 inches on each of the two levels.
The machine operates with an electrical power supply of 240V, with built-in transformers to 400V, and requires a 3-phase connection. Operating pressure is set at 7 BAR.
Key features include updated computer and display systems, two parallel automatic corner cleaning lines with automatic transfer per line, and automatic unloading into an integrated buffer station. It is equipped with profile guides, support fixtures, transfer timing belts, automatic clamping, and CNC programmable cleaning disks. The machine supports CNC head positioning and offers top and bottom horizontal and vertical scarfing, along with vertical and horizontal routing units. It also includes auto profile recognition during manual feed and supports network-ready data transfer for production management.
The setup includes two Stürtz SE-4 AS-CNC units, a Stürtz SE-HSM201/25BS, and a Stürtz SF-P 300/2 DS/S Buffer Station.

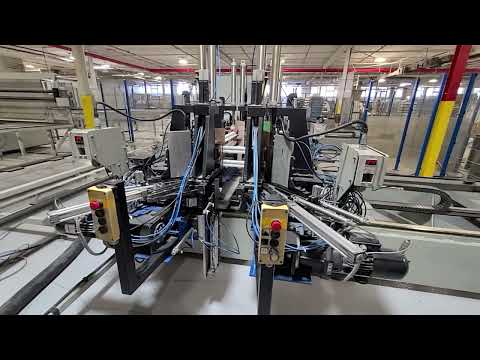

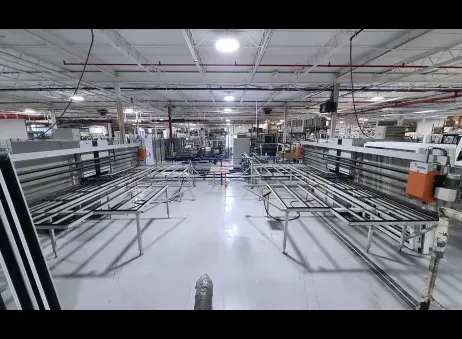

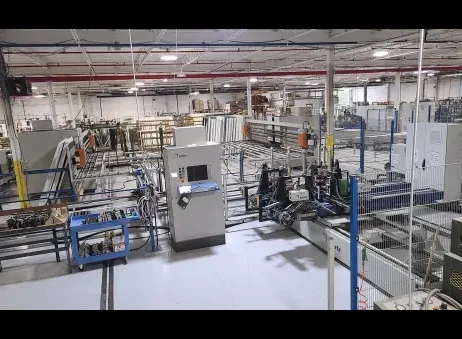

The equipment is installed in a clean and well-maintained factory environment, featuring multiple connected cables, pipes, and safety barriers. The machine incorporates a central control unit with a screen and buttons for operation control. Overall, this welding and cleaning line is suitable for integration into automated manufacturing lines requiring reliable and consistent performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine Title: Stürtz SE-4 AS-CNC Automatic Welding / Cleaning Line
Manufacturer: Sturtz
Model: SE-4 AS-CNC
Year of Manufacture: 1998
Technical Condition: As-is, where-is
Number of Welding Levels: 2
Number of Axes: 3
Number of Welding Heads: 4
Maximum Frame Capacity: 78 in × 98 in (2.0 m × 2.5 m)
Minimum Frame Capacity: 11.8 in × 11.8 in (0.30 m × 0.30 m)
Profile Height Capacity: 4-3/4” on each of 2 levels
Operating Pressure: 7 BAR
Electrical Power: 240V (built-in transformers to 400V)
Phase: 3 Phase
Equipped With:
- 2 Stürtz SE‑4 AS‑CNC
- Stürtz SE‑HSM201/25BS
- Sturtz SF‑P 300/2 DS/S Buffer Station
Features:
- Updated computer and display
- 2 parallel automatic corner cleaning lines with auto transfer per line
- Auto transfer for unloading
- Automatic unloading into Buffer Station
- Profile guides and support fixtures
- Transfer Timing Belts
- Automatic clamping
- Corner cleaning compatibility
- CNC head positioning
- Top & Bottom - horizontal & vertical scarfing
- CNC programmable cleaning disk
- CNC Top & Bottom Vertical routing units
- CNC Horizontal routing unit
- Auto profile recognition in manual feed
- Auto cleaning data transfer in network with welder
- Network ready - manual entry or interface for production data upload
Machine Description:
This used Stürtz Automatic Welding / Cleaning Line (1998) is designed for efficient PVC window production. The integrated welding and corner cleaning capabilities ensure consistent quality, high output, and reliable industrial performance, making it ideal for automated manufacturing lines.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
