| Manufacturer | STS |
|---|---|
| Model | AVANTGARDE HS |
| Year | 2009 |
| Location | Italy
|
Overview:

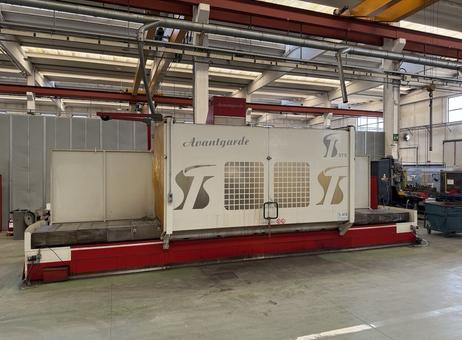

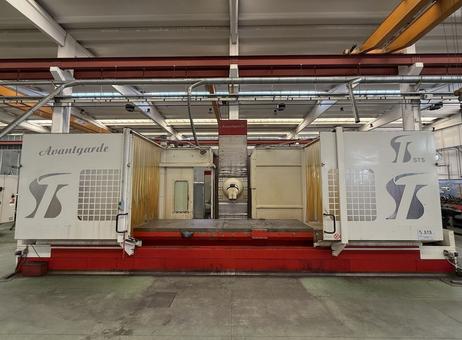

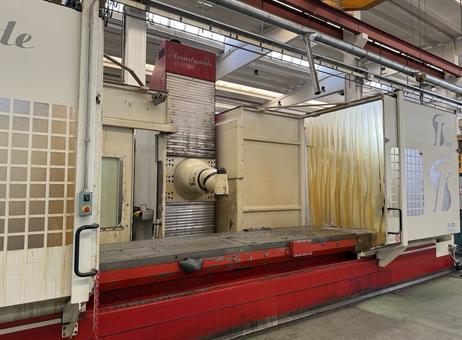

STS AVANTGARDE HS – T-column CNC milling machine with a large work envelope suitable for heavy and large-part machining. Capacity is listed as 4000 x 2000 x 1500 mm (X x Y x Z). Year of manufacture is given as 2009.
Key features and control:

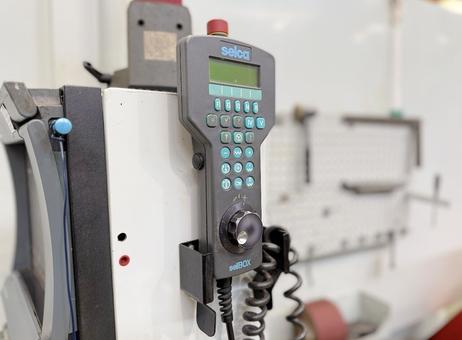

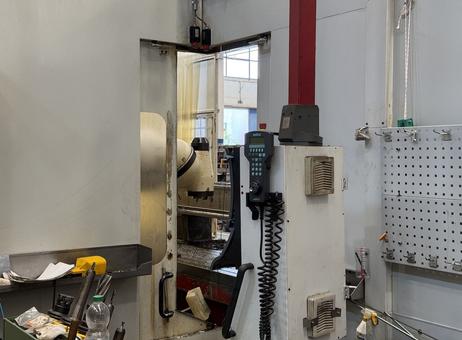

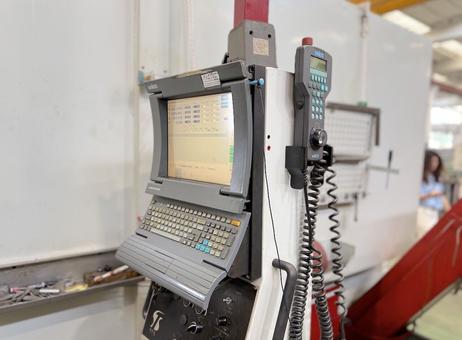

- CNC control: SELCA 4045D with SELBOX S2.
- Spindle: 37 kW spindle power with a maximum speed of 4000 rpm. Spindle taper/holder: ISO50 (DIN69871/A).
- Gearbox: Mechanical.
- Coolant/high-pressure system: CTS 20 Bar.
Work envelope and tables:
- Travel: Longitudinal (X) 4000 mm; Vertical (Y) 2000 mm; Transversal column (Z) 1500 mm.
- Primary table surface(s) and details: one listed surface 1100 x 1100 mm (resolution for B axis 0.001° indicated) and an additional table surface 4200 x 1100 mm with 4000 mm travel and 10 T-slots (18 mm). One listing indicates a table surface of 1100 x 1100 mm available on request.
Feeds and rapid traverse:
- Rapid traverse (X/Y/Z): 40 m/min each.
- Working feed rates (X/Y/Z): 20 m/min each.
Tooling and toolchanger:

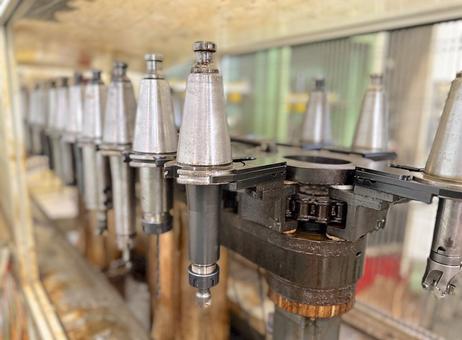

- ATC with 32 stations.
- Max tool diameter: 125 mm (180 mm with adjacent positions free).
- Max tool length: 350 mm.
- Max tool weight: 20 kg.
- Tool holder: ISO50.
Head and axes:

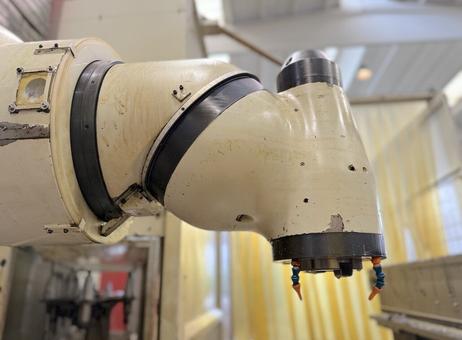

- Head type: Automatic strong head.
- A and C axes: listed as 144 x 2.5° (axis indexing specification as provided).
Chip handling and dimensions:
- Chip evacuator: rear screw chip conveyor X = 4000 mm, front screw chip conveyor X = 4000 mm, plus transverse chip conveyor.
- Machine overall dimensions listed as 9700 x 5300 x 4350 mm.
Notes and recommendation:
Data are provided from available information and may be incomplete or contain inaccuracies. Buyers are recommended to inspect the machine and confirm specifications prior to purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Milling Machine
Type
T-column
Brand
STS
Model
AVANTGARDE HS
Capacity
4000x2000x1500 mm / 157.48x78.74x59.06 in
Year of Manufacture
2009
Technical Specifications
Convert to Metric / Imperial
WORK FIELD
Longitudinal (X)
4000 mm / 157.48 in
Vertical (Y)
2000 mm / 78.74 in
Transversal column (Z)
1500 mm / 59.06 in
CNC
CNC
SELCA 4045D + SELBOX S2
SPINDLE
Spindle Power
37 kW
Gearbox
Mechanical
Rotation Speed
4000 rpm
Morse Taper Sleeve
ISO50 DIN69871/A
FEEDS
Rapid X
40 m/min / 1574.80 ipm
Rapid Y
40 m/min / 1574.80 ipm
Rapid Z
40 m/min / 1574.80 ipm
X
20 m/min / 787.40 ipm
Y
20 m/min / 787.40 ipm
Z
20 m/min / 787.40 ipm
Notes
Optical lines
ATC
Stations
32
Max Tool Diameter
125 mm / 4.92 in
Max Diameter with Adjacent Positions Free
180 mm / 7.09 in
Max Tool Length
350 mm / 13.78 in
Max Tool Weight
20 kg
Tool Holder
ISO50
TABLE 1
Available on Request
Yes

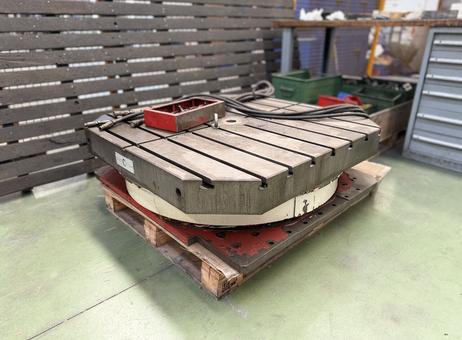

Surface
1100x1100 mm / 43.31x43.31 in
Resolution (B axis)
0.001 °
Support
Torque
TABLE 1
Surface
4200x1100 mm / 165.35x43.31 in
Travel
4000 mm / 157.48 in
Notes
10 T-slots 18mm

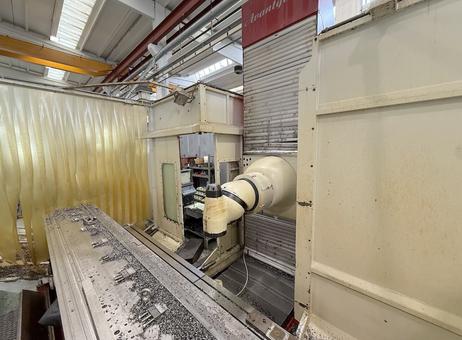

HEAD 1
Type
Automatic Strong Head
Spindle Taper
ISO50
Axis A
144x2.5 °
Axis C
144x2.5 °
Max Speed
4000 rpm
Max Power
37 kW
Coolant
CTS 20 Bar
EXTRA
Machine Dimensions
9700x5300x4350 mm / 381.89x208.66x171.26 in
High Pressure
CTS 20 Bar

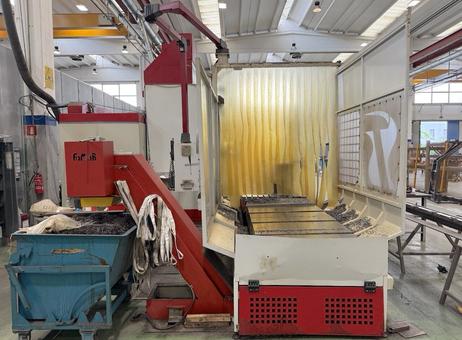

Chip Evacuator
Rear screw chip conveyor X = 4000 mm + Front screw chip conveyor X = 4000 mm + transverse chip conveyor
The provided data are based on information available to us, where possible obtained from manufacturers; therefore, despite our good faith, due to the nature and complexity of the equipment, this data may be incomplete and/or inaccurate and their correctness cannot be guaranteed in any way nor constitute any contractual obligation. We always recommend inspecting the equipment and requesting confirmation of the data.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
