Price on request
View price| Cutting length | 3150 mm |
| Max. thickness | 16 mm |
| Max cutting angle | 3 ° |
| Min cutting angle | 0.5 ° |
| Backgauge adjustment | 1000 mm |
| ------------------- | |
| Length x width x height | 4240.0 × 2520.0 × 2570.0 |
| Weight | 16300 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 25/05/2026 |

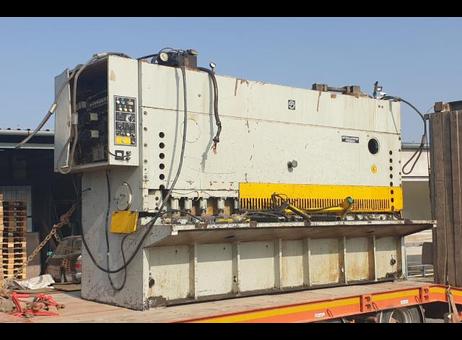

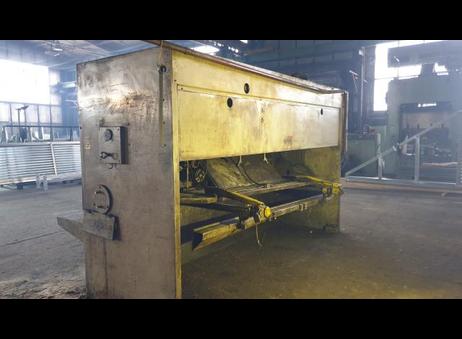

This hydraulic guillotine shear, manufactured by Strojárne Piesok, model CNTA 3150/16, is designed for precise cutting of sheet metal. It features a maximum cutting length of 3150 mm and can handle sheet thicknesses up to 16 mm. The cutting angle is adjustable between 0.5° and 3°, allowing for versatile cutting applications. The machine is equipped with a backgauge adjustment range of up to 1000 mm to ensure accurate positioning of materials during the cutting process. It operates with a total input power of 43 kW.
The machine has substantial dimensions, measuring 4240 mm in length, 2520 mm in width, and 2570 mm in height, and it weighs 16,300 kg. This robust construction supports its industrial use and stability during operation.
The machine's design includes a control panel located on the left side, featuring buttons and indicators for operational control. A yellow safety guard with black stripes is installed along the front cutting area to enhance operator safety. Mechanical arms and supports are present in the cutting area to facilitate material handling.
The exterior shows signs of wear, including visible rust and paint chipping, particularly on the upper edges and yellow-painted areas. Black cables are observed hanging on the left side of the machine. The side panel on the left includes access hatches with a circular handle, allowing maintenance access.
Please note that some details of the machine's condition and components are partially obscured due to lighting and shadows in the images. This machine is no longer in use but remains a substantial piece of equipment suitable for heavy-duty sheet metal cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The machine is in good technical condition, but it is no longer used. Technical parameters: Max. cut length: 3150 mm Max. sheet thickness: 16 mm Min. sheet thickness: 1.6 mm Cutting angle: 0.5-3 Number of cuts: 8 cuts/min Rear stop adjustment: 10-1000 mm Total machine input: 43 kW Machine dimensions lxwxh: 4240x2520x2570 mm Machine weight: 16300 kg
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What type of machine is this Strojárne Piesok CNTA 3150/16?
This Strojárne Piesok CNTA 3150/16 is a hydraulic guillotine shear.
Is documentation included with this equipment?
This equipment includes documentation as part of the included equipment.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 518 |
| Last activity | June 9, 2026 |
The machine is in good technical condition, but it is no longer used. Technical parameters: Max. cut length: 3150 mm Max. sheet thickness: 16 mm Min. sheet thickness: 1.6 mm Cutting angle: 0.5-3 Number of cuts: 8 cuts/min Rear stop adjustment: 10-1000 mm Total machine input: 43 kW Machine dimensions lxwxh: 4240x2520x2570 mm Machine weight: 16300 kg
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What type of machine is this Strojárne Piesok CNTA 3150/16?
This Strojárne Piesok CNTA 3150/16 is a hydraulic guillotine shear.
Is documentation included with this equipment?
This equipment includes documentation as part of the included equipment.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Cutting length | 3150 mm |
| Max. thickness | 16 mm |
| Max cutting angle | 3 ° |
| Min cutting angle | 0.5 ° |
| Backgauge adjustment | 1000 mm |
| ------------------- | |
| Length x width x height | 4240.0 × 2520.0 × 2570.0 |
| Weight | 16300 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 25/05/2026 |
This hydraulic guillotine shear, manufactured by Strojárne Piesok, model CNTA 3150/16, is designed for precise cutting of sheet metal. It features a maximum cutting length of 3150 mm and can handle sheet thicknesses up to 16 mm. The cutting angle is adjustable between 0.5° and 3°, allowing for versatile cutting applications. The machine is equipped with a backgauge adjustment range of up to 1000 mm to ensure accurate positioning of materials during the cutting process. It operates with a total input power of 43 kW.
The machine has substantial dimensions, measuring 4240 mm in length, 2520 mm in width, and 2570 mm in height, and it weighs 16,300 kg. This robust construction supports its industrial use and stability during operation.
The machine's design includes a control panel located on the left side, featuring buttons and indicators for operational control. A yellow safety guard with black stripes is installed along the front cutting area to enhance operator safety. Mechanical arms and supports are present in the cutting area to facilitate material handling.
The exterior shows signs of wear, including visible rust and paint chipping, particularly on the upper edges and yellow-painted areas. Black cables are observed hanging on the left side of the machine. The side panel on the left includes access hatches with a circular handle, allowing maintenance access.
Please note that some details of the machine's condition and components are partially obscured due to lighting and shadows in the images. This machine is no longer in use but remains a substantial piece of equipment suitable for heavy-duty sheet metal cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 518 |
| Last activity | June 9, 2026 |
