Contact us to receive an offer.
| Manufacturer | STRAUSAK |
|---|---|
| Model | FLEXIMAT |
| Year | 2012 |
| Location | Switzerland
|
The STRAUSAK FLEXIMAT is a CNC-controlled grinding machine designed for precision machining tasks. Manufactured in 2012, this machine features a total of five axes, allowing for versatile and complex grinding operations. It supports a maximum grinding wheel diameter of 160 mm with a spindle taper of ISO 50.

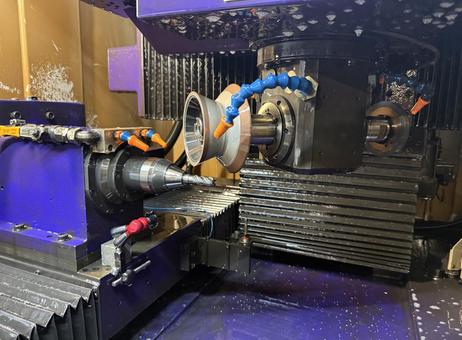

The machine offers axial motion capabilities with a crosswise travel of 360 mm, longitudinal travel of 240 mm, and vertical travel of 360 mm. The grinding head rotation (B axis) has a range of 470° with a resolution of 0.001°, and the spindle (C axis) also features a resolution of 0.001°. The workpiece spindle speed is set at 1000 rpm, while the grinding spindle speed is steplessly adjustable from 1000 up to 9000 rpm. The spindle motor delivers 6 kW of power, complemented by an 8 kW motor option.
Rapid traverse speeds reach up to 10 m/min, facilitating efficient machining cycles. The machine operates on a 50 Hz, 3-phase 400 Volt power supply and requires a total power of 10 kVA. It weighs approximately 2750 kg and measures 2050 mm in length, 1945 mm in width, and 2040 mm in height.

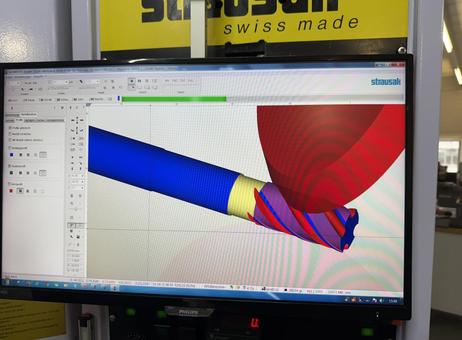

Additional accessories include a PC system for control, a 3D measuring feeler gauge for precision measurement, an electronic handwheel for manual control, and an air conditioner integrated into the switch cabinet to maintain optimal operating temperatures.

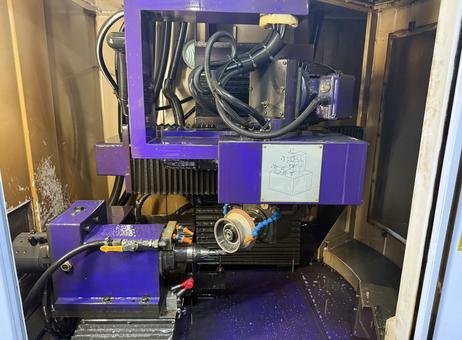

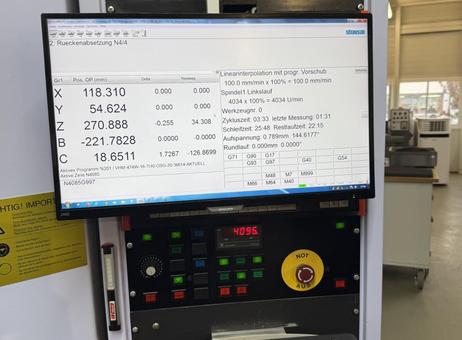

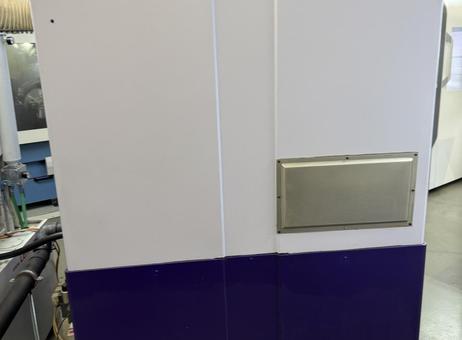

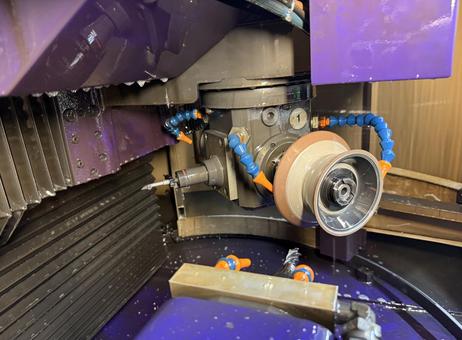

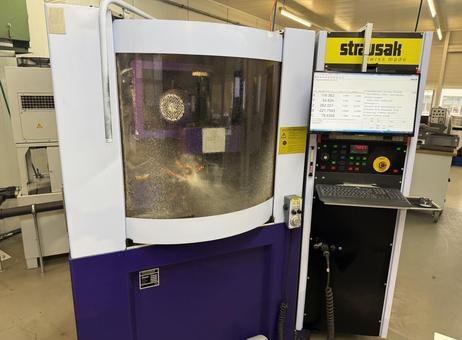

Observations confirm the presence of a protective transparent window that allows monitoring of the grinding process, a control panel with a monitor displaying numerical data, and Strausak branding. The control panel is equipped with an emergency stop button, keyboard, and mouse tray for operator input. The machine's metal panels, painted white and purple, appear in good condition without visible damage or rust. Coolant spray is visible inside the enclosure, indicating recent use or operation. This robust and well-equipped grinding machine is suitable for various precision grinding applications requiring multi-axis CNC control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical data
Number of axis total 5
Max. grinding wheel diamter 160 mm
Taper in spindle 50 ISO

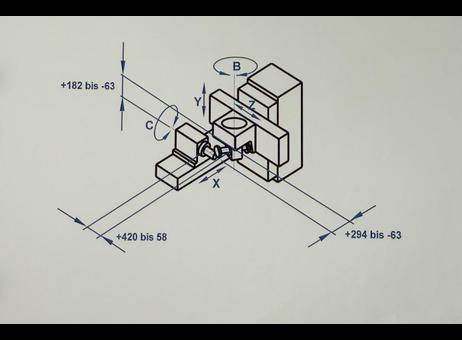

Axial motion:
Crosswise 360 mm
Longitudinal 240 mm
Vertical 360 mm
B axis (grinding head rotation) 470 °
Resolution 0.001 °
Work piece spindle speed 1000 rpm
C axis (spindle,resolution) 0.001 °
Grinding spindle speeds:
stepless
from 1000 rpm
up to 9000 rpm
Spindle motor 6 / 8 kW
Rapid traverse: 10 m/min
Voltage 50 Hz 3x 400 Volt
Grinding spindle motor 3.7 kW
Total power required 10 kVA
Machine's weight about 2750 kg
Overall dimensions machine:
Length 2050 mm
Width 1945 mm
Height 2040 mm
Various accessories:

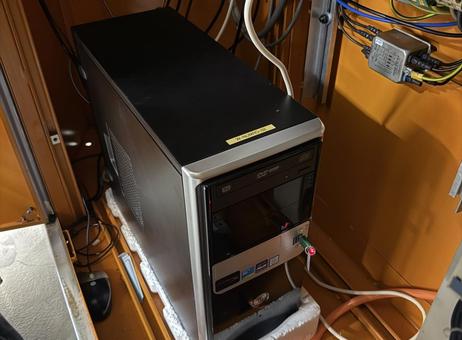

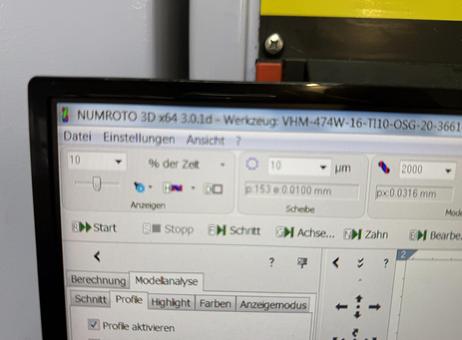

PC system

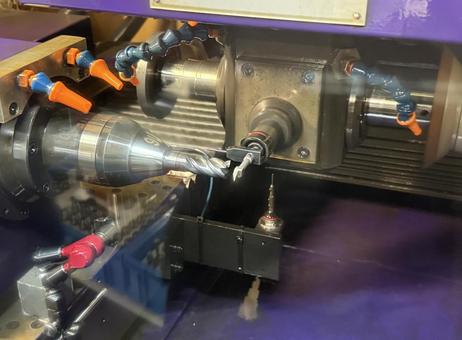

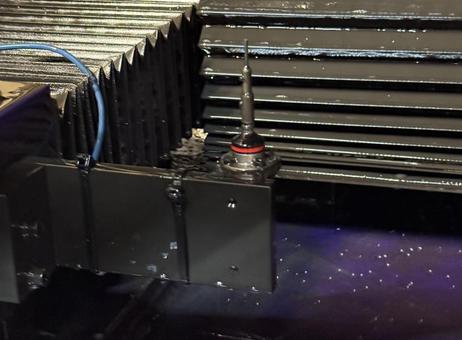

3D measuring feeler gauge

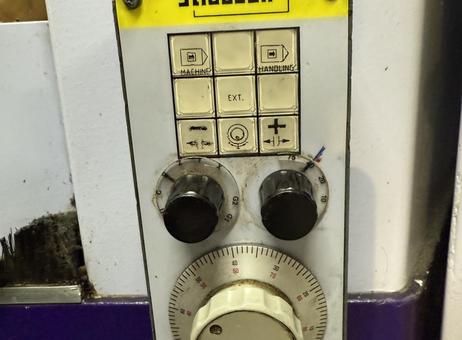

Handwheel electroinic

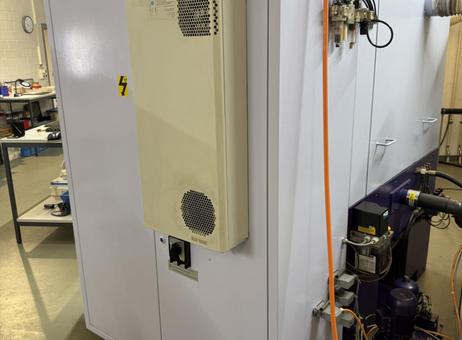

Switch cabinet Air conditioner
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 253 |
| Last activity | Oct. 23, 2026 |
