Contact us to receive an offer.
| Manufacturer | STEINEL |
|---|---|
| Model | BZ 24 FFZ |
| Year | 1990 |
| Location | Germany
|
The STEINEL BZ 24 FFZ is a large horizontal machining center manufactured in 1990. It features a robust construction with overall transport dimensions of approximately 9000 mm in length, 3100 mm in width, and 3200 mm in height, and a total weight of 13,500 kg. The machine is equipped with a CNC control system, specifically the SIEMENS Sinumerik 850 M with a TFT monitor, and includes an interface for data transfer.

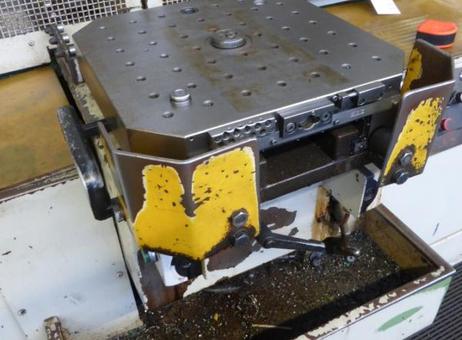

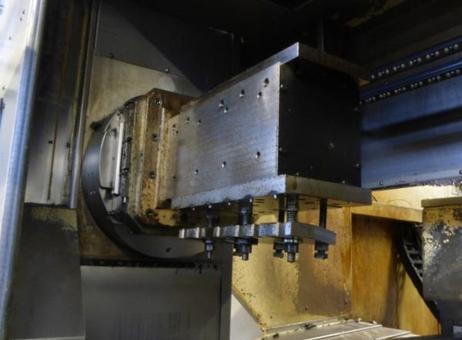

The machining center offers travel ranges of 630 mm along the X-axis, 500 mm along the Y-axis, and 500 mm along the Z-axis. The table size per pallet measures 400 x 400 mm, with a pallet changer accommodating 4 pallets and pallet rotation around the B-axis. The spindle ram serves as the Z-axis and includes transverse movement functioning as the Y-axis. The maximum spindle speed is 7100 rpm, utilizing an ISO 40 tool holder.

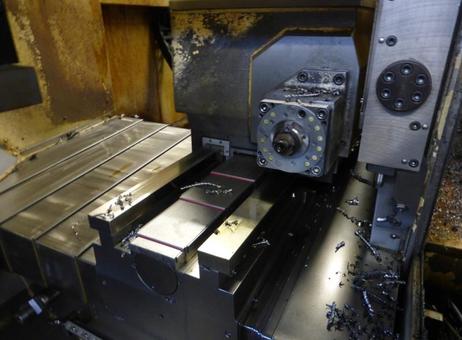

Tool management is facilitated by a tool changer with 60 tool positions equipped with a double arm gripper. The machine includes coolant spray nozzles located on the spindle ram and within the work area, supported by a coolant system with a chip conveyor positioned under the work area.

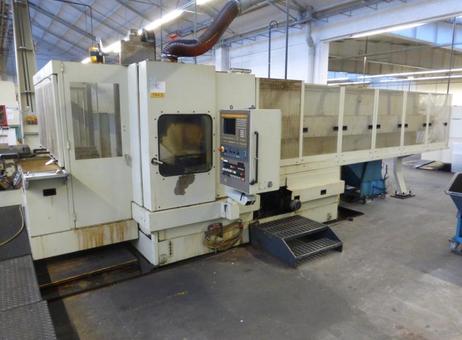

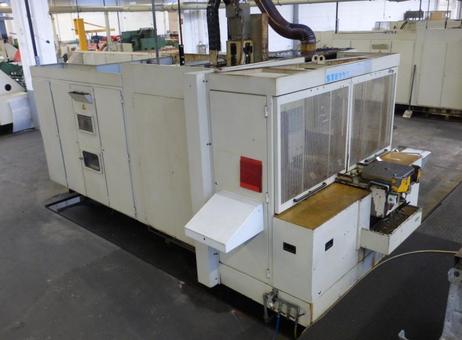

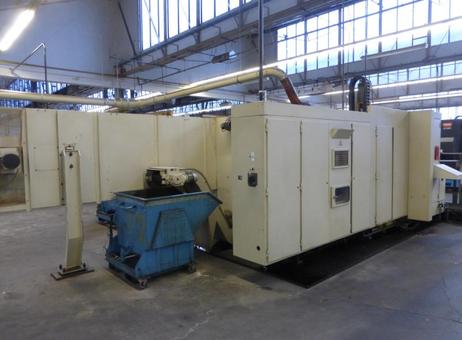

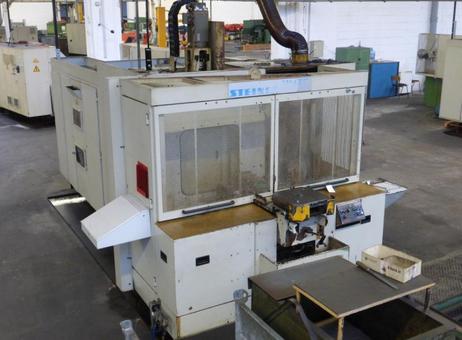

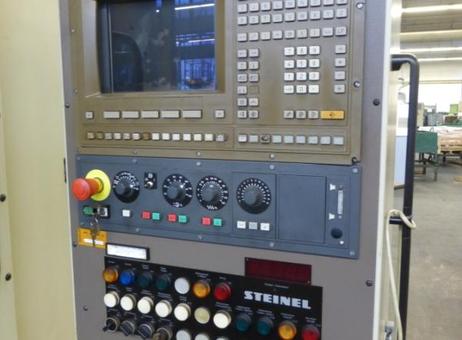

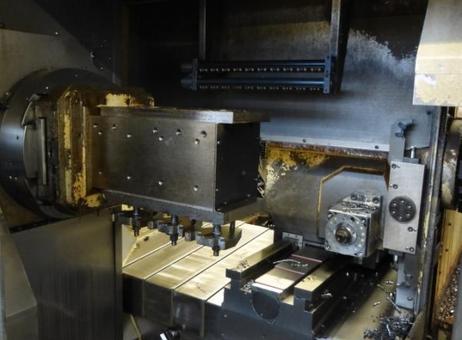

From visual inspection, the machine has an enclosed work area and a control panel featuring a screen with multiple buttons and knobs on the front side. Operator access is provided via a metal staircase and platform. A ventilation duct is connected on top of the machine, and large protective mesh panels are present on the rear side. A metal chute or bin for chip removal is located under the mesh panels. Some surface rust and wear marks are visible on the lower parts of the enclosure and on top horizontal surfaces.
Please note, the machine is offered as-is and is not currently ready for operation, as the control system does not start. Otherwise, it appears to be in good condition considering its age.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: STEINEL
Model: BZ 24 FFZ
Year of Manufacture: 1990
Technical Condition: As-is, where-is
Travel X: 630 mm
Travel Y: 500 mm
Travel Z: 500 mm

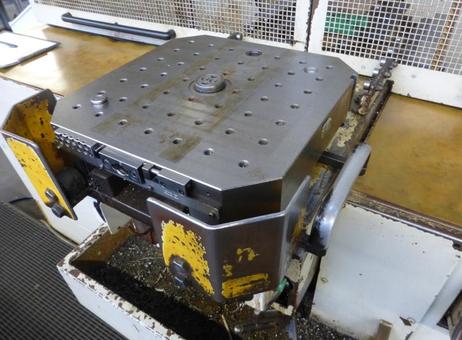

Table Size per Pallet: 400 x 400 mm
Pallet Rotation: B-axis
Max Spindle Speed: 7100 rpm
Tool Holder: ISO 40
Mains Connection: 380 Volt, 50 Hz, 80 Amp
Tool Changer: 60 tool positions with double arm gripper
Pallet Changer: 4 pallets
Horizontal Pallet Position for Machining: X-axis movement
Pallet Rotation: B-axis
Spindle Ram as Z-axis
Spindle Ram with Transverse Movement as Y-axis
Coolant Spray Nozzles: On spindle ram and in work area
Coolant System: With chip conveyor under the work area
CNC Control: SIEMENS Sinumerik 850 M with TFT monitor
Interface for Data Transfer: Yes
Transport Dimensions (Machine with Tool Magazine): L x W x H 9000 x 3000 x 3000 mm
Chip Conveyor Dimensions: L x W x H 4700 x 1000 x 1450 mm
Space Required: L x W x H 9000 x 3100 x 3200 mm
Weight: 13.5 ton
Note: Machine is not ready for operation; control does not start. Otherwise in good condition.
