Price on request
Make an offer| Metal length | 3000 mm |
| Metal width | 2000 mm |
| Max steel thickness | 180 mm |
| Source model | |
| CNC | No |
| Type of CNC | |
| Power | 37000 W |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 25/02/2026 |
The Stein-Moser WaterJet STM MasterCut is a high-performance water jet cutting machine manufactured in 2010 by the Austrian company Stein-Moser GmbH. It features a robust machine structure made of high-quality welded steel, providing a cutting area measuring 3000 mm in length and 2000 mm in width, which ensures excellent stability and minimizes vibrations during operation. This model is designed to cut materials with a maximum thickness of up to 180 mm.

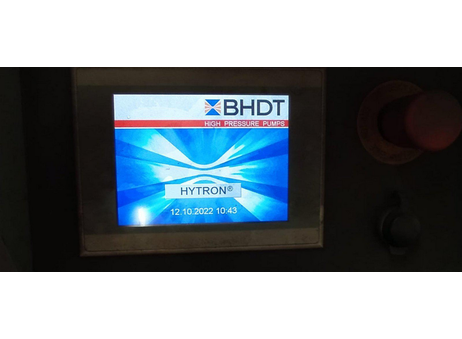

Powered by a 37 kW BHDT HYTRON high-pressure pump, the system delivers a maximum working pressure of 400 MPa, enabling precise and efficient cutting. The machine is equipped with brushless servo motors to drive the cutting head, which is mounted on a gantry system allowing accurate positioning.
Although the original description mentions a CNC controller for programming operating modes, the known fields specify that this particular unit does not have CNC capabilities. The positioning speed reaches up to 15 meters per minute, with positioning accuracy of ±0.05 mm and repeatability of ±0.03 mm along the X and Y axes. The Z-axis clearance is 200 mm, allowing for versatility in cutting various material thicknesses.
The abrasive container has a capacity of 320 kg, supporting extended cutting operations without frequent refills. The machine operates on a 3-phase 400V, 50 Hz power supply.

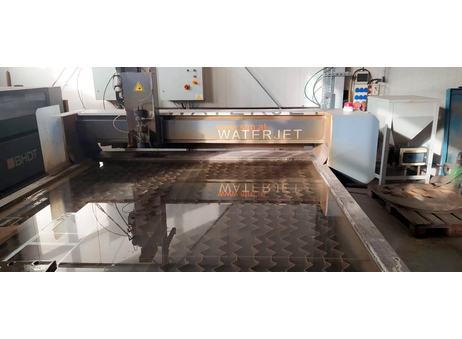

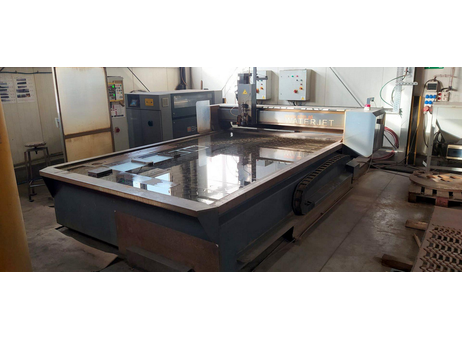

From visual inspection, the machine appears clean and in good physical condition with no visible damage. The cutting head is mounted on a gantry system over a flat cutting bed, consistent with industrial water jet cutting machines. The machine bears the marking "www.stm.at WATERJET," confirming its brand identity.
This WaterJet STM MasterCut is suitable for industrial applications requiring precise cutting of thick materials, offering a stable and reliable platform for water jet cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
WaterJet STM MasterCut built by the renowned Austrian company Stein-Moser GmbH. in 2010, it is used for precise water jet cutting of details with a maximum thickness of 180 mm. Details are machined on a machine structure made of high-quality welded steel, 3000 mm long and 2000 mm wide, which guarantees high stability and reduction of vibrations generated during cutting.
The STM WS3020 Wanne 4 2 jet cutting system is supplied with high-pressure water through a 37 kW BHDT HYTRON high-pressure unit. A modern CNC controller installed in the operator's panel is used to program the operating modes.
Technical data of the STM MasterCut water cutting machine
- working area (L x W): 3000 x 2000 mm
- maximum cutting thickness: 180 mm
- positioning speed: 15 m/min
- positioning accuracy in the X/Y axes: ± 0.05 mm
- positioning repeatability in the X/Y axes: ± 0.03 mm
- clearance of the Z axis: 200 mm
- maximum working pressure of the pump: 400 MPa
- power of the high-pressure pump: 37 kW
- capacity of the abrasive container: 320 kg
- power supply: 3x 400V; 50 Hz
Equipment of the STM MasterCut water jet cutter
- control panel with CNC controller
- high pressure pump: BHDT HYTRON
- brushless servo motors
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 378 |
| Last activity | March 10, 2026 |
WaterJet STM MasterCut built by the renowned Austrian company Stein-Moser GmbH. in 2010, it is used for precise water jet cutting of details with a maximum thickness of 180 mm. Details are machined on a machine structure made of high-quality welded steel, 3000 mm long and 2000 mm wide, which guarantees high stability and reduction of vibrations generated during cutting.
The STM WS3020 Wanne 4 2 jet cutting system is supplied with high-pressure water through a 37 kW BHDT HYTRON high-pressure unit. A modern CNC controller installed in the operator's panel is used to program the operating modes.
Technical data of the STM MasterCut water cutting machine
- working area (L x W): 3000 x 2000 mm
- maximum cutting thickness: 180 mm
- positioning speed: 15 m/min
- positioning accuracy in the X/Y axes: ± 0.05 mm
- positioning repeatability in the X/Y axes: ± 0.03 mm
- clearance of the Z axis: 200 mm
- maximum working pressure of the pump: 400 MPa
- power of the high-pressure pump: 37 kW
- capacity of the abrasive container: 320 kg
- power supply: 3x 400V; 50 Hz
Equipment of the STM MasterCut water jet cutter
- control panel with CNC controller
- high pressure pump: BHDT HYTRON
- brushless servo motors
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
