| Manufacturer | STARRAG HECKERT |
|---|---|
| Model | ZS 500-130 |
| Year | 1999 |
| Location | Italy
|
The STARRAG HECKERT ZS 500-130 is a 5-axis continuous machining center manufactured in 1999, designed for precision metalworking applications. It features a robust construction with overall dimensions of 5000 mm in length, 8000 mm in width, and 4000 mm in height, and a total weight of 18,000 kg. The machine offers substantial axis travels with X-axis at 800 mm, Y-axis at 750 mm, and Z-axis at 620 mm, enabling versatile machining capabilities.

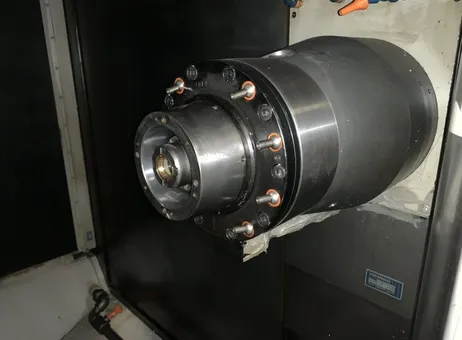

Equipped with a powerful 40 kW spindle motor, the machine can reach a maximum spindle speed of 12,000 rpm. The spindle uses an HSK-A 100 interface and delivers a torque of 250 Nm. The rapid feed rates for the X, Y, and Z axes are 40 meters per minute each, allowing efficient material removal and reduced cycle times.

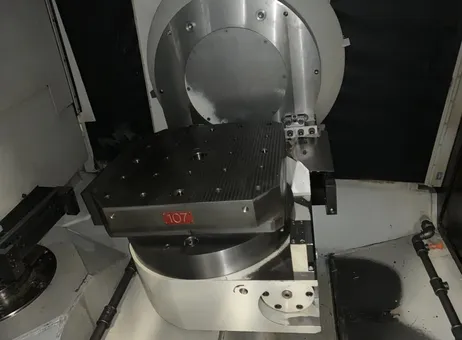

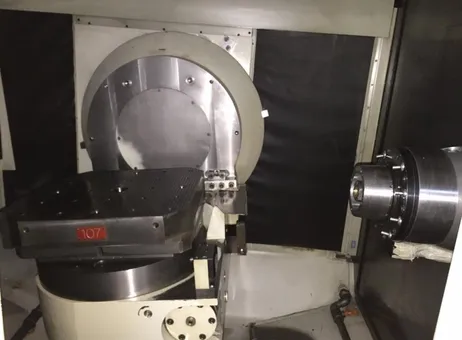

The ZS 500-130 includes a continuous pallet system with four pallets, each measuring 500 x 500 mm, supporting a maximum workpiece weight of 200 kg. It is fitted with an 89-position chain-type tool magazine, facilitating automatic tool changes to enhance machining flexibility and reduce downtime.
Control of the machine is managed via a Siemens 840D control unit, known for its reliability and user-friendly interface. The machine also includes a swarf conveyor as an accessory to aid in chip removal and maintain a clean working environment.

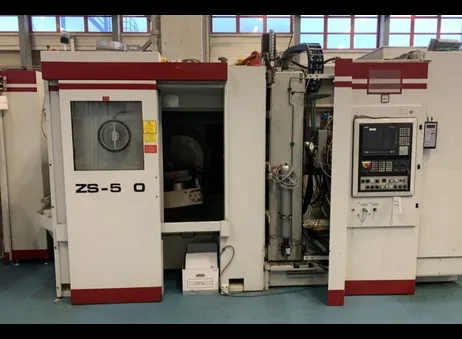

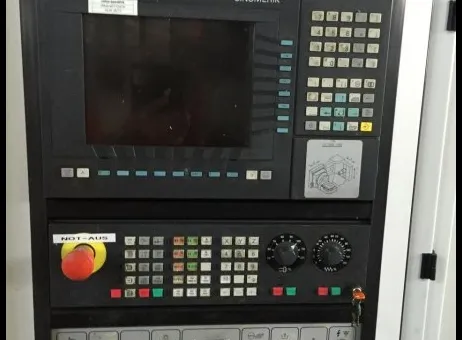

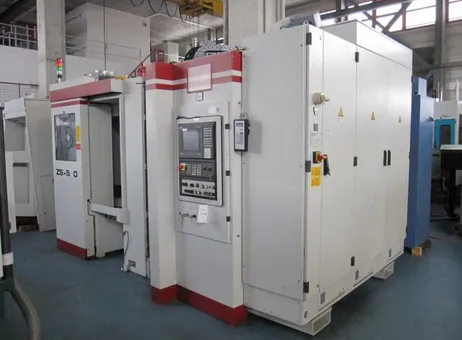

From the images, the machine appears clean and well-maintained with no visible damage. It features a white and red exterior with a viewing window on the left door to monitor machining operations. The Siemens Sinumerik control panel is intact and equipped with a screen, keypad, emergency stop button, and various control knobs and switches.
This machining center is suitable for complex and precise metalworking tasks, offering advanced 5-axis machining capabilities combined with a sturdy build and comprehensive tooling options.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
X-axis Travel 800 Mm
Y-axis Travel 750 Mm
Z-axis Travel 620 Mm
Rapid Feeds X-y-z 40 - 40 - 40 M/min
Spindle Hsk-a 100 ; 250 Nm; 40 Kw; 12000 Rpm
Pallet 500x500 Mm; Continuous ; N.4
A-axis 35/-110 °
Max Admitted Load 200 Kg
Tool Magazine 89 Pos; Chain-type
Control Unit Siemens 840 D
Weight 18000 Kg
Overall Dimensions 5000 X 8000 X 4000 Mm
Accessories Swarf Conveyor
this extra information is standard for this model. Please always double-check the details during a visit
The STARRAG HECKERT ZS 500-130 5-Axis Machining Center, unveiled in 1999, stands as a testament to precision and versatility in metalworking operations. Renowned for its advanced features and robust construction, this model has been widely recognized in manufacturing industries worldwide.
Equipped with a sophisticated 5-axis milling capability and a high-speed spindle, the ZS 500-130 offers exceptional machining capabilities with superior accuracy and efficiency. Its multi-axis design enables complex machining of various workpieces from multiple angles, providing unparalleled flexibility and precision.
The machine's intuitive interface empowers operators to program intricate machining operations effortlessly, optimizing productivity and minimizing setup time. Additionally, advanced features such as automatic tool change and toolpath optimization further enhance machining efficiency and versatility.
Constructed with premium-grade materials and components, the ZS 500-130 exhibits outstanding durability and reliability, ensuring seamless operation even in demanding production environments. Its sturdy frame and precise machining tolerances guarantee stability and consistency throughout its operational lifespan.
Moreover, the ZS 500-130's 5-axis capability allows for the machining of complex geometries and intricate features with ease, making it suitable for a wide range of applications across various industries.
In summary, the STARRAG HECKERT ZS 500-130 5-Axis Machining Center represents a pinnacle of machining technology, offering unmatched precision, efficiency, and versatility for complex metalworking operations.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
