| Manufacturer | STAR |
|---|---|
| Model | SR 20 R III |
| Year | 2011 |
| Location | Italy
|
The STAR SR 20 R III is a Swiss-type sliding headstock lathe designed for precision machining of small diameter parts, with a maximum turning diameter of 20 mm and a maximum workpiece length of 80 mm. Manufactured in 2011, this model measures 2200 mm in length, 1200 mm in width, and 1700 mm in height, with a total weight of approximately 2200 kg.

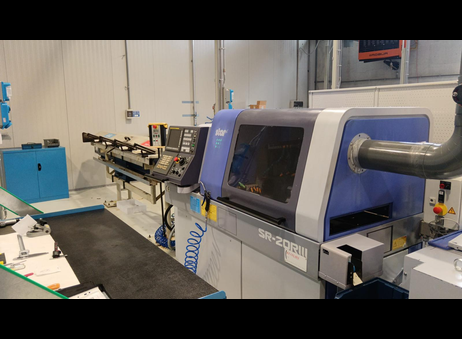

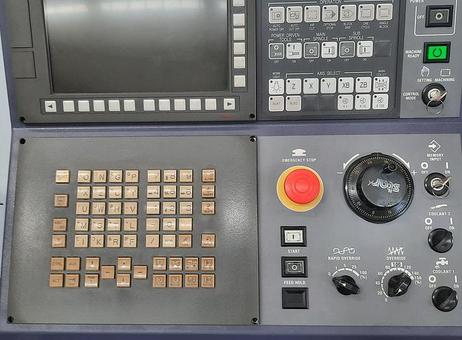

This lathe is equipped with a FANUC Series 300iS-MODEL A control panel featuring a display screen, numerous operational buttons, and an easily accessible red emergency stop button, facilitating efficient and safe operation. The machine includes a bar feeder attached to the rear, enabling automatic feeding of bars for continuous production.

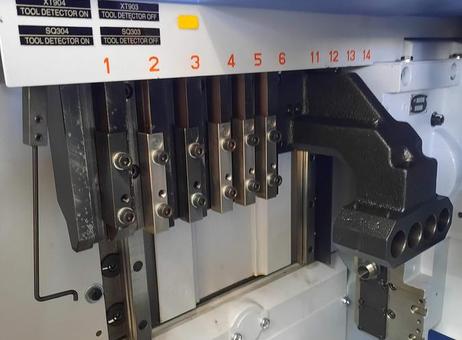

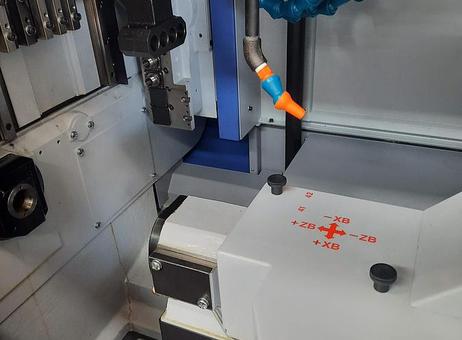

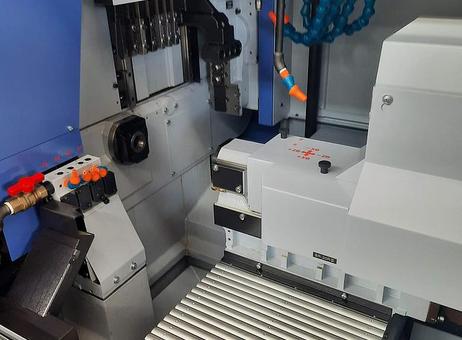

The machining area is protected by a transparent cover and contains multiple tool holders, including six fixed toolholders and five motorized rotating tools, allowing versatile machining capabilities. The spindle offers speeds up to 8,000 rpm powered by a 1.2 kW motor. Rapid axis feeds reach up to 35 m/min, and the C-axis rapid feed can achieve up to 198,000 degrees per minute, supporting high-speed and precise machining cycles.

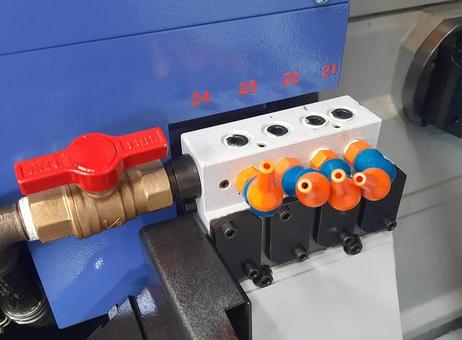

Coolant delivery is managed through several blue and orange flexible hoses directed at the machining zone, with coolant valves featuring red handles for easy adjustment. The machine includes a chip removal system with a slatted metal floor to maintain cleanliness during operation.
The SR 20 R III has a total installed power capacity of 10 kVA and a coolant tank capacity of 170 liters with standard coolant level control. Overall, this lathe is a robust and well-equipped solution for high-precision turning tasks, presented in clean and well-maintained condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The used and overhauled STAR SR 20 R III sliding headstock lathe offers precision and reliability for complex machining operations up to a maximum turning diameter of 20 mm. Equipped with a FANUC FS 300 IS steering unit and an LSN Mini Sprint S2 bar loader, this machine is ideal for efficient turning operations. With a headstock travel capacity of 205 mm, the lathe allows rapid axis feeds of up to 35 m/min and C-axis feeds of up to 198,000 degrees/min. Tool housings include 6 fixed toolholders for turning and 4 for drilling/tapping, allowing versatility in machining. The motorized unit supports a maximum speed of 8,000 rpm with a power output of 1.2 kW. The lathe is equipped with useful accessories, such as a workpiece unloading mat and a chip conveyor. With a total installed power of 10 kVA, 170-liter tank capacity and standard coolant level control, the SR 20 R III is a solid investment for your production needs. Maximum overall dimensions are 2.20 x 1.20 m with a height of 1.70 m and a total weight of 2200 kg.
Max Turning Diameter: mm. 20
Max Moving Headstock Stroke Single Clamping: mm. 205
Fixed Tool: M 8 x 1.25
Rotating Tool On Comb Slide: M 6×1
End Mill On Comb Slide: Ø 10
Spindle Hole Diameter: Ø 20
Spindle RPM: rpm 500/8.000
Available Power: Kw 2.2 /1.5
Compass: Neukomm art.22.001
Collet: F 25- art. 64
Max. gripping diameter and passage: Ø 20
Max Workpiece Length With Front Ejection: mm . 80
Rapid Axis Feeds: m/min. 35
Rapid Feeds C Axis: Degrees/min. 198.000°
Maximum Working Feed Linear Axes: m/min. 10
Maximum Working Feed C Axis: Degrees/min. 10000°
Fixed Turning Tool Seats Std: no. 6
Tool Shank Dimensions Std: mm. 12
Radial Motorized Toolholders: 5
Max Motorized Unit Speed: 8,000 rpm
Max Available Power: Kw 1,2
Fixed Tapping Drilling Tool Seats: ['no. 2', 'no. 4']
Max Clamping Diameter With Collet Er: Ø 10
Max Drilling Capacity Steel C 45: Ø 8
Max Tapping Capacity Steel C 45: M 8 x 1.25
Max. clamping diameter with collet Er 16: Ø 10
Max Drilling Capacity: Ø 8
Max Hole Depth: 100 mm
Tank Capacity: l 170
Coolant Level Control: standard
Max Height: m 1,70
Maximum overall dimensions on the floor: 2.20 x 1.20 m
Machine Weight: 2200 kg
Total Installed Power: KvA 10
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
