Contact us to receive an offer.
| Manufacturer | Stankoimport |
|---|---|
| Model | Typ:2A62204-I-10 |
| Year | 1989 |
| Location | Hungary
|

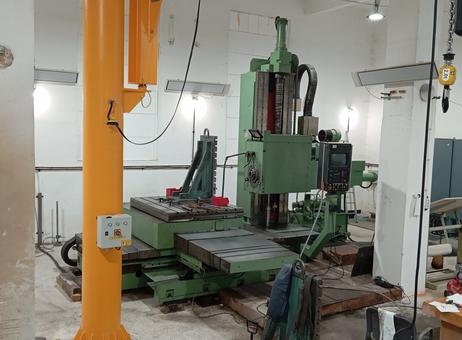

This is a Stankoimport CNC bench drilling machine, model Typ: 2A62204-I-10, manufactured in 1989. It features a CNC control system by Heidenhain, type TC355, known for precision in machining operations. The machine is designed with a vertical spindle assembly and a horizontal worktable, suitable for various complex machining tasks.
The spindle has a diameter of 125 mm and can rotate at speeds ranging from 6 to 2000 rpm, allowing for versatile drilling and milling operations. It accommodates a maximum workpiece weight of up to 5000 kg, making it suitable for heavy-duty industrial applications. The machine's travels include 710 mm on the Z-axis, 1400 mm on the Y-axis, 1600 mm on the W-axis, and 2000 mm on the X-axis, providing substantial working range.

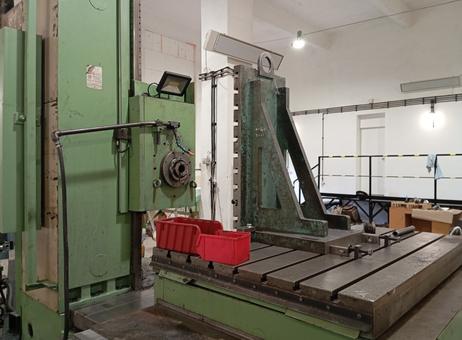

The worktable measures approximately 1250 x 1600 mm and is equipped with 22 T-slots for flexible and secure fixturing of workpieces. An additional angular milling head is included, expanding the machine's machining capabilities. The machine dimensions are 4900 x 6100 x 4300 mm, with a total weight of 23,000 kg and a connected electrical load of 160 Amp.

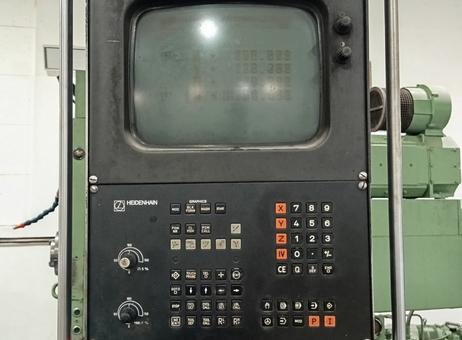

The machine is fitted with an electrically driven rotary table, enhancing its multi-axis machining potential. The control panel, mounted on an arm to the right side of the machine, features multiple buttons, switches, a numerical keypad, function keys for axis control (X, Y, Z, IV), and a CRT display screen labeled HEIDENHAIN. An emergency stop button is also present for safety.

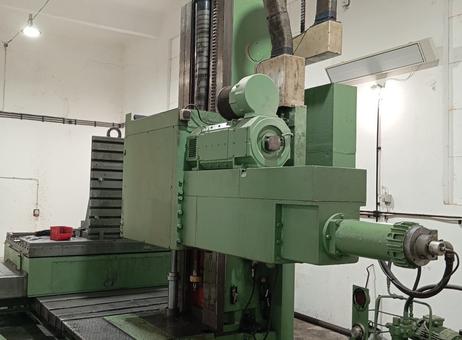

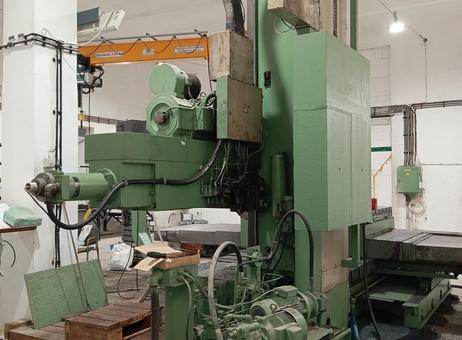

The machine appears clean and well maintained within an indoor workshop environment. It shows some signs of wear on surfaces and the control panel, including paint peeling, but no visible damage or rust. The spindle housing and vertical guide rails are intact. Hydraulic and motor components are mounted at the base, with protective covers on cables. Accessories such as wooden pallets and workshop equipment are present nearby.
This robust machining center is suitable for demanding industrial machining tasks requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Description of the
CNC bench drilling machine
Make: STANKOIMPORT, type: 2A62204-I-10, year of manufacture: 1989, serial number: 7801, with CNC control, Heidenhain, type: TC355, spindle diameter: 125mm, max. workpiece weight: 5000kg, travels: Z-axis: 710mm, Y-axis: 1400mm, W-axis: 1600mm, X-axis: 2000mm, spindle rotation speed: from 6 to 2000 rpm. m
electr. rotary table, size: approx. 1250x1600mm, with 22 T-slots, with an additional angular milling head, machine dimensions: 4900x6100x4300mm, weight: 23,000 kg, connected load: 160Amp.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this Stankoimport Typ:2A62204-I-10?
This Stankoimport Typ:2A62204-I-10 is an automatic CNC turret drilling machine.
When was this Stankoimport Typ:2A62204-I-10 manufactured?
This Stankoimport Typ:2A62204-I-10 was manufactured in the year 1989.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery manufacturer |
| Active since | 2025 |
| Offers online | 11 |
| Last activity | Sept. 30, 2026 |
Description of the
CNC bench drilling machine
Make: STANKOIMPORT, type: 2A62204-I-10, year of manufacture: 1989, serial number: 7801, with CNC control, Heidenhain, type: TC355, spindle diameter: 125mm, max. workpiece weight: 5000kg, travels: Z-axis: 710mm, Y-axis: 1400mm, W-axis: 1600mm, X-axis: 2000mm, spindle rotation speed: from 6 to 2000 rpm. m
electr. rotary table, size: approx. 1250x1600mm, with 22 T-slots, with an additional angular milling head, machine dimensions: 4900x6100x4300mm, weight: 23,000 kg, connected load: 160Amp.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this Stankoimport Typ:2A62204-I-10?
This Stankoimport Typ:2A62204-I-10 is an automatic CNC turret drilling machine.
When was this Stankoimport Typ:2A62204-I-10 manufactured?
This Stankoimport Typ:2A62204-I-10 was manufactured in the year 1989.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This is a Stankoimport CNC bench drilling machine, model Typ: 2A62204-I-10, manufactured in 1989. It features a CNC control system by Heidenhain, type TC355, known for precision in machining operations. The machine is designed with a vertical spindle assembly and a horizontal worktable, suitable for various complex machining tasks.
The spindle has a diameter of 125 mm and can rotate at speeds ranging from 6 to 2000 rpm, allowing for versatile drilling and milling operations. It accommodates a maximum workpiece weight of up to 5000 kg, making it suitable for heavy-duty industrial applications. The machine's travels include 710 mm on the Z-axis, 1400 mm on the Y-axis, 1600 mm on the W-axis, and 2000 mm on the X-axis, providing substantial working range.
The worktable measures approximately 1250 x 1600 mm and is equipped with 22 T-slots for flexible and secure fixturing of workpieces. An additional angular milling head is included, expanding the machine's machining capabilities. The machine dimensions are 4900 x 6100 x 4300 mm, with a total weight of 23,000 kg and a connected electrical load of 160 Amp.
The machine is fitted with an electrically driven rotary table, enhancing its multi-axis machining potential. The control panel, mounted on an arm to the right side of the machine, features multiple buttons, switches, a numerical keypad, function keys for axis control (X, Y, Z, IV), and a CRT display screen labeled HEIDENHAIN. An emergency stop button is also present for safety.
The machine appears clean and well maintained within an indoor workshop environment. It shows some signs of wear on surfaces and the control panel, including paint peeling, but no visible damage or rust. The spindle housing and vertical guide rails are intact. Hydraulic and motor components are mounted at the base, with protective covers on cables. Accessories such as wooden pallets and workshop equipment are present nearby.
This robust machining center is suitable for demanding industrial machining tasks requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery manufacturer |
| Active since | 2025 |
| Offers online | 11 |
| Last activity | Sept. 30, 2026 |
