Contact us to receive an offer.
| Manufacturer | Stama |
|---|---|
| Model | MC 530 SM |
| Year | 1997 |
| Location | Germany
|
This listing features a Stama MC 530 SM vertical machining center manufactured in 1997, designed for precision machining tasks. The machine accommodates bar diameters and profile sizes up to 60 mm with a maximum bar length of 800 mm. It offers a longitudinal travel range of 800 mm along the X-axis, 400 mm transverse travel on the Y-axis, and a vertical milling head travel of 350 mm on the Z-axis. The workpiece axis supports full 360° turning and 120° swiveling, with approximately 300 mm daylight beneath the vertical spindle.
The spindle is equipped with an HSK 63 hollow shank taper and provides an infinitely adjustable speed range from 36 to 10,500 rpm. The spindle motor delivers 14 kW of power. Feed rates for all three axes range from 1 to 10,000 mm/min, with rapid traverse speeds up to 40,000 mm/min. The total electrical load is approximately 40 kW, operating on 380 V and 50 Hz.
The machine includes a CNC continuous path control system by FANUC Type 16 MB, supporting all five axes with features such as monitor display, direct input, sub-programs, tool corrections, tool monitoring, parallel programming, and 3-D and helicoid interpolation. It also has an IRCO bar feeding magazine on the left side, capable of holding up to 10 bars of 60 mm diameter.
Additional equipment includes a CNC turning-swiveling system with a collet clamping device for bar material handling, coupled with a hydraulic tailstock for center support. An automatic tool magazine with 42 tool stations accommodates tools up to 100 mm diameter and 200 mm length, including internal coolant supply and a tool database. Tool breakage is monitored via a laser-light barrier. A pneumatic telescopic catcher is installed between the workpiece head and tailstock for finished parts handling, along with a conveyor belt for extraction of parts without opening the working area. The entire machining area is fully enclosed with a windowed door, and a chip conveyor is installed. However, the machine does not include a coolant facility or central cooling supply.

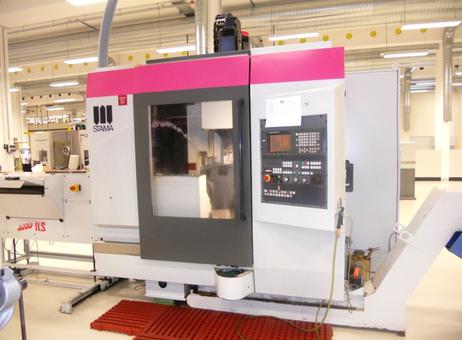

The machine appears clean and well-maintained with no visible damage. The control panel is mounted on the right side, and a red safety mat is placed in front of the machine. Several polished cylindrical metal parts are shown alongside the machine, indicating its capability to produce high-quality finished components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Bar-Ø/profile size x maximum length 60 x 800 mm
Longitudinal travelling range X-axis 800 mm
Transverse travelling range Y-axis 400 mm
Vertical range of milling heads Z-axis 350 mm
work piece axis turning/swiveling 360°/120 °
Daylight underneath vertical spindle approx. 300 mm
Spindle taper HSK 63 hollow shank tapers
Speed in rpm of spindle infinitely adjustable 36.-.10.500 rpm
Feed of all 3 axes 1 - 10.000 mm/min
Rapid feed 40.000 mm/min
Spindle drive 14 to 32 kW
Total electrical load 40 kW - 380 V - 50 Hz
Weight approx. 8 to
Accessories/Special
Features:

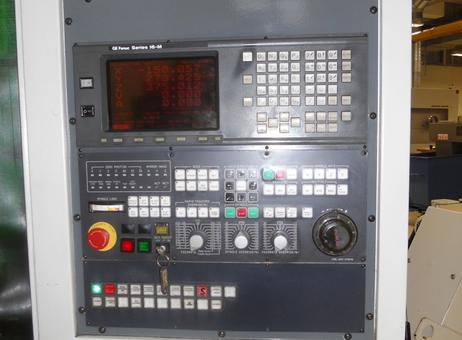

· CNC-Continuous path control FANUC Type 16 MB, for all 5 axes including monitor display and direct in-put, and various sub-programs, tool corrections, tool monitoring, parallel programming, 3-D and helicoid interpolation, and various other equipment
· IRCO Bar feeding magazine on the left side of machine, up to 10 bars of Ø 60 mm,

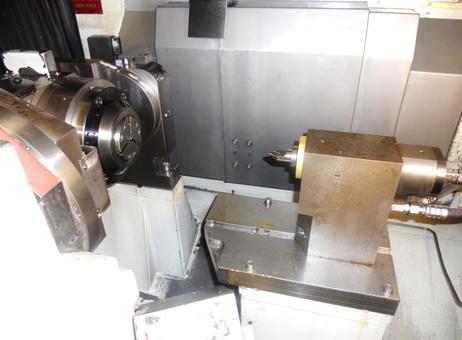

· mounted CNC-Turning-Swivelling system including collet clamping device for take up of bar materials in connection with hydr. tailstock as centre support,
· automatic tool magazine including 42 tool stations ,up to Ø 100 x 200 long tools also with internal coolant supply, including own tool data base, chip to chip time 4 sec. Control of tool breakage via laser-light barrier, etc.
· pneumatic telescopic catcher for finished parts between workpiece head and tailstock;
· Conveyor belt for extraction of parts without opening the working area
· Complete enclosure of work area, including chip conveyor, however without coolant facility (central cooling supply) Threading without compensation chuck possible, no tool holders available
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
