| Manufacturer | SPXFLOW TECHNOLOGIE |
|---|---|
| Model | Normados N-D 41 |
| Year | 1979 |
| Location | Germany
|
The SPXFLOW TECHNOLOGIE Normados N-D 41 is a piston dosing pump designed for industrial applications, particularly suitable for food processing tasks. Manufactured in 1979, this pump features a stainless steel pump head configured as a single-acting immersion piston with a diameter of 82 mm and an adjustable stroke length of up to 60 mm. It is equipped with both suction and pressure valves to ensure efficient and precise dosing.
The pump is driven by an electric motor operating on 220/380 V, with a power rating of 2.2 kW and a speed of 2820 rpm, enabling it to achieve 100 strokes per minute. Additionally, the stroke length can be electrically adjusted from 0 to 60 mm using a D-brake motor rated at 0.25 kW and 1350 rpm. The pump housing is double-walled, allowing it to be heated with hot water or low-pressure steam, which is beneficial for maintaining product temperature during processing.
The unit features flange connections on both the pressure and suction sides, sized NW 40 and LD 10 respectively, facilitating integration into existing piping systems. The overall dimensions of the pump are 1000 mm in length, 600 mm in width, and 700 mm in height.

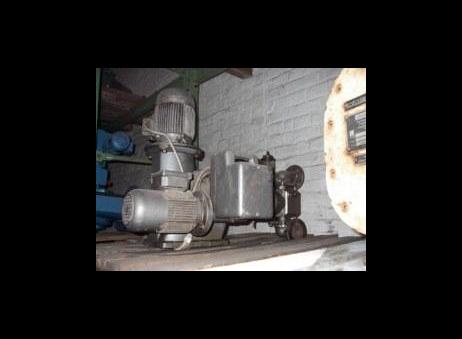

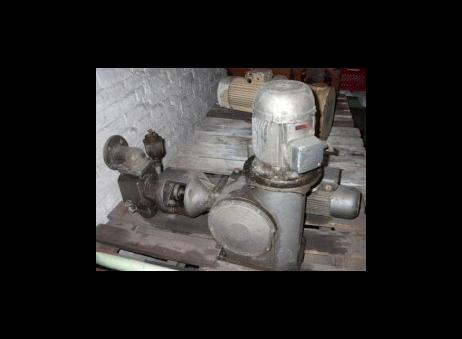

Visual inspection reveals the presence of two electric motors mounted on a metal base, one positioned horizontally and the other vertically, consistent with the described drive and adjustment motors. The pump housing and metal components show some surface rust, oxidation, and dust accumulation, indicating wear and the age of the equipment, but no severe damage is visible. The electric motor includes cooling fins and an electrical junction box mounted atop the pump assembly.
This piston dosing pump offers a capacity range from 0 up to 2000 kg/h, making it suitable for precise dosing requirements in various industrial processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Piston dosing pump
Capacity up to 2000 kg/h, stainless steel pump head as a single-acting immersion piston, 82 mm (max. stroke length 60 mm), equipped with suction + pressure valve, driven by D-motor 220/380 V, 2.2 kW, 2820 rpm, 50 Hz, thus achieving 100 strokes/min., stroke length adjustable from 0-60 mm electrically by D-brake motor 0.25 kW, 1350 rpm, pump housing double-walled, can be heated with hot water or LD steam, flange connection for pressure + suction side NW 40/LD 10; space requirement: 1000 x 600 x 700 mm high
Capacity: from 0 to 2000 kg/h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 593 |
| Last activity | Oct. 20, 2026 |
Piston dosing pump
Capacity up to 2000 kg/h, stainless steel pump head as a single-acting immersion piston, 82 mm (max. stroke length 60 mm), equipped with suction + pressure valve, driven by D-motor 220/380 V, 2.2 kW, 2820 rpm, 50 Hz, thus achieving 100 strokes/min., stroke length adjustable from 0-60 mm electrically by D-brake motor 0.25 kW, 1350 rpm, pump housing double-walled, can be heated with hot water or LD steam, flange connection for pressure + suction side NW 40/LD 10; space requirement: 1000 x 600 x 700 mm high
Capacity: from 0 to 2000 kg/h
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The SPXFLOW TECHNOLOGIE Normados N-D 41 is a piston dosing pump designed for industrial applications, particularly suitable for food processing tasks. Manufactured in 1979, this pump features a stainless steel pump head configured as a single-acting immersion piston with a diameter of 82 mm and an adjustable stroke length of up to 60 mm. It is equipped with both suction and pressure valves to ensure efficient and precise dosing.
The pump is driven by an electric motor operating on 220/380 V, with a power rating of 2.2 kW and a speed of 2820 rpm, enabling it to achieve 100 strokes per minute. Additionally, the stroke length can be electrically adjusted from 0 to 60 mm using a D-brake motor rated at 0.25 kW and 1350 rpm. The pump housing is double-walled, allowing it to be heated with hot water or low-pressure steam, which is beneficial for maintaining product temperature during processing.
The unit features flange connections on both the pressure and suction sides, sized NW 40 and LD 10 respectively, facilitating integration into existing piping systems. The overall dimensions of the pump are 1000 mm in length, 600 mm in width, and 700 mm in height.
Visual inspection reveals the presence of two electric motors mounted on a metal base, one positioned horizontally and the other vertically, consistent with the described drive and adjustment motors. The pump housing and metal components show some surface rust, oxidation, and dust accumulation, indicating wear and the age of the equipment, but no severe damage is visible. The electric motor includes cooling fins and an electrical junction box mounted atop the pump assembly.
This piston dosing pump offers a capacity range from 0 up to 2000 kg/h, making it suitable for precise dosing requirements in various industrial processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
