Price on request
Make an offer| ------------------- | |
| Length x width x height | 1000.0 × 600.0 × 700.0 |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | SPXFLOW TECHNOLOGIE Normados N-D 41 |
| Last availability date | 05/05/2026 |
This SPXFLOW TECHNOLOGIE Normados N-D 41 piston dosing pump, manufactured in 1979, is designed for precise dosing applications with a capacity of up to 2000 kg/h. The pump features a stainless steel pump head configured as a single-acting immersion piston with a screw diameter of 82 mm and a maximum adjustable stroke length of 60 mm. Stroke length adjustment is electrically controlled via a D-brake motor, allowing for fine-tuning between 0 and 60 mm. The pump is equipped with both suction and pressure valves to ensure reliable operation.
The drive system includes a D-motor rated at 2.2 kW operating at 220/380 V, 2820 rpm, and 50 Hz, capable of achieving 100 strokes per minute. The pump housing is double-walled, allowing for heating with hot water or low-pressure steam to maintain optimal fluid temperature during operation. Flange connections are provided for both the pressure and suction sides, sized NW 40/ND 10.

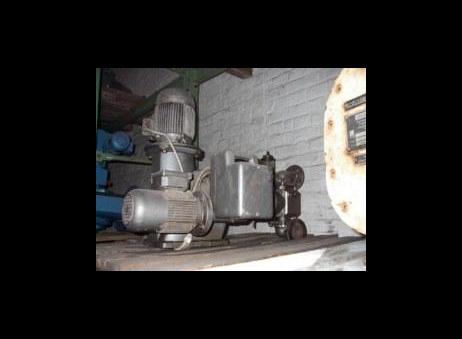

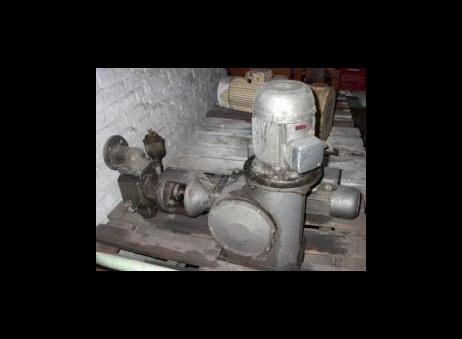

The overall footprint of the unit measures approximately 1000 mm in length, 600 mm in width, and 700 mm in height. The pump assembly is mounted on a metal base plate for stability. Visual inspection reveals the presence of an electric motor mounted horizontally with a cooling fan housing on top, as well as an attached hydraulic pump or motor unit. The machine shows signs of wear, including surface rust and dirt on metal parts, which should be taken into consideration during evaluation.
This dosing pump is suitable for applications requiring controlled and adjustable fluid dosing with the capability to handle heating requirements, making it a versatile component for various industrial processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Piston Dosing Pump
Capacity up to 2000 kg/h, stainless steel pump head as single-acting immersion piston, 82 mm, max. stroke length 60 mm, equipped with suction + pressure valve, driven by D-motor 220/380 V, 2.2 kW, 2820 rpm, 50 Hz, achieving 100 strokes/min, stroke length adjustable electrically from 0-60 mm via D-brake motor 0.25 kW, 1350 rpm, double-walled pump housing, can be heated with hot water or low-pressure steam, flange connection for pressure + suction side NW 40/ND 10; space requirement: 1000 x 600 x 700 mm high
Capacity: from 0 to 2000 kg/h
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 577 |
| Last activity | May 8, 2026 |
Piston Dosing Pump
Capacity up to 2000 kg/h, stainless steel pump head as single-acting immersion piston, 82 mm, max. stroke length 60 mm, equipped with suction + pressure valve, driven by D-motor 220/380 V, 2.2 kW, 2820 rpm, 50 Hz, achieving 100 strokes/min, stroke length adjustable electrically from 0-60 mm via D-brake motor 0.25 kW, 1350 rpm, double-walled pump housing, can be heated with hot water or low-pressure steam, flange connection for pressure + suction side NW 40/ND 10; space requirement: 1000 x 600 x 700 mm high
Capacity: from 0 to 2000 kg/h
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| ------------------- | |
| Length x width x height | 1000.0 × 600.0 × 700.0 |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | SPXFLOW TECHNOLOGIE Normados N-D 41 |
| Last availability date | 05/05/2026 |
This SPXFLOW TECHNOLOGIE Normados N-D 41 piston dosing pump, manufactured in 1979, is designed for precise dosing applications with a capacity of up to 2000 kg/h. The pump features a stainless steel pump head configured as a single-acting immersion piston with a screw diameter of 82 mm and a maximum adjustable stroke length of 60 mm. Stroke length adjustment is electrically controlled via a D-brake motor, allowing for fine-tuning between 0 and 60 mm. The pump is equipped with both suction and pressure valves to ensure reliable operation.
The drive system includes a D-motor rated at 2.2 kW operating at 220/380 V, 2820 rpm, and 50 Hz, capable of achieving 100 strokes per minute. The pump housing is double-walled, allowing for heating with hot water or low-pressure steam to maintain optimal fluid temperature during operation. Flange connections are provided for both the pressure and suction sides, sized NW 40/ND 10.
The overall footprint of the unit measures approximately 1000 mm in length, 600 mm in width, and 700 mm in height. The pump assembly is mounted on a metal base plate for stability. Visual inspection reveals the presence of an electric motor mounted horizontally with a cooling fan housing on top, as well as an attached hydraulic pump or motor unit. The machine shows signs of wear, including surface rust and dirt on metal parts, which should be taken into consideration during evaluation.
This dosing pump is suitable for applications requiring controlled and adjustable fluid dosing with the capability to handle heating requirements, making it a versatile component for various industrial processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 577 |
| Last activity | May 8, 2026 |
