| Manufacturer | SPINNER |
|---|---|
| Model | TC 600-65MC |
| Year | 2015 |
| Location | Germany
|
This SPINNER TC 600-65MC CNC turn-mill centre, manufactured in 2015, is designed for precision machining with a 4-axis configuration. It features a Siemens 840D control system, known for its reliability and advanced functionality. The machine is equipped with a single turret that holds up to 16 tools, allowing for versatile and efficient machining operations.
The main spindle delivers a power of 24 kW and can reach speeds up to 4000 rpm, suitable for a wide range of turning tasks. It supports a maximum turning diameter of 310 mm and a swing diameter over the bed of 425 mm. The length between centers is 600 mm, providing ample workspace for various workpieces. The X-axis has a travel of 230 mm, while the Z-axis offers 740 mm of movement.

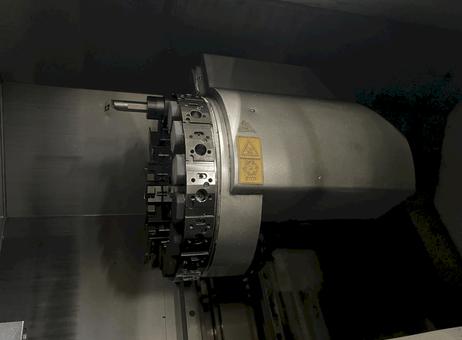

The machine measures 2730 mm in length, 1440 mm in width, and 1620 mm in height, with a total weight of approximately 4200 kg. It includes a tool turret with multiple tool holders, which shows some signs of wear but remains intact. The exterior of the machine exhibits signs of use and some dirt marks, indicating prior operation.

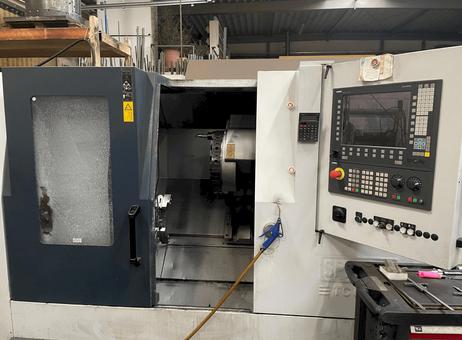

Additional features include a control panel with a screen, buttons, and knobs located on the right side for user-friendly operation. A panoramic window with protective mesh or frosted glass is integrated into the left door, enhancing visibility into the work area while maintaining safety. An air gun is attached to the front of the machine, providing convenient access for cleaning and maintenance tasks.
This SPINNER TC 600-65MC is suitable for manufacturers seeking a robust and versatile CNC lathe with milling capabilities. For further details or inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis SPINNER TC 600-65MC turn-mill centre was manufactured in 2015, featuring a Siemens 840D control system and a 16-position indexing turret. It includes a main spindle with a speed of up to 4,000 rpm and a power of 24 kW. The machine offers a swing diameter over bed of 425 mm and a maximum turning diameter of 310 mm. Consider the opportunity to buy this SPINNER TC 600-65MC turn-mill centre. Contact us for more information about this machine.
Measurements width: 1440
Measurements depth: 2730 x x
Measurements height: 1620 mm
Machine weight: 4200 kg
Brand: SIEMENS
Model: 840D-SolutionLine
Spindle speed range: 4500
Spindle motor power: 11 kW/ 16.5 kW
Number of axis: 4
X-Axis Movement: 230 mm
X-Axis Rapid Traverse: 15 m/min
Z-Axis Movement: 740 mm
Z-Axis Rapid Traverse: 24 m/min
Workpiece drm over bed: 425 mm
Number of turrets: 1
Tool taper: DIN 69880/30 mm
Pinol diameter: 80 mm
Number of station: 12
Oil tank: 30 liters
Full splash guard cladding + coolant unit
Work area light + pneumatic equipment
Panoramic window for optimum visibility into the work area
Center distance: approx. 600 mm
Max turning diameter: 310 mm
Torque: main spindle (fanuc, s6 40%) 178 nm, main spindle (siemens, s6 40%) 301 nm
Quill stroke: 120 mm
Adjustment travel: 475 mm
Speed of rotating tools: 6000 1/min
Driven tool power: (fanuc, 30 min) 3. 7 kw, (siemens, 40%) 6. 0 kwMedia
Pneumatics max. operating pressure: 10 bar
Normal pressure: 6 bar
Hydraulics max. operating pressure: 30 bar
Control Unit
Control system: Standard Siemens 840D, Option Fanuc 21i
Operating voltage: 400 V
Mains frequency: 50/60 Hz
Control voltage: 24 V DC
Interfaces: USB, Ethernet, SPINNER-UNIMAG bar feed (electric)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
