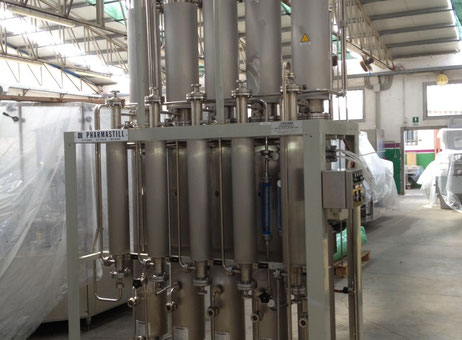

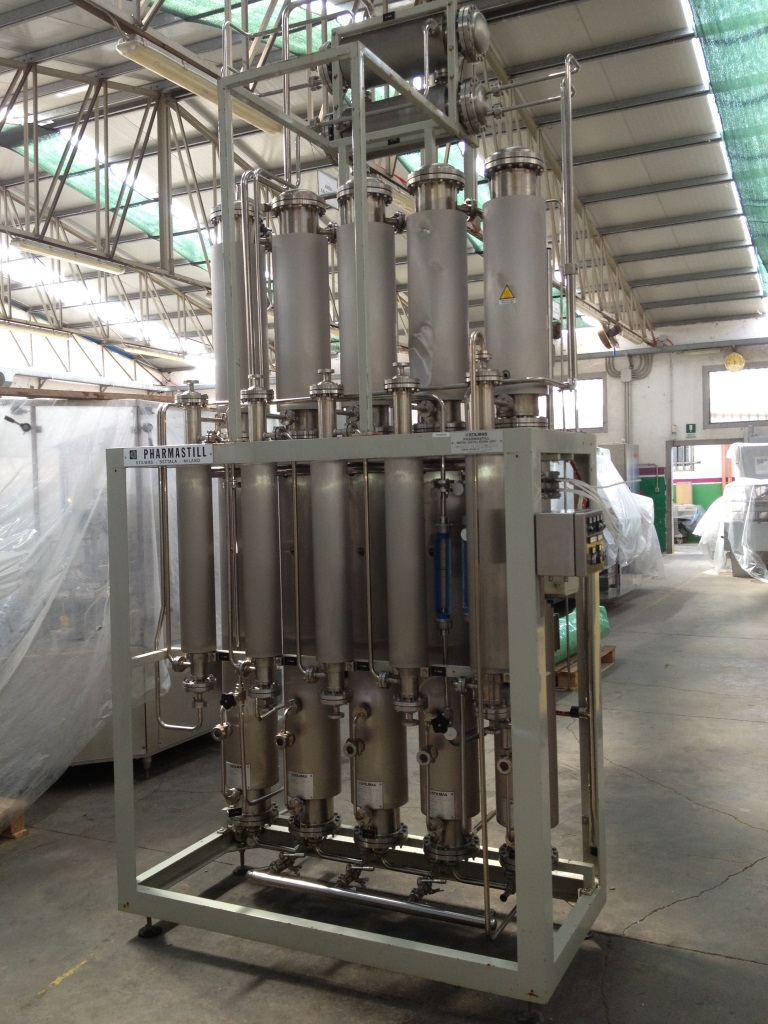

Stilmas PHARMASTILL MS 205S

- steam heated up to max. 8 bar, - output from 240 litres/hour at 3 bar, - up to 420 litres/hour at 8 bar,

Stilmas Pharmastill MS 205S Multi-Stage Distillation unit , steam heated up to max. 8 bar, output from 240 litres/hour at 3 bar, up to 420 litres/hour at 8 bar, year 1991

DESCRIPTION: Multiple effect distiller equipment. The Pharmastill multiple effect Stills produce distilled water for injectable use which meets the requirements of the International Pharmacopeias including USP, EP and JP. A complete system of sanitary heat exchanger for energy recovery and a very accurate and optimized design grant the best performance in terms of energy/cold water consumption, compared to any other similar system. The Pharmastill modular construction offers a wide choice of configurations allowing optimum payback times. Standard models range is from 60 to 22.000 lts/h output. SECTORS OF USE: Pharmaceutical, chemical, cosmetics, food, dietary, medical devices. MAIN FEATURES: The water introduced in the generator gets warmed by the heat exchanger. In the first coloumn, further heated by the industrial steam, it gets partially evaporated, this is the beginning of the multiple effect distillation process. The steam and the water non-evaporated follow their way to the next effect where the process is repeated at a higher temperature and pressure. The product distilled by the condensation of the pure vapor passes to the preheater. The same cycle is repeated in every coloumn. The steam which is produced during the last effect becomes condensed and cooled down. Rapid start up. The distillate is …
