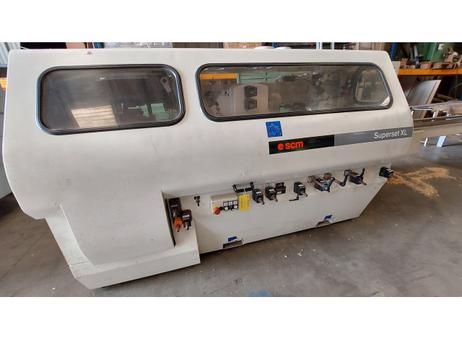

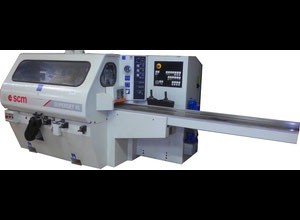

SCM Superset XL

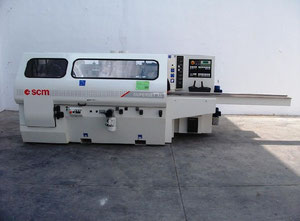

Specifications (5) Head (B,R,L,T,B), Working capacity 9-1/16” x 4-3/4” Head sequence: Bottom 12 HP, Right 9 HP, Left 9 HP, Top 18 HP, Bottom 12HP Mechanical brakes on all motors 1-13/16” spindle with cutterhead speed of 6,000RPM Mechanical digital readouts all spindles Included chipbreaker & pressure element Pressure element split at top spindle with shoe adjustment Pneumatic chipbreaker for top spindle 2 HP variable feed drive with feed speed from 16-100 FPM Infeed table 2 M ( 6-6" ) with automatic waxilit pump Side pressure roller mounted to infeed table Includes: (10) Cutter heads Voltage: 460/60/3 Phase

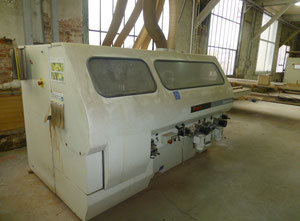

Composition 6: 1) planer 7.5 hp motor - brake motors from 3 hp to 10 hp 2) shaft vertocale dx 7.5 hp motor - brake motors from 3 hp to 10 hp 3) vertical shaft sx 7.5 hp motor - brake motors from 3 hp to 10 hp 4) upper horizontal shaft engine 10 hp - brake motors from 3 hp to 10 hp 5) horizontal shaft engine lower hp 7.5 - brake motors from 3 hp to 10 hp 6) the universal tree - brake motors from 3 hp to 10 hp Features: - Pneumatic exclusion from the group framework for progress - Plan entry mm. 2500 - Hour counter service - Counter with zeroing - Lugrificazione centrallizzata manual - Interior lighting hood - Automatic pump for lubrication of the plane - Horizontal presser before the plane flush with exclusion - Presser vertical shoe - Pressure shoes front and rear

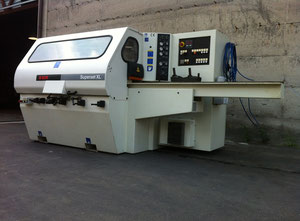

6 DOORS TOOLS 5 + UNIVERSAL SHAFT TOUPIE PROGRAMMABLE YEAR 2009 EC hooded

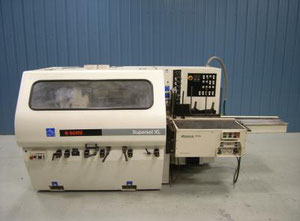

Max working width: 250 mm Max working height: 160 mm Feeding speed: from 4 to 24 mt/min Engine power: 6 HP Shafts diam: 40 mm

Electric: 460 volt 60 cycle 3 phase

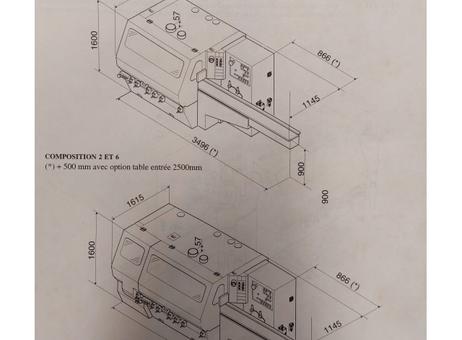

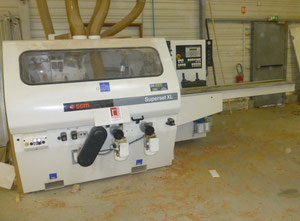

composition 5

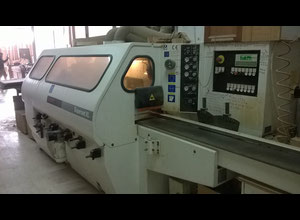

Trees 5 + Universal SCM moulder Superset XL 5 + 1

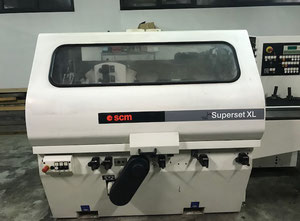

four side moulder, 6 heads, all widths

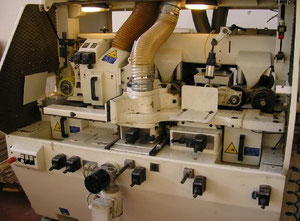

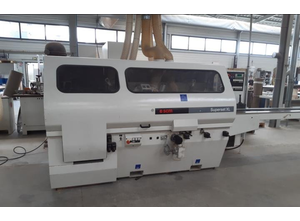

Automatic Moulder SCM SUPERSET XL 2 Towing with oil bath gears and universal joints Pneumatic separate feed pressure with triple control circuit continuously adjustable speed from place to drive through work motorized roller on the exit plan Quick setup registration for point "SETUP" Width min. max working 25 -230 mm Height min. max work 6 -120 mm Minimum single piece length 450 mm Advance 3 HP speed 5 to 25 m / min 3 planer spindle motors, vertical right and universal 5.5 HP; Vertical Top 7.5 HP left and horizontal Diameter 40 mm Length trees vertical useful 180 mm, 250 mm horizontal Axial adjustment of vertical spindles 80 mm hor. 45 mm Min / max diameter corded planer 120/140 mm Min / max diameter profiling tools mm 100/200 Length of infeed table 2500 mm quick adjustment plan and entry guide 10 mm Kit for the minimum working width from 25 mm to 15 mm Pump for automatic lubrication of the plan Manual centralized lubrication interior lighting roof EC rules

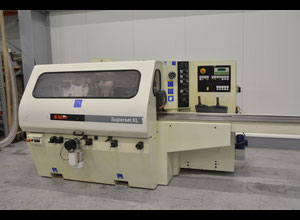

Automatic Moulder SCM SUPERSET XL 2 Towing with oil bath gears and universal joints Pneumatic separate feed pressure with triple control circuit continuously adjustable speed from place to drive through work motorized roller on the exit plan Quick setup registration for point "SETUP" Width min. max working 25 -230 mm Height min. max work 6 -120 mm Minimum single piece length 450 mm Advance 3 HP speed 5 to 25 m / min 3 planer spindle motors, vertical right and universal 5.5 HP; Vertical Top 7.5 HP left and horizontal Diameter 40 mm Length trees vertical useful 180 mm, 250 mm horizontal Axial adjustment of vertical spindles 80 mm hor. 45 mm Min / max diameter corded planer 120/140 mm Min / max diameter profiling tools mm 100/200 Length of infeed table 2500 mm quick adjustment plan and entry guide 10 mm Kit for the minimum working width from 25 mm to 15 mm Pump for automatic lubrication of the plan Manual centralized lubrication interior lighting roof EC rules
