Schiess Froriep FB 180

Manufacturer	Schiess Froriep
Model	FB 180
Category	Borers - floor type boring machines CNC

Details - Schiess Froriep FB 180

Specifications

CNC	HeidenHain iTNC530
X travel	18500 mm
Y travel	4500 mm
Z travel	900 mm
Table length	20000 mm
Table width	4200 mm
Max. workpiece weight	15000 kg
Spindle taper	ISO 60
Spindle diameter	180 mm
Max. spindle speed	1000 rpm
Spindle motor power	74 kW
Overhauled	no
Year of overhauling	2007
-------------------
Length x width x height	26000.0 × 12000.0 × 7000.0
Weight	110000 kg

Schiess Froriep 1 FB 180 CNC floor type boring machine Sold

Netherlands

CNC	iTNC 530
Y travel	4500 mm
Table length	2200 mm
Spindle diameter	180 mm

X travel	18500 mm
Z travel	900 mm
Table width	2200 mm
Overhauled	no

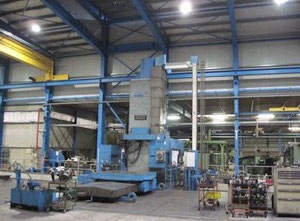

Schiess - Froriep 1 FB 180 Floor type boring machine CNC Sold

France 1987

length	26000 mm
weight	11000 kg
X travel	18500 mm
Z travel	900 mm
Table width	2200 mm
Spindle taper	ISO 60
Max. spindle speed	1000 rpm

height	8900 mm
CNC	Heidenhain iTNC530
Y travel	4500 mm
Table length	4100 mm
Max. workpiece weight	45000 kg
Spindle diameter	180 mm
Spindle motor power	85 kW

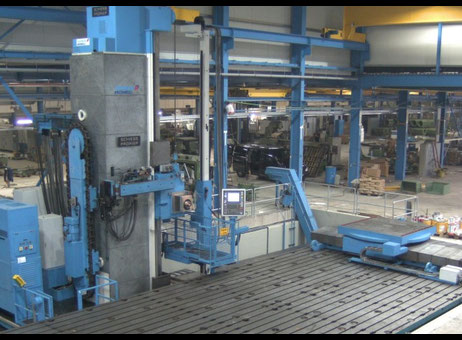

Schiess Froriep 1 FB 180 RAM Floor type boring machine CNC Sold

Netherlands 1987

length	26000 mm
height	8890 mm
X travel	18500 mm
Z travel	900 mm
Table width	2250 mm
Spindle taper	ISO 60
Max. spindle speed	1000 rpm
Overhauled	yes

width	8570 mm
CNC	Heidenhain iTNC 530
Y travel	4500 mm
Table length	2250 mm
Max. workpiece weight	40000 kg
Spindle diameter	180 mm
Spindle motor power	85 kW
Year of overhauling	2007

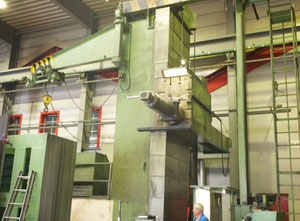

Schiess Froriep FB 180 Floor type boring machine CNC Sold

Switzerland 1973

CNC	HEIDENHAIN 415
Y travel	5500 mm
Table length	17000 mm
Spindle taper	ISO 60
Max. spindle speed	2200 rpm
Overhauled	no

X travel	12500 mm
Z travel	1400 mm
Table width	2000 mm
Spindle diameter	180 mm
Spindle motor power	74 kW

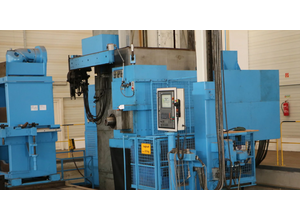

SCHIESS FRORIEP - 1FB180 CNC Horizontal borer 18500 x 4500 x 950 x 900 mm iTNC530 Sold

Netherlands 2006

Z axis	950 mm

Table length	900 mm

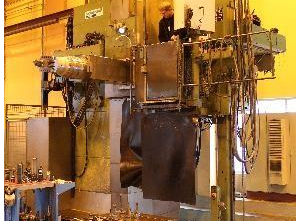

SCHIESS-FRORIEP 1 FB 180 Floor type boring machine CNC Sold

Germany 1986

CNC	HEIDENHAIN TNC 530
Y travel	3000 mm
Table width	3000 mm
Max. spindle speed	4000 rpm

X travel	15500 mm
Table length	3000 mm
Spindle taper	ISO 50
Spindle motor power	85 kW

SCHIESS FRORIEP 1FB180 Floor type boring machine CNC Sold

Netherlands 2006

length	26000 mm
height	7000 mm
CNC	HeidenHain iTNC530
Y travel	4500 mm
Table length	20000 mm
Max. workpiece weight	15000 kg
Max. spindle speed	1000 rpm

width	12000 mm
weight	110000 kg
X travel	18500 mm
Z travel	900 mm
Table width	4200 mm
Spindle taper
Overhauled	no

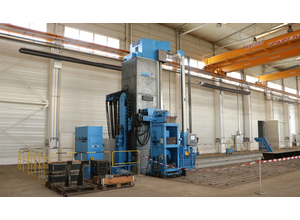

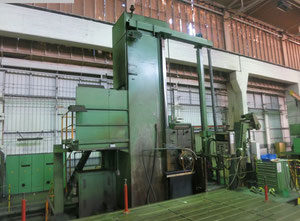

SCHIESS FRORIEP 1FB180 Floor type boring machine CNC Sold

France

CNC	SIEMENS SINUMERIK SYSTEM 3
Y travel	4000 mm
Spindle motor power	75 kW

X travel	8000 mm
Spindle diameter	60 mm
Overhauled	no

SCHIESS FRORIEP 1FB180 Floor type boring machine CNC Sold

Netherlands 2006

length	26000 mm
height	7000 mm
CNC	HeidenHain iTNC530
Y travel	4500 mm
Table length	20000 mm
Max. workpiece weight	15000 kg
Max. spindle speed	1000 rpm

width	12000 mm
weight	110000 kg
X travel	18500 mm
Z travel	900 mm
Table width	4200 mm
Spindle taper
Overhauled	no
