Mazak QT NEXUS 350 II M

Manufacturer	Mazak
Model	QT NEXUS 350 II M
Category	Lathes - CNC lathes

CNC Lathes QT NEXUS 350 II M MAZAK Sold

Czech Republic 2008

Max. Turning length 1538 mm Max. swing diameter: 750 mm Max. swing diameter over support: 530 mm Max. turning diameter : 420 mm Main Spindle: Spindle bore 112 mm Turning speed range 25 - 4000 Rpm Output: 30 kW Max. torque: 724 Nm Chuck diameter: 304 mm C axis: 0° - 360° in 0.001° Turret head: Number of tools: 12 places Boring bar clamping range: 12/15/16/20/25/32/35/40/50 mm Morse: MK-2/ MK-3/ MK-4 Driven tools: 4 pcs. Horizontal tools 4 pcs. Vertical tools Output: 7,5 kW Max. torque: 93 Nm Turning speed range: 25- 4000 Rpm Max. borer diameter: 23 mm Screw: M 16 (horizontal), M 12 (vertical) Tailstock travel: 1580 mm Machine Weight ca. 7,9 t Dimensions of the machine ca. 4,3 x 2,2 x 2,0 m Control System: MAZATROL PC Fusion CNC 640T NEXUS

Used MAZAK QT NEXUS 350 II M Cnc lathe Sold

Czech Republic 2008

Max. Turning length 1538 mm Max. swing diameter: 750 mm Max. swing diameter over support: 530 mm Max. turning diameter : 420 mm Main Spindle: Spindle bore 112 mm Turning speed range 25 - 4000 Rpm Output: 30 kW Max. torque: 724 Nm Chuck diameter: 304 mm C axis: 0° - 360° in 0.001° Turret head: Number of tools: 12 places Boring bar clamping range: 12/15/16/20/25/32/35/40/50 mm Morse: MK-2/ MK-3/ MK-4 Driven tools: 4 pcs. Horizontal tools 4 pcs. Vertical tools Output: 7,5 kW Max. torque: 93 Nm Turning speed range: 25- 4000 Rpm Max. borer diameter: 23 mm Screw: M 16 (horizontal), M 12 (vertical) Tailstock travel: 1580 mm Machine Weight ca. 7,9 t Dimensions of the machine ca. 4,3 x 2,2 x 2,0 m Control System: MAZATROL PC Fusion CNC 640T NEXUS

Used MAZAK NEXUS QTN 350. Cnc Lathe, w/ Mazatrol Matrix Control Sold

USA 2007

length	4048.8 mm
height	1999 mm
Spindle bore	111.8 mm
Tailstock	no

width	2032 mm
Spindle taper	A2-11
Turning speed	3300 rpm
Bar feeder	no

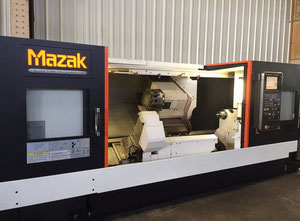

MAZAK QT NEXUS 450 II M cnc lathe Sold

France 2014

length	6200 mm
height	2100 mm
Turning Ø	580 mm
Length between centers	2000 mm
X-axis	310 mm
Number of turrets	12
Spindle motor power	37 kW
Bar feeder	no

width	2240 mm
weight	10800 kg
Ø above the bed	846 mm
Type of CNC	MAZATROL MATRIX NEXUS 2
Z-axis	2120 mm
Turning speed	2000 rpm
Tailstock	no

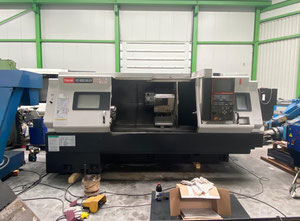

Mazak NEXUS 350 II M cnc lathe Sold

Netherlands 2007

length	4800 mm
height	2200 mm
Turning length	1500 mm
Type of CNC	MATRIX NEXUS
Z-axis	1600 mm
Turning speed	4500 rpm
Tailstock	no

width	2400 mm
weight	7500 kg
Turning Ø	680 mm
X-axis	350 mm
Spindle bore	102 mm
Spindle motor power	30 kW
Bar feeder	no

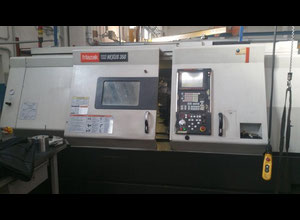

MAZAK QT NEXUS 350 Cnc lathe Sold

France 2007

Turning Ø	420 mm
Ø above transversing slide	102 mm
X-axis	30 mm
Spindle bore	112 mm
Tailstock	no

Ø above the bed	304.8 mm
Length between centers	1250 mm
Z-axis	25 mm
Turning speed	3300 rpm
Bar feeder	no

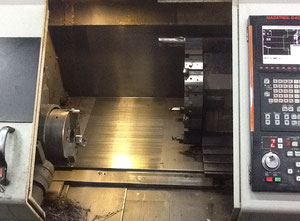

MAZAK QT NEXUS 350 cnc lathe Sold

France 2006

Turning Ø	680 mm
Type of CNC	Mazatrol PC Fusion
Z-axis	1615 mm
Spindle bore	112 mm
Turning speed	3300 rpm
Tailstock	no

Length between centers	1500 mm
X-axis	225 mm
Spindle taper	A2-11
Number of turrets	12
Spindle motor power	30 kW
Bar feeder	no

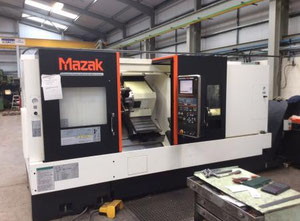

Used Mazak QTN Nexus 350 II MY cnc lathe Sold

United Kingdom 2012

Turning Ø	420 mm
Bar feeder	no

Tailstock	no
