Juaristi TS1

Manufacturer Juaristi
Model TS1
Category Borers - table type boring machines CNC

Here is a selection of similar machines

CNC Heidenhain TNC 355
X travel 4000 mm
Y travel 1500 mm
Z travel 1100 mm
Table length 2000 mm
Table width 1500 mm
Max. workpiece weight 5000 kg
Spindle diameter 125 mm
Max. spindle speed 2300 rpm
Spindle motor power 37 kW
Overhauled no
Year of overhauling 2015
-------------------
Length x width x height 7500.0 × 7000.0 × 4500.0
Weight 29000 kg

Here is a selection of similar machines


Similar machines sold on Exapro

Used CNC Table Type Boring-Milling Machine JUARISTI TS1
Used CNC Table Type Boring-Milling Machine JUARISTI TS1 Sold

Year: 1993

YOM: 1993 CNC Control: Heindenhain TNC 355 Spindle diameter 125 mm Internal Taper: ISO 50 Hollow shaft nose: ISO 60 mm 221,44 Speeds range: (2 ranges) 12 – 2300 rpm 12 – 570 rpm Vertical traverse: 2000 mm Cross traverse: 4000 mm Longitudinal traverse: 1900 mm Spindle stroke max: 600 mm Max workpiece lenght at rotation table: 4600 mm Table surface: 1200 x 1500 mm Max weight allowed on the table: 5000 kg Feeds longditudinal/cross/vertical 0 - 3000 mm/min Rapid …

Price on request

PL Poland


Used JUARISTI TS 1 Cnc table type boring machine
Used JUARISTI TS 1 Cnc table type boring machine Sold

Year:

Price on request

FR France

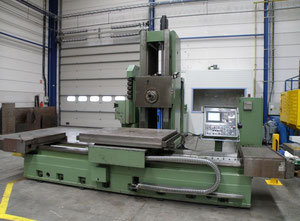

JUARISTI TS1 CNC table type boring machine
JUARISTI TS1 CNC table type boring machine Sold

Year: 1989

Spindle diameter (mm): 125 Taper: ISO 50 Horizontal Spindle Travel (mm): 600 Cross Travel (X) (mm): 3000 Vertical Travel Headstock (Y) (mm): 1500 Longitudinal Travel (Z) (mm): 1100 Table (mm): 1200 x 1500 Max. Load: 5 Ton R.P.M. Spindle: 12 - 2300 kW: 45 Volts: 380V Cycles: 50 Including: Automatic tool Changer (40 positions) Chip Conveyor Coolant Attachment Spindle Support

Price on request

BE Belgium

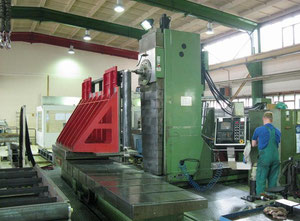

Used Juaristi TS1 CNC table type boring machine
Used Juaristi TS1 CNC table type boring machine Sold

Year: 1991

Control: CNC Heidenhain TNC 355, Year: 1991, 2013 renovation, very good condition Additional comments: spindle diameter 125 mm passage transverse axis X 4000 mm max length of the workpiece on the rotary table 4600 mm passage in the Y-axis - up - down 2000 mm eject the spindle 600 mm drive Z 1750 mm spindle taper ISO 50 Spindle speed 12 - 2300 U / min surface of the rotary table 1500 x 2500 mm spindle power 37 kW feeds …

Price on request

PL Poland

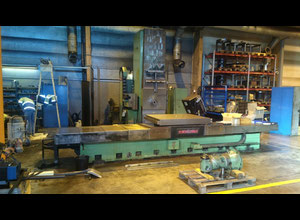

Used Juaristi TS1 Table type boring machine CNC
Used Juaristi TS1 Table type boring machine CNC Sold

Year: 1993

Manufacturer: JUARISTI Model: TS 1 Condition: Very good. The machine works. Year of manufacture: 1993 Control: CNC Heidenhain TNC 355 Technical details : Spindle diameter: 125 mm X-travel: 4000 mm Y-travel: 2000 mm Max. workpiece length on the table: 4600 mm Tool magazine: 40 Table: 1250 x 1250 mm Max. workpiece weight: 5 T Spindle taper: ISO 50 Machine dimension: 7500 x 7000 x 4500 mm + Angle head

Price on request

PL Poland

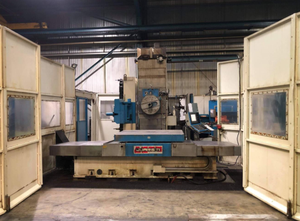

Juaristi TS1 Table type boring machine CNC
Juaristi TS1 Table type boring machine CNC Sold

Year: 2005

Brand Juaristi Model TS1 CNC Heidenhain itnc 530 Year 2005 Pallet dimension 1250x1600 mm permissible weight 6t T-slot width 22 mm for M2 X axis travel 2000 mm Y axis travel 1600 mm Z axis travel 1475 mm Shaft travels W 600 (Ø125) mm B axis 360,000 ° Tool magazine 40 stations ISO50 spindle Speed ranges 2 (max. 3000 rpm) OPTIONAL: -U axis plate for machining in turning mode -Adapter Ø600 capto C8 on plate.

Price on request

ES Spain

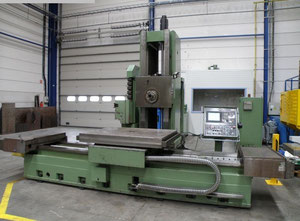

Juaristi TS1 Table type boring machine CNC
Juaristi TS1 Table type boring machine CNC Sold

Year: 1989

spindle diameter 125 mm x-travel 3000 mm y-travel 1500 mm control Heidenhain TNC 355 taper ISO 50 w-axis 600 mm Table dimensions 1200 x 1500 mm table load 5 t spindle turning speed range 12 - 2300 U/min voltage 380 V

Price on request

DE Germany


JUARISTI TS1 CNC floor type boring machine
JUARISTI TS1 CNC floor type boring machine Sold

Year:

Price on request

ES Spain
